Skyzone SKY04X

The SKYZONE SKY04X is the first SKYZONE Goggle for RC airplane racing drones with focus adjustment, the 1280*960 high-resolution screen has vivid color and high contrast ratio, and the pilot can see more details in the racing.

04X V2 FPV Goggle offers a superior experience with 60 frames-per-second, 1280x960 OLED resolution, and 48-channel 5.8GHz transmission. With its built-in Steadyview Receiver and comfortable design, you can enjoy clear, stable video and improved image latency, which supports HDzero or Fatshark. With a V3.3 Steadyview receiver, the receiver merges two signal into one, avoid image tearing and rolling, and make the image more stable and clear in challenging condition. The new sky 04x designed optics have a focus adjustment feature and 46 degrees Field of view, giving pilots a more immersive FPV experience. The new SKYZONE Google 04x OS with 10 languages to set select, the pilot has no trouble with the menu system, and with the shuttle wheel and new user interface, the pilot can set all the settings just by rolling the wheel without taking off the goggles.

Features:

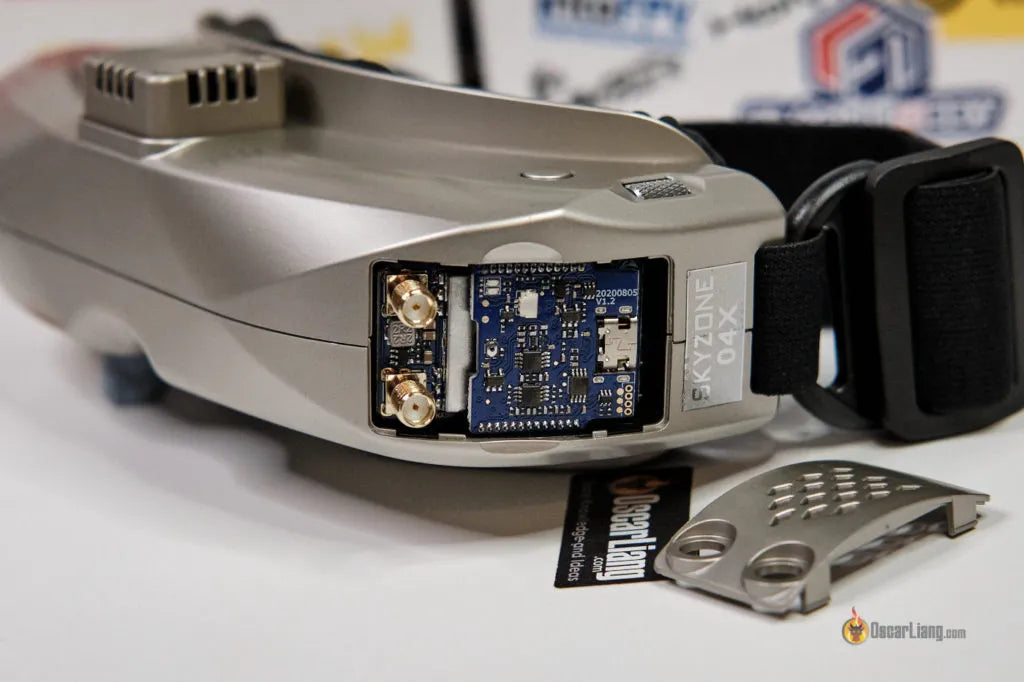

• SteadyView receiver merges two signals into one, making the image more stable and clear in challenging conditions.
• Module bay, goggles have more capability to upgrade.
• Focus Adjustment, The new Optics have a large Field of View (46 degrees). and the Optics have a Focus adjustment feature (-6~+6), no need diopter anymore.
• OELD Screen, The 1280*960 screen has high resolution and vivid color, high contrast ratio, so pilots can see more details.
• Advanced Screen Settings, The aspect ratio can is switchable, and 4 Preset screen settings and 3 customized settings for indoor, and outdoor flight, or different weather.
• Shuttle Wheel Control, No more confusing multi-function button or 5-way Joy stick, with smooth and natural shuttle control, easy to navigate.
• New User Interface with 10 languages, New UI with shuttle wheel, easy to navigate, 10 languages to choose from for local users.
• 60FPS DVR, support HDzero or Fatshark
• Built-in DVR

Specifications:

Screen: OLED
Resolution: 1280X960
FOV (Diagonal): 46°
Aspect Ratio: 4:3/16:9
Focus: -6~+6 adjustable
Interpupillary distance(IPD): 58-71mm
Receiver: 5.8Ghz 48CH V3.3 Steadyview Receiver
Language: 10 Language
Power Supply: DC6.5-25.2V/USB5V
Power Consumption: 720mAat12V
DVR: H264, 60fps, MOV6Mbps, SD Card support up to128Gb
Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
Dimensions: 185*75*67mm
Weight: 267g

Package Included:

1x SKY04X V2 Goggles
1x Steadyview Receiver Module
2x Faceplate (wide and narrow)
1x Sponge with velcr0
1x Zipper case
1x Power cable
1x Headtracker cable
2x 5.8GHz 2dB antennas
1x Video/Audio Cable
1x USB-C Cable
1x SKY04x User Manual

SKY04X USER MANUAL(Click to download)
