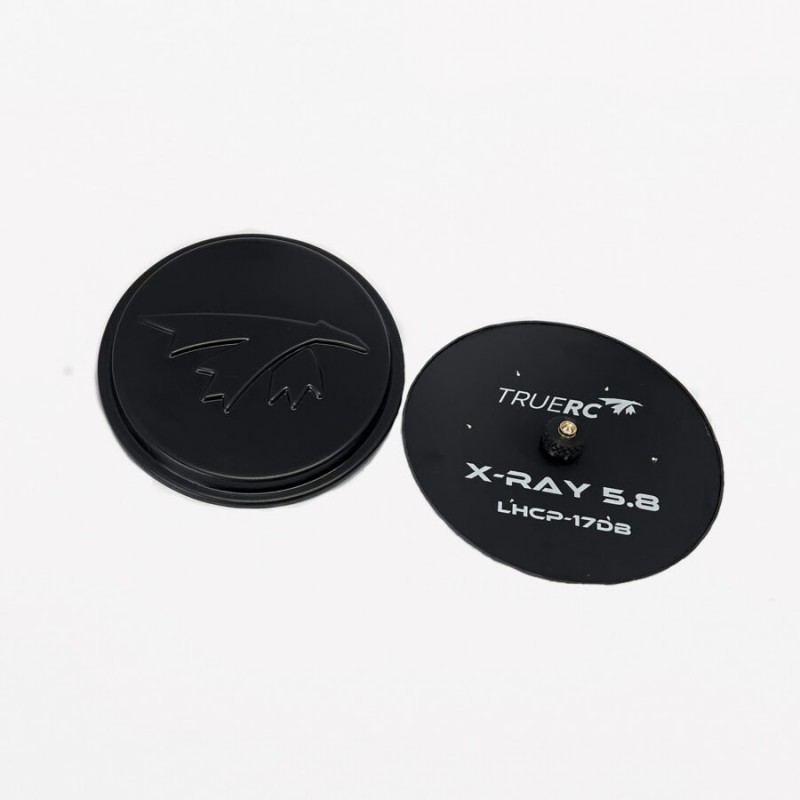

TrueRC X-Ray 5.8
The X-RAY 5.8 is a new development of our X-AIR technology. A single feed panel format with very low side lobes, maximizing main lobe efficiency.
Compra seguro. Usamos plataformas de pago seguras. Para garantías o reembolsos contáctanos.
Envío rápido. 24/48 horas España. 3-7 días internacional.
Política de devoluciones. Lea nuestros términos y condiciones.
Descripción

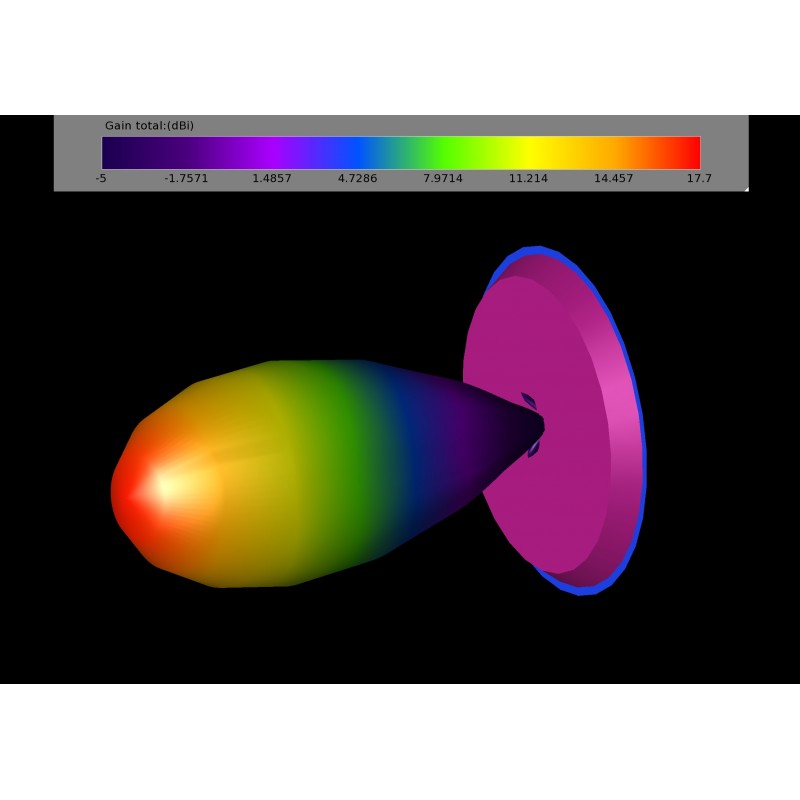

The X-RAY 5.8 is a new development of our X-AIR technology. A single feed panel format with very low side lobes, maximizing main lobe efficiency. Achieving up to 18dBic over a single element in a simple clean and thin format, the X-RAY is the physical expression of TrueRC’s design philosophy.
Features
- Very low side lobes and excellent front to back ratio.
- Excellent axial ratio and efficiency over a large bandwidth
Specs
- Frequency: 5.4-6GHz ‘
- Gain: 17-18 dBic
- Polarization: RHCP or LHCP
- Beam-width*: 60deg
- Beam-width @-3dB**: 24deg.
- Connector: SMA
- Dimensions: 151mm dia. x 20mm
- Weight: xxg
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
