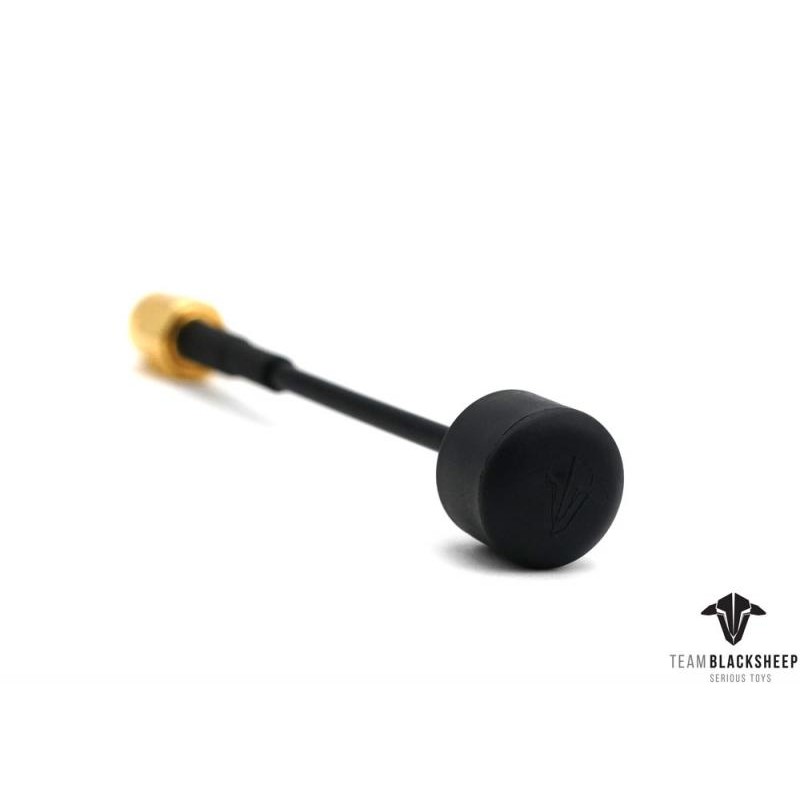

TBS Triumph Pro (SMA)
La próxima revolución en la tecnología circular de 5,8 GHz. El mismo ruido y rechazo a la reflexión que el TBS Triumph. Verdadera circularidad y gran alcance. Increíblemente pequeño y resistente. Diseñado por nada menos que IBCrazy.
Compra seguro. Usamos plataformas de pago seguras. Para garantías o reembolsos contáctanos.
Envío rápido. 24/48 horas España. 3-7 días internacional.
Política de devoluciones. Lea nuestros términos y condiciones.
Descripción
manufactured by TBS, the multi-phase elements use patent pending technology to create a precise circular pattern that is not distorted by proximity to your aircraft or other objects.

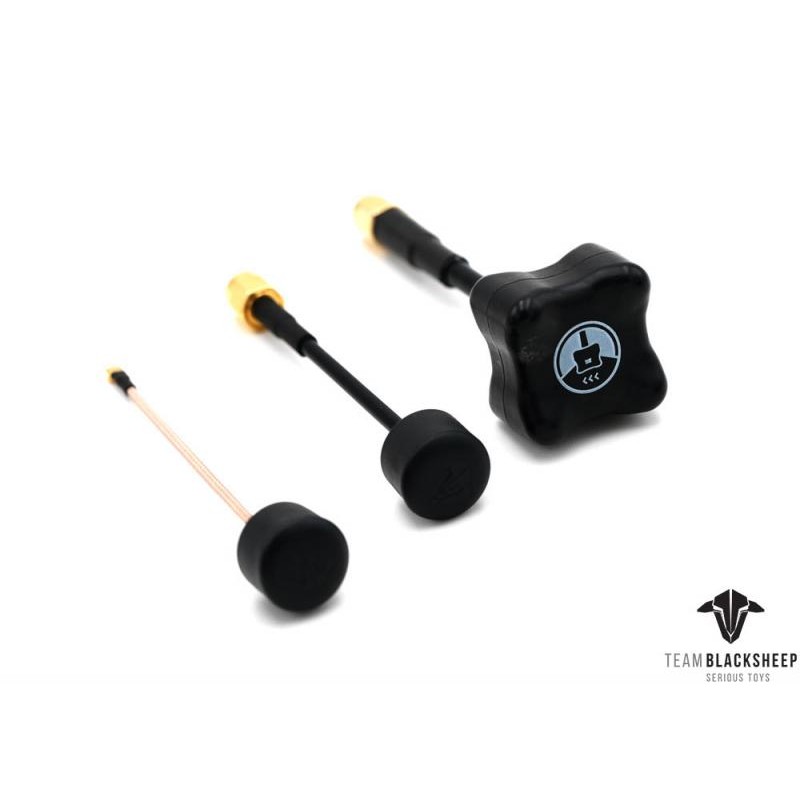

The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allow mounting in exposed places, where signal propagates better. The antenna comes in 4 connector flavors: u.FL, MMCX, MMCX 90º and SMA.
FEATURES:
- Manufactured and tested to highest standards
- Best in class range and signal quality
- Incredibly small and low weight
- Ultrasonic welded and foam infused cover for ultimate crash-protection
- Double-jacket semi-rigid cable for heavy impact resistance
TECHNICAL SPECIFICATIONS:
- Frequency range: 5500-6000MHz

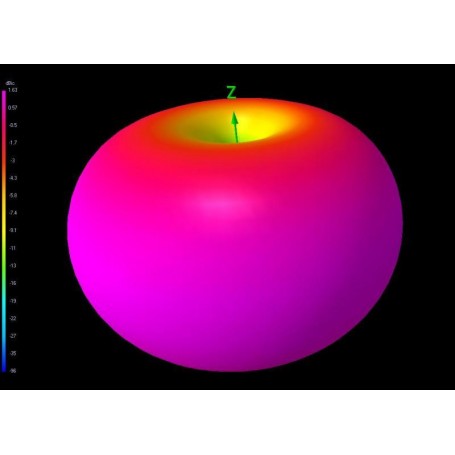

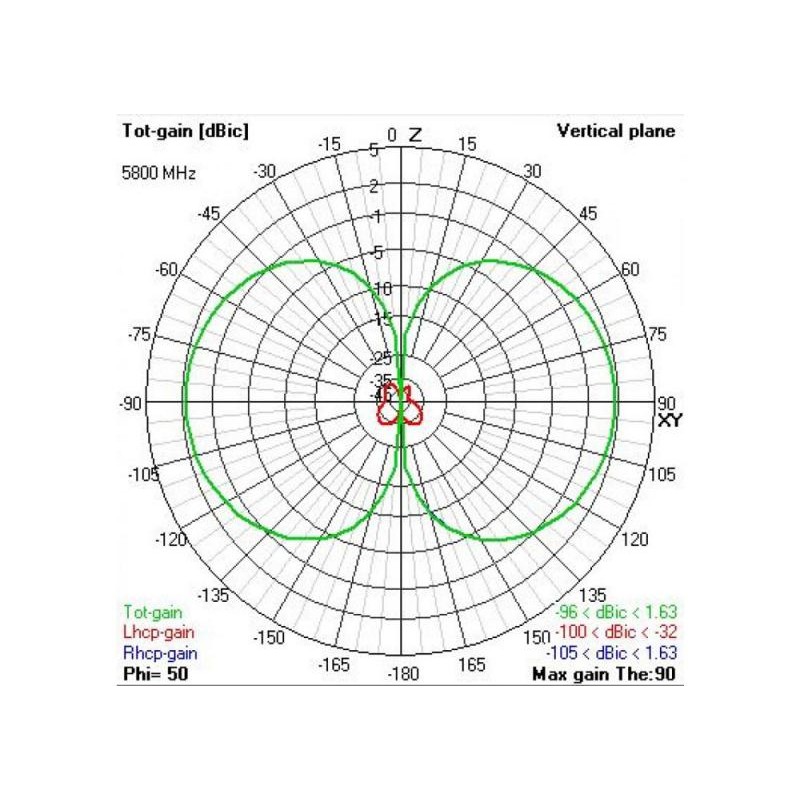

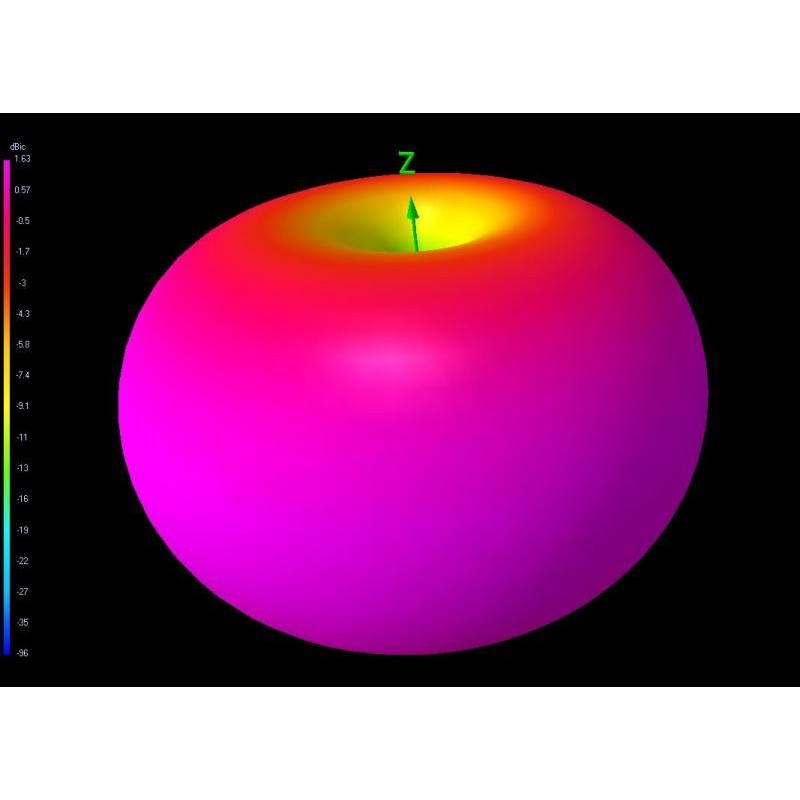

- Polarization: RHCP
- Gain: 1.6dbic
- Axial Ratio: 0.99
- Cable: RG405/U
- Weight: 2-3g
- Height: 85mm, 3.3 in
- Connector: SMA
- Dimensions (PDF)
PACKAGE CONTENTS:

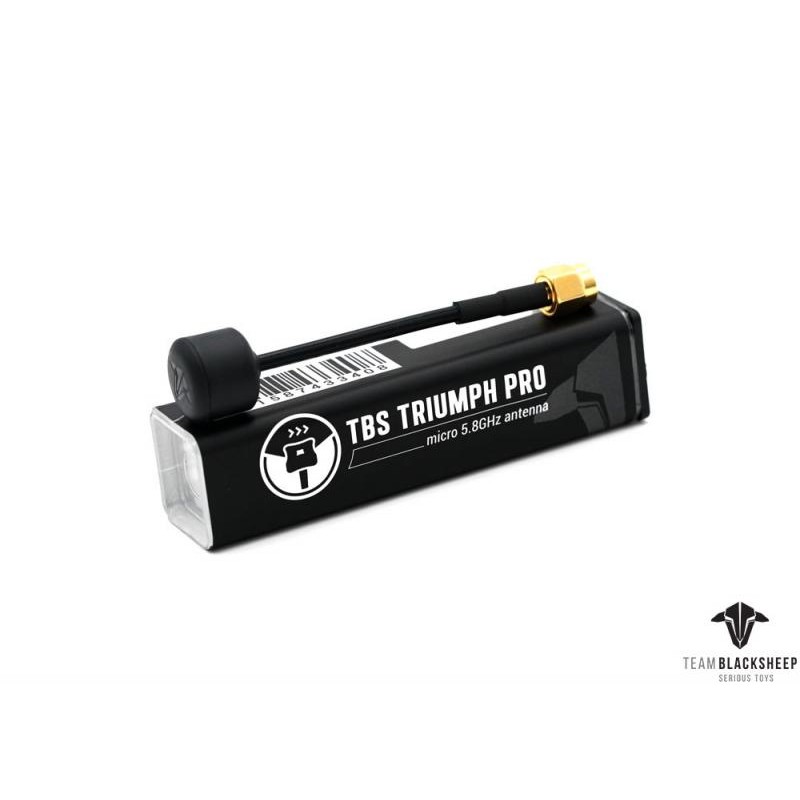

- 1x TBS Triumph Pro SMA
