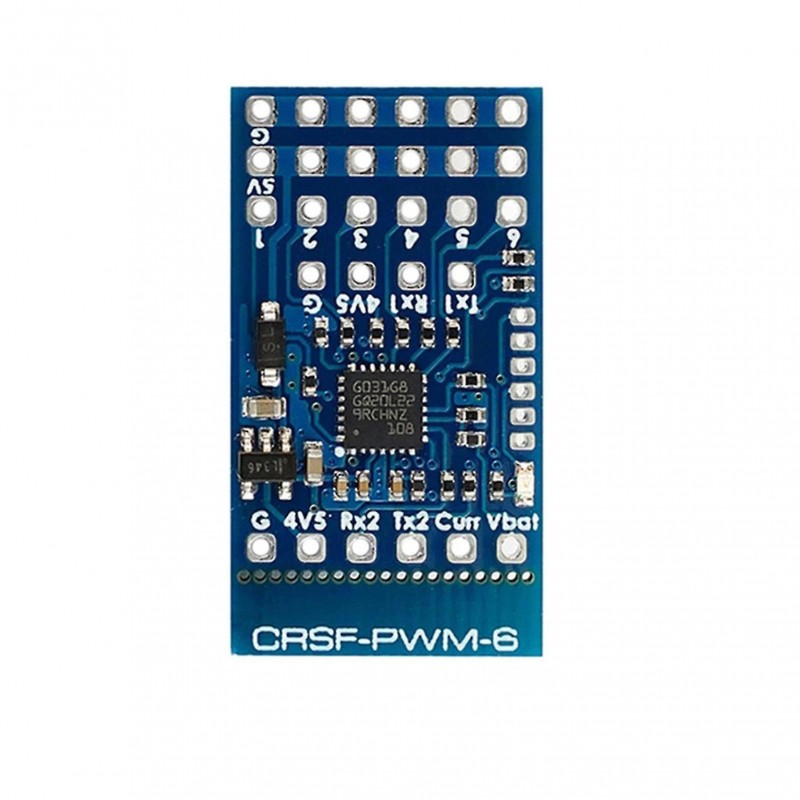

Mateksys CRSF to PWM Converter,CRSF-PWM-6
Compra seguro. Usamos plataformas de pago seguras. Para garantías o reembolsos contáctanos.
Envío rápido. 24/48 horas España. 3-7 días internacional.
Política de devoluciones. Lea nuestros términos y condiciones.
Descripción

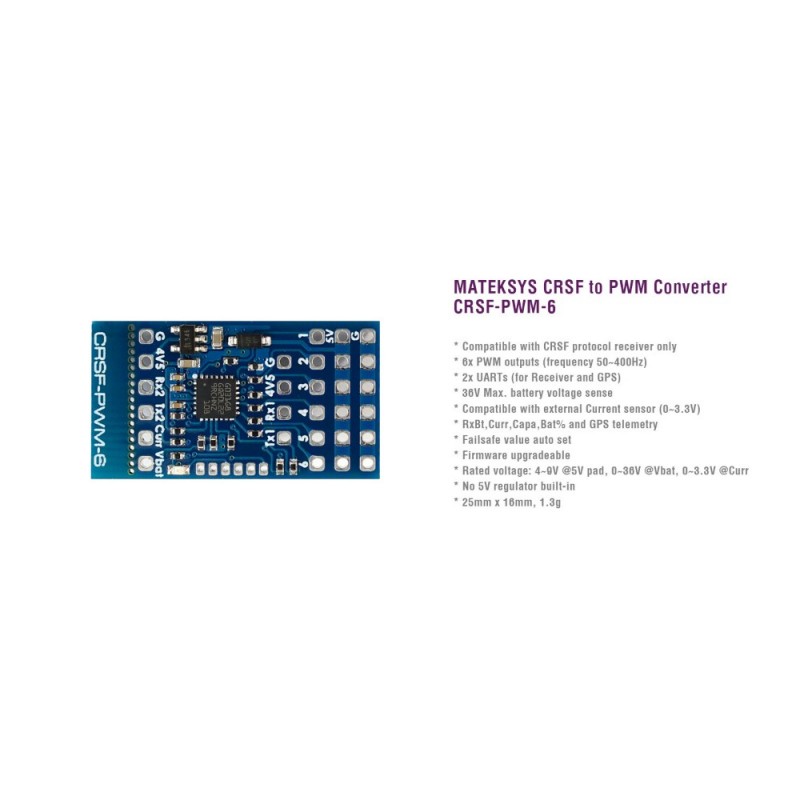

Specifications:
-
Compatible with CRSF protocol receiver only
-
Support any CRSF protocol receivers(including 433MHz, 868MHz, 915MHz, 2.4GHz)
-
6x PWM outputs
-
PWM frequency configurable (50Hz default, 100,160,330, 400Hz)
-
2x UARTs (for Receiver and GPS)
-
Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
-
36V Max. battery voltage sense (1K:10K voltage divider built-in)
-
Compatible with external Current sensor (0~3.3V)
-
Vbat and Current sensor scale configurable
-
Failsafe value auto set
-
Firmware upgradeable
-
Rated voltage: 4~9V @5V pad, 0~36V @Vbat, 0~3.3V @Curr
-
No 5V regulator built-in
-

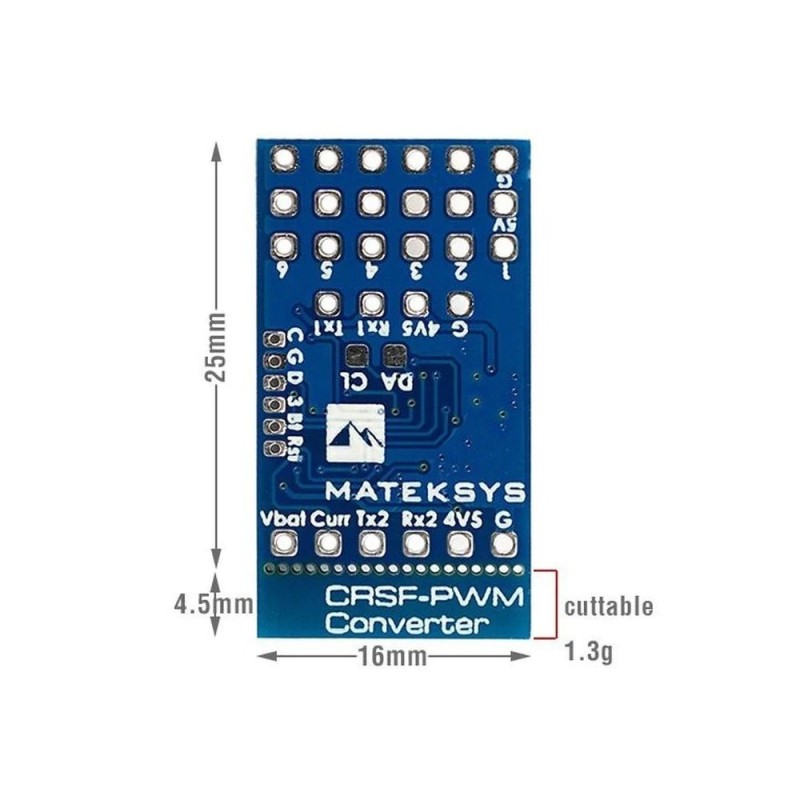

25mm x 16mm, 1.3g
