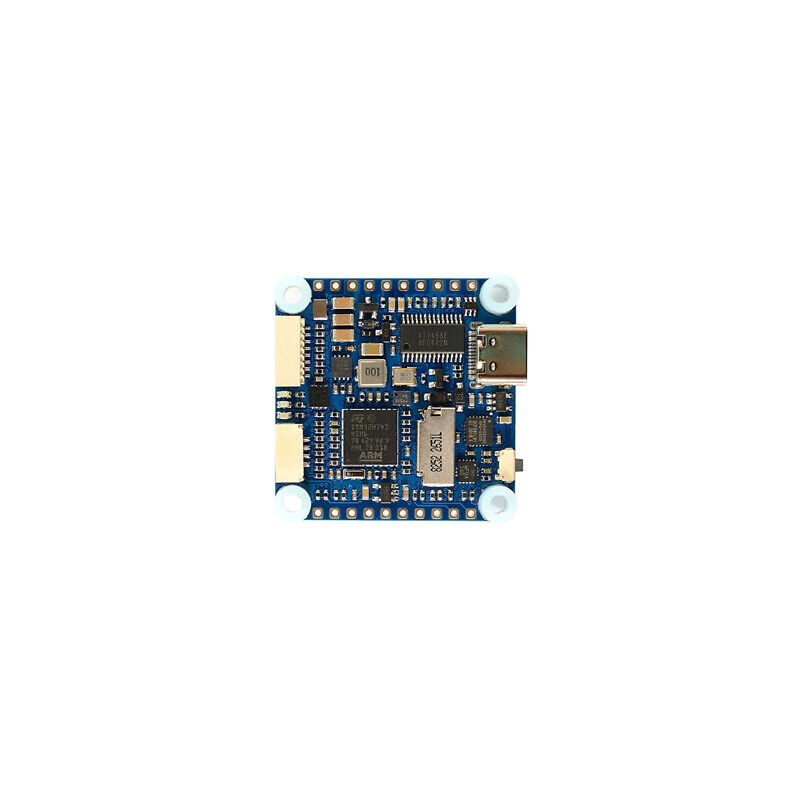

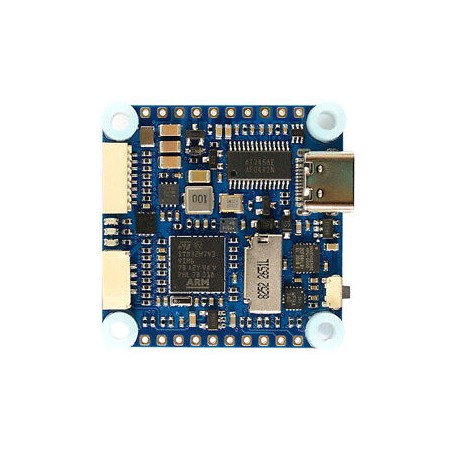

Matek H7A3-Slim Flight Controller

56,16 €

Impuestos incluidos

Cantidad

Subscribe To When In Stock

You have successfully subscribed to this product

Compra seguro. Usamos plataformas de pago seguras. Para garantías o reembolsos contáctanos.

Envío rápido. 24/48 horas España. 3-7 días internacional.

Política de devoluciones. Lea nuestros términos y condiciones.

Calcular Coste de Envío

Specifications

-MCU: STM32H7A3RIT6, 280MHz Cortex-M7, 1.4MB RAM, 2MB Flash

-IMU: ICM42688P

-Baro: SPL06-001

-OSD: AT7456E

-Blackbox: 128MB Flash (1G-bit NAND)

-6x Uarts (1,2,3,4, 5, 6) with built-in inversion.

-11x PWM outputs

-1x I2C

-1x CAN

-4x ADC (VBAT, Current, VB2, Cur2)

-3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

-USB Type-C(USB2.0)

-8x PWM outputs on 2x JST-SH1.0_8pin connector for 2x 4in1 ESC

-1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)

-9V output ON/OFF switchable

-Digital video OSD is supported by any spare UART

Power

-Vbat Input: 6~36V (2~8S LiPo)

-BEC: 5V 2A cont. (Max.3A)

-BEC: 9V 2A cont. (Max.3A)

-LDO 3.3V: Max.200mA

-No Current Sensor built-in

-ADC VB2 pad supports Max. 69V (voltage divider: 1K:20K)
