Radiomaster Ranger 2.4GHZ ExpressLRS RF Module

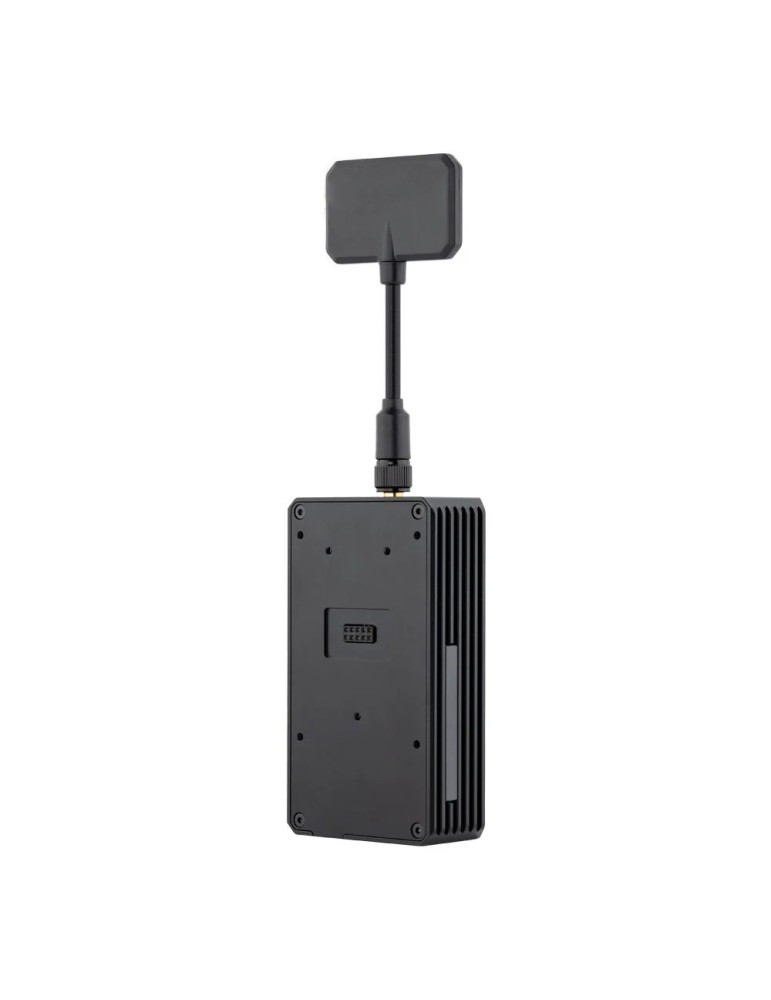

The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

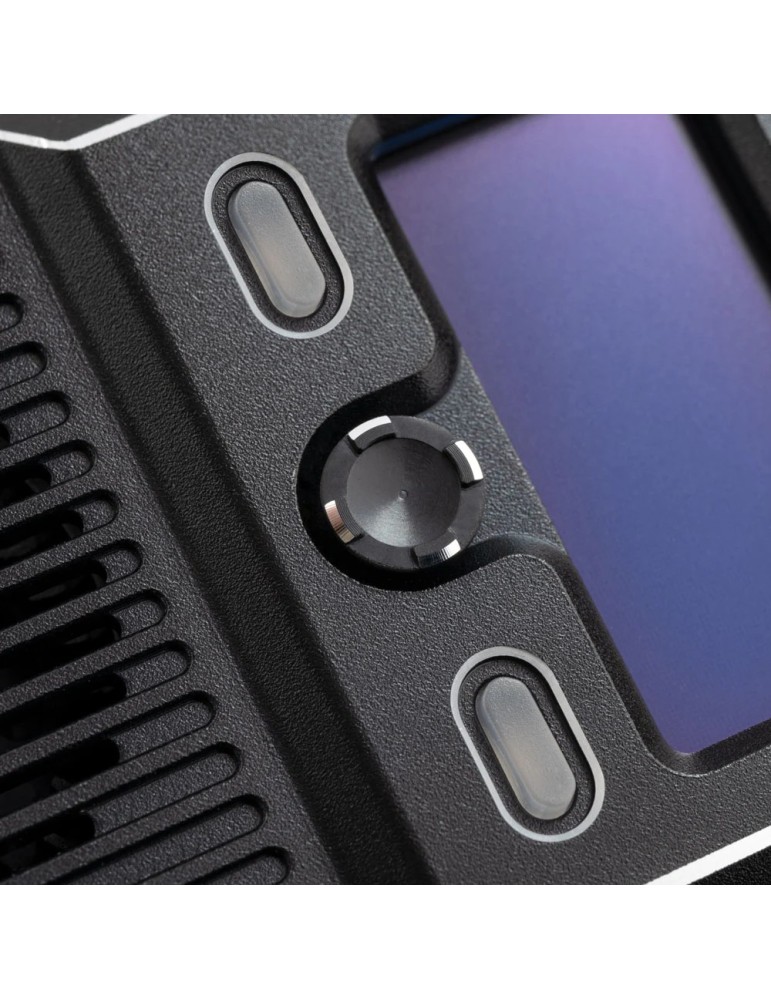

Featuring an OLED display, a directional menu key, and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.

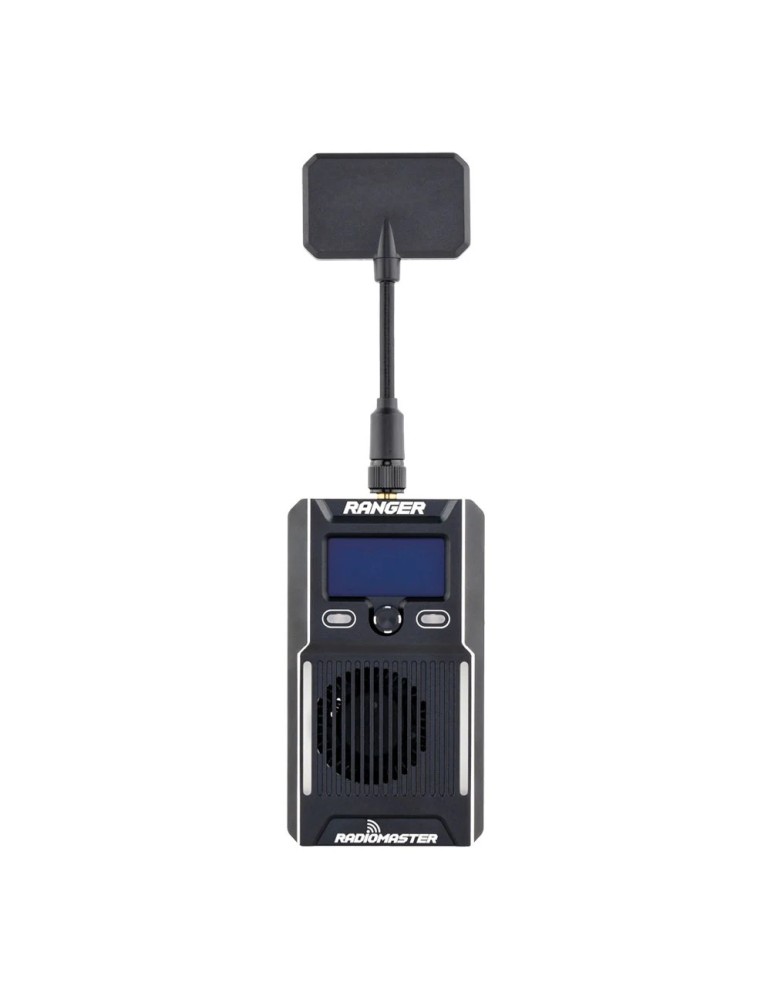

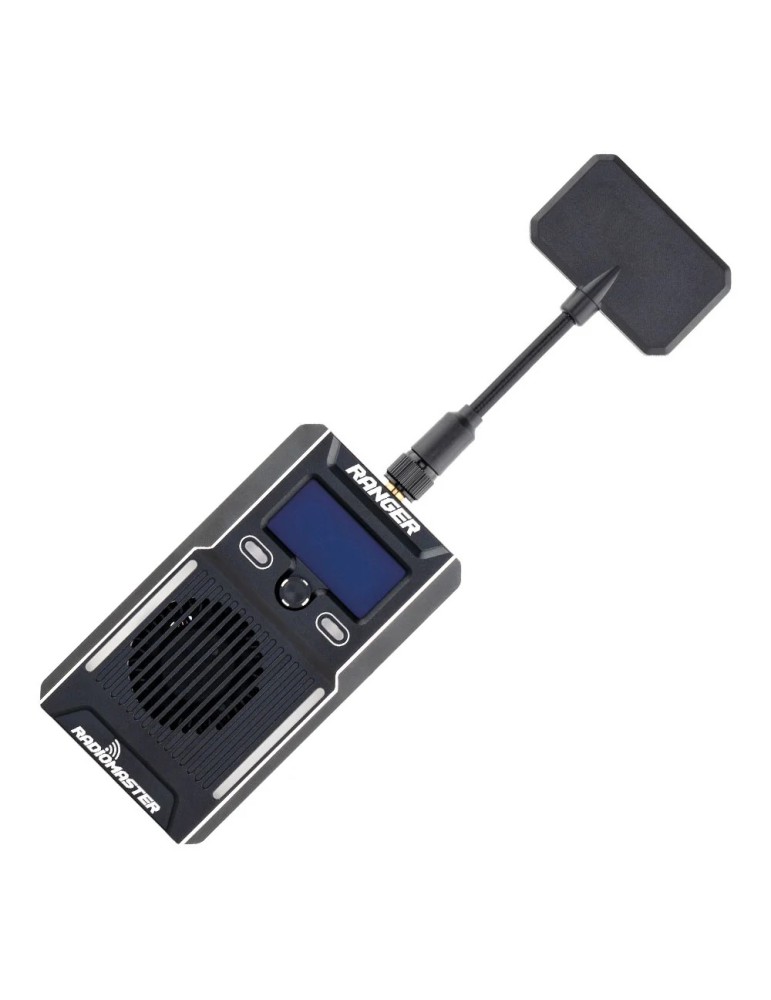

The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

Except for the Ranger, we also provide the Ranger Micro ExpressLRS Module and Ranger Nano ExpressLRS Module for your choice.

Features

Built-in ExpressLRS Backpack

OLED Display

Rugged CNC Case

Built-in Accelerometer

Packet rates up to F-1000Hz

Wifi and Bluetooth support

High-efficiency cooling system

5 Direction Nav key and customizable shortcut buttons

Micro and Nano adapters included

Moxon and T-antenna included

CRSF cable for compatible Futaba radios included

Specification

Item: Ranger 2.4GHz ELRS Module

Regulatory Domain: ISM2400

MCU: ESP32(main), ESP8285(aux, as ESP backpack)

RF chip: SX1281IMLTRT

Frequency Range: 2400 MHz - 2480 MHz

Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)

Minimum receiver refresh rate: 25Hz

Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket

Futaba CRSF socket cable: Included

OLED screen:  64x128px

Wifi Support: Yes

Bluetooth support: Yes

3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)

Built-in RGB light strip

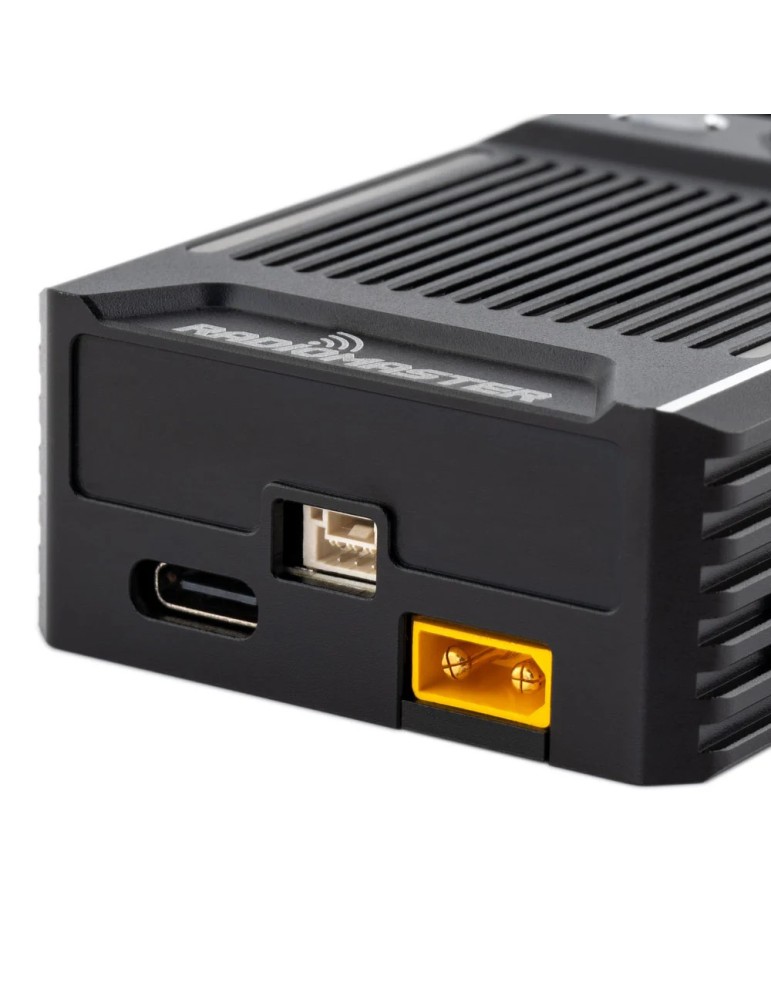

XT30 Power supply voltage: DC 6V - 16.8V

Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)

Dimension: 95*51*25mm (without antenna)

User Manual

Ranger User Manual

Ranger Series

We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/

Ranger 2.4GHz ELRS Module

Ranger Micro 2.4GHZ ELRS Module

Ranger Nano 2.4GHZ ELRS Module

2.4GHz T Antenna

2.4GHz Moxon Antenna

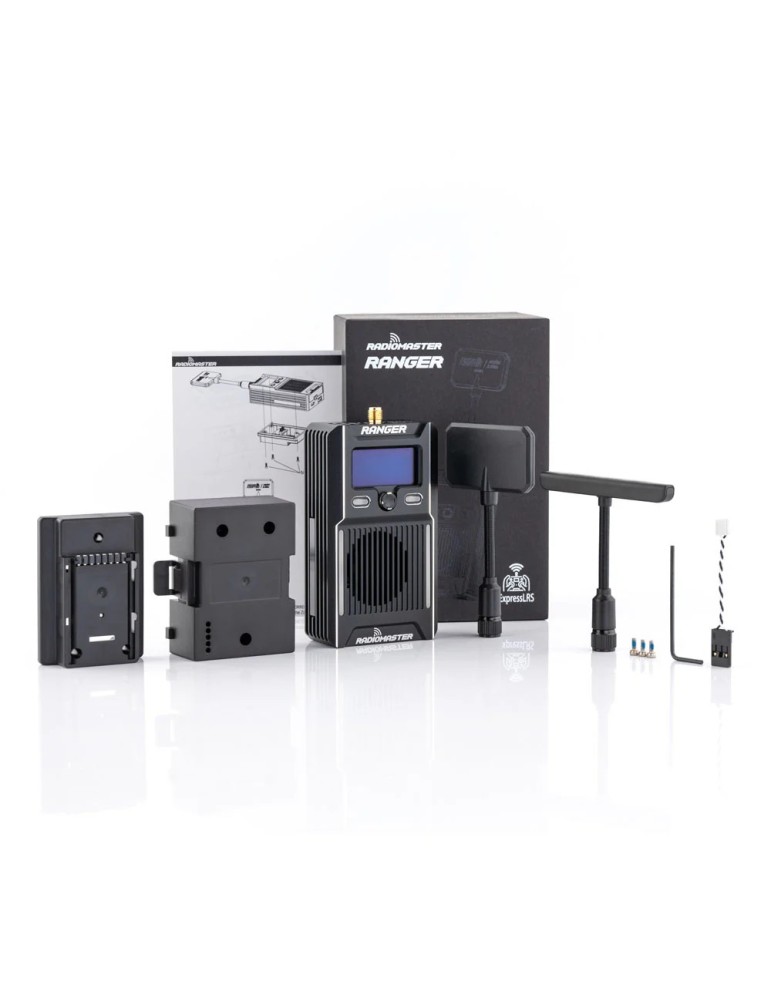

Package Includes

1 * RANGER Module

1 * Futaba CRSF socket cable

1 * JR Adapter

1 * Nano Adapter

1 * T Antenna

1 * Moxon Antenna

1 * Hexagon socket screwdriver

3 * M2*5 Screws

1 * Assembly Manual

Need receivers too? Purchase the Ranger Combo, which includes the following items:

2 * RP1 ExpressLRS 2.4ghz Nano Receiver

1 * RP2 ExpressLRS 2.4ghz Nano Receiver
