Matek GNSS & Compass, M10Q-5883
37,15 €

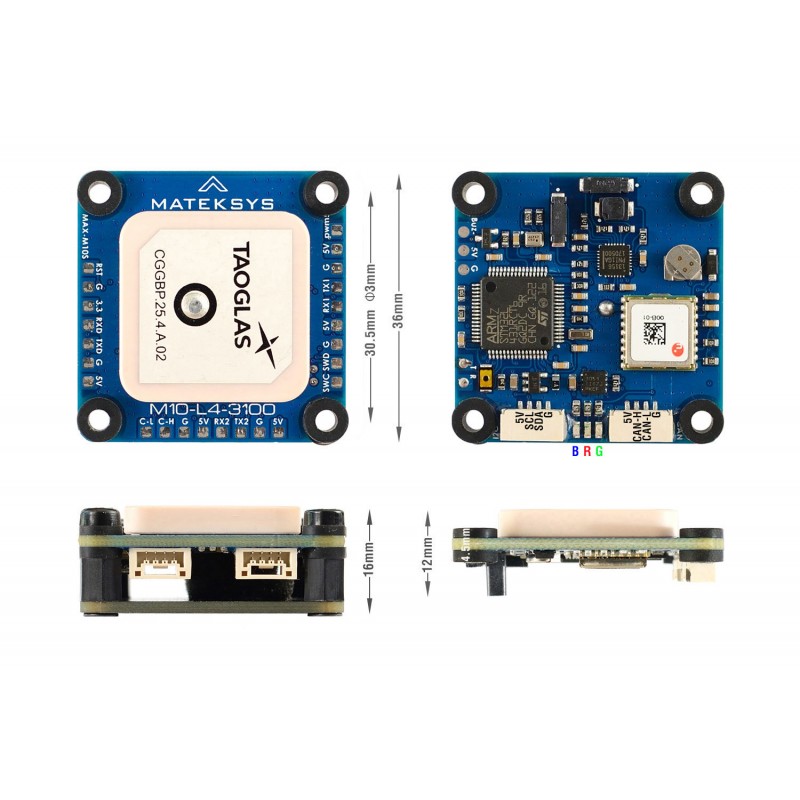

Matek GNSS M10-L4-3100
75,99 €
Impuestos incluidos
Subscribe To When In Stock
You have successfully subscribed to this product
Compra seguro. Usamos plataformas de pago seguras. Para garantías o reembolsos contáctanos.
Envío rápido. 24/48 horas España. 3-7 días internacional.
Política de devoluciones. Lea nuestros términos y condiciones.
Calcular Coste de Envío
Descripción
Specifications:
Ublox GNSS M10 series (GPS, GLONASS, Galileo and BeiDou), Magnetic Compass RM3100, Barometer SPL06-001Patch, GNSS Antenna 25*25*4mm MCU STM32L431RCT6 UART3, onboard M10 GNSS module UART2(TX2 RX2), MSP Protocol CAN, DroneCAN Protocol I2C JST-GH connector for external AirSpeed sensor CAN bootloader LED, Blue Fast blinking, Booting Slow blinking, working GNSS PPS LED, Green solid on after powering on blinking(1Hz) when GNSS has 3D fixed 3.3V LED, Red Input voltage range: 4.5~5.3V (5V pad/pin) Power consumption: 60mA Operating Temperatures: -20~80 °C 36mm*36mm*12mm 16g M10-L4-3100_step.zip
Firmwares: ArduPilot AP_Periph: MatekL431-GPS or MatekL431-Periph
Includes: 1x M10-L4-3100 2x JST-GH-4P to JST-GH-4P 20cm silicon wire Mounting base (1x PCB plate, 4x silicon grommets, 4x Nylon standoffs M3x7, 4x Nylon screws M3*8)
