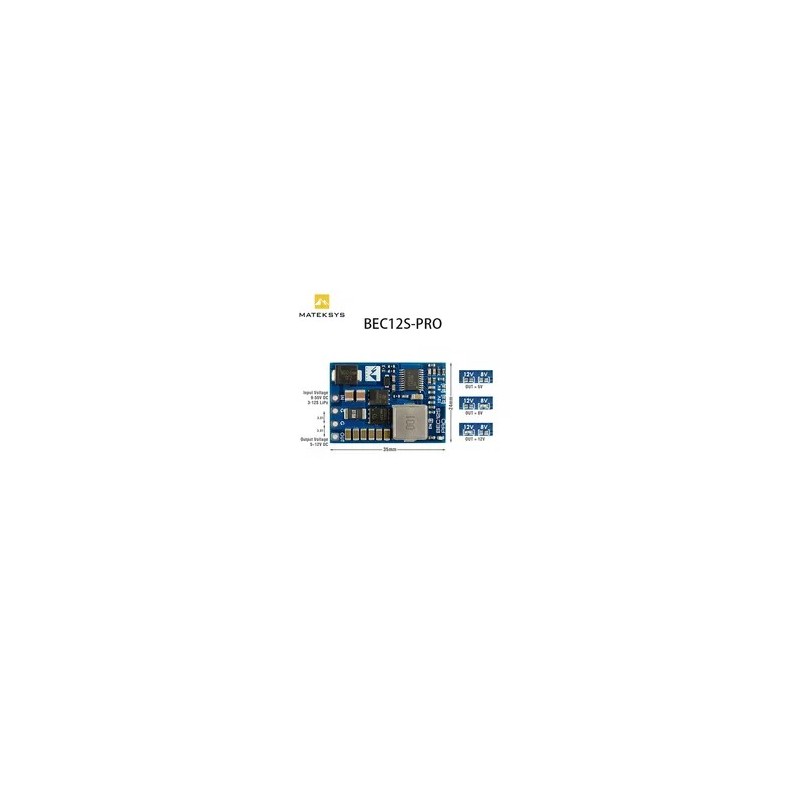

Mateksys BEC12S-PRO, 9-55V to 5/8/12V-5A
About this product
The MATEKSYS 12S Pro BEC features a wide 9-55V Operating Input Range, 3x Output Voltage Options 5V/8V/12V and Supports continuous output current of up to 5A, peak current of 9A. This voltage regulator also features a synchronous switching step-down (buck) regulator, thermal Shutdown, output Short-circuit tolerance (2 seconds), overcurrent protection & self-recovery and much more!
17,31 €
Impuestos incluidos
Subscribe To When In Stock
You have successfully subscribed to this product
Compra seguro. Usamos plataformas de pago seguras. Para garantías o reembolsos contáctanos.
Envío rápido. 24/48 horas España. 3-7 días internacional.
Política de devoluciones. Lea nuestros términos y condiciones.
Calcular Coste de Envío
Descripción
Specifications
- Output ripple: 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)
- Dropout voltage: 2V (Input>=14V is required for stable 12V output)
- Operating Input Range: 9V to 55V with TVS protection
- Output voltage options: 5.2V, 8V or 12V. Default 5.2V
- Buck regulator efficiency: 88% to 96%
- Standby current: 5~10mA
- Size: 35 x 24 x 5.5mm
- Pins distance: 3.81mm
- Packing: 1pc/package
- Weight: 5g
