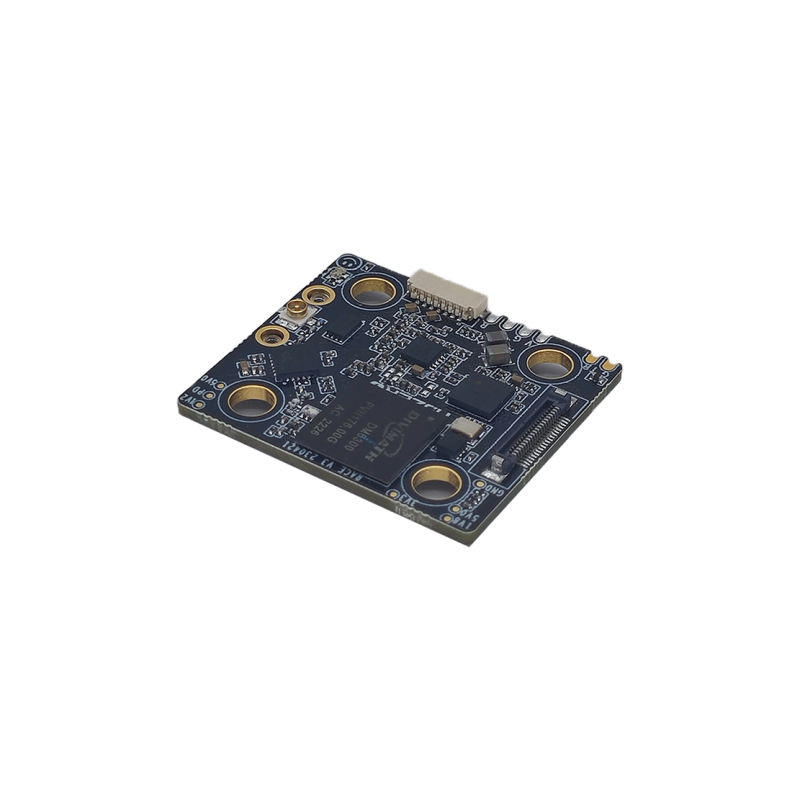

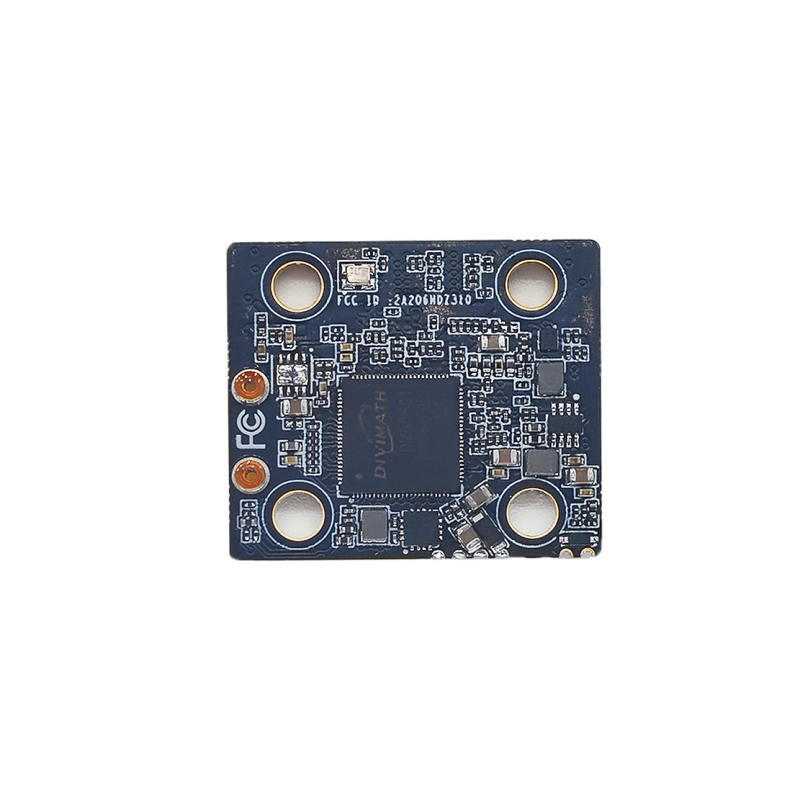

HDZero Race V3 VTX

HDZero Race V3 VTX

67,73 €
Impuestos incluidos
 En stock


Compra seguro. Usamos plataformas de pago seguras. Para garantías o reembolsos contáctanos.



Envío rápido. 24/48 horas España. 3-7 días internacional.



Política de devoluciones. Lea nuestros términos y condiciones.

Descripción

Designed for FPV racing, the HDZero Race V3 VTX is our 3rd generation digital video transmitter. With a voltage range starting at 4V, it can be powered by the 5V 1.5A regulator of most FC’s or up to 12V for FC’s that include a HD VTX plug. It is small (28x32x5mm) and light (5.5 grams). With a width of only 28mm, the VTX is now a similar width to many FC's, which improves durability and reduces weight. The antenna is securely attached with a metal bar and screws. No soldering needed – just plug the wire harness into a compatible HD-ready FC.



The HDZero Race V3 VTX is designed with durability in mind, rather than weight. It is made with a 1.6mm thick PCB, in comparison to the 1.0mm PCB used in the Whoop lite VTX. Moreover, it uses more large package size components for stability consideration. For the smaller components, an additional glue coating is applied to increase crash protection. The Race V3 VTX also has a reverse polarity protection circuit, which is not present in the Whoop lite VTX.



The HDZero Race V3 VTX offers high-quality video in 540p90, 720p60 and 1080p30 resolutions with 25/200mW switchable power on 5.8GHz.



Specifications





Model:

HDZero Race V3

SKU：

HDZ3143

Frequency:

5.725-5.850GHz

Resolution Default:

540p90/720p60/1080p30

RF power：

25mw/200mw

RF Connector:

Secured U.FL

Interface:

4 lane MIPI CSI YUV422

Video Connector:

20 Position 0.30mm Pitch

Size:

32mm x 28mm x 5mm

Weight:

5.5g

Harness length:

40mm

power input：

4V-12V

Mounting：

20mm x 20mm M4 with rubber grommets

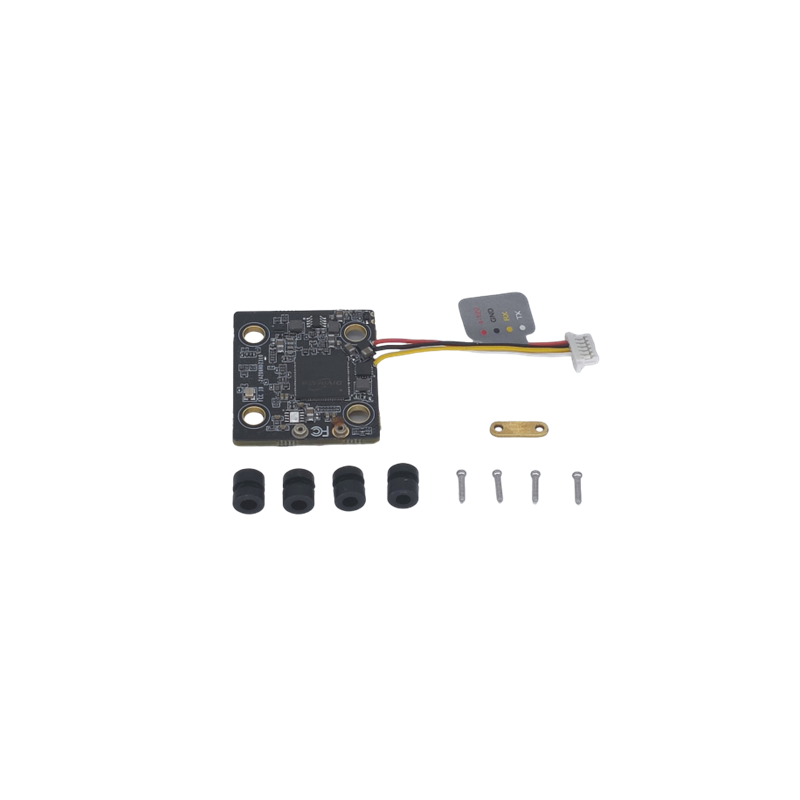

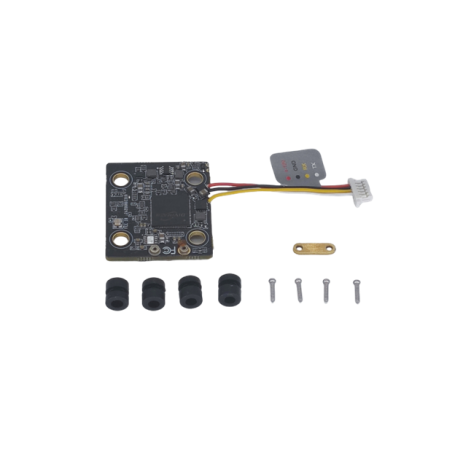

Includes



VTX-R3 board with pre-soldered harness * 1;

Rubber Grommet (M4 to M3) * 4；

u.FL Antenna Retention Screws * 4

Metal bar * 1

(HDZ3143)
