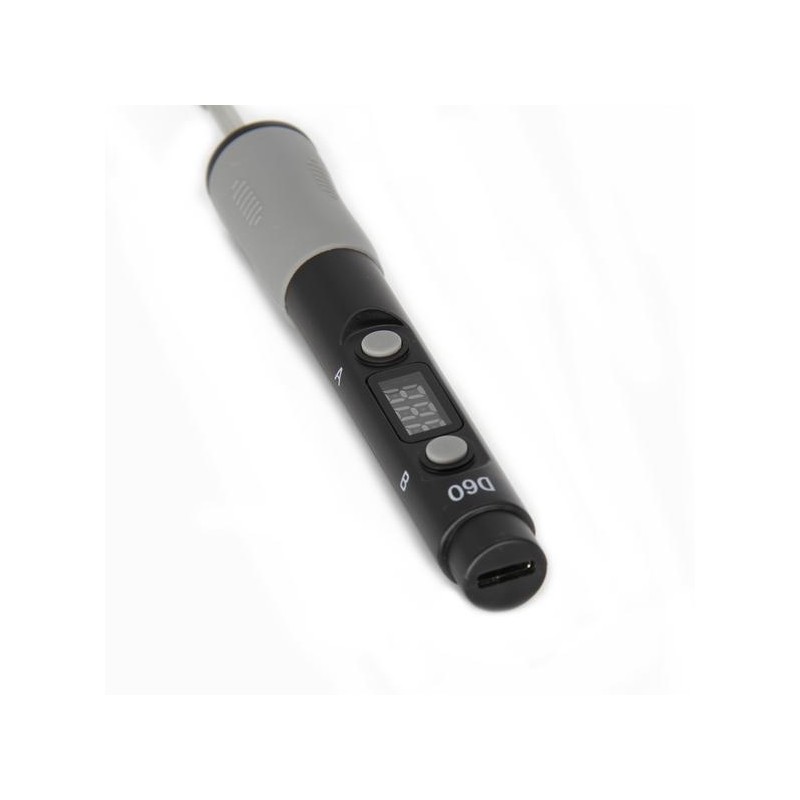

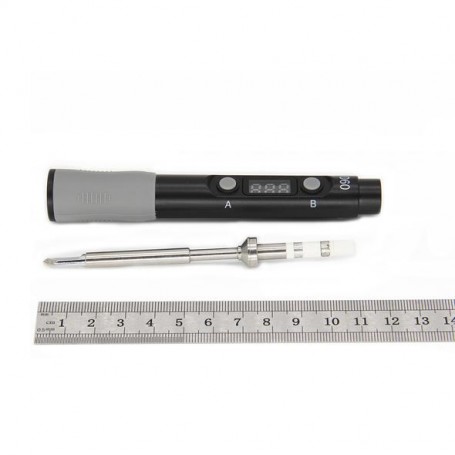

SEQURE SQ-D60B - TS-B2 tip
New

SEQURE SQ-D60B - TS-B2 tip

SQ-D60 with humanized functions such as automatic sleep shutdown, induction wake-up, etc., it is a portable intelligent constant temperature electric soldering iron.

€24.79
Tax included
 Reservation


Buy secure. We use Paypal and other secure platforms.



Fast delivery. 24/48 hours Spain. 3-7 days international.



Return policy. Read our terms & conditions.

Calculate Shipping Cost

Description

Model: SQ-D60A  (Note: LED version, below referred to as “A version”)

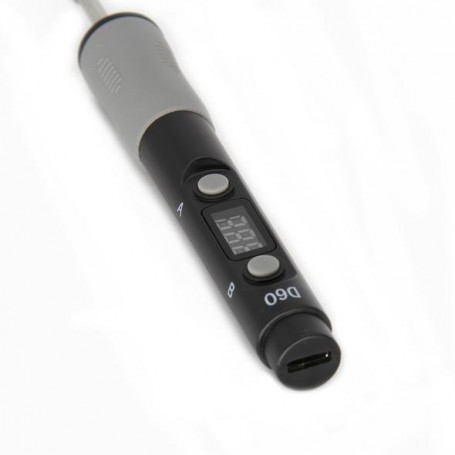

             SQ-D60B (Note: Digital tube version,  below referred to as “B version”)

Power: 60W

Power supply: DC12-24V     Type-C interface

Temperature range:  A version: 280 ℃, 350 ℃ , 400 ℃(choices)

                                    B version: 100-400 ℃ (Adjustable)

Soldering Iron Kit Features:

The SQ-D60 is equipped with a SQ-001 soldering iron head and uses TYPE-C power supply, “A section” LED display and “B section” digital tube display.

SQ-D60 with humanized functions such as automatic sleep shutdown, induction wake-up, etc., it is a portable intelligent constant temperature electric soldering iron.

The operation is simple and easy, the temperature rises quickly and stably, and the round and small body is full of simplicity and luxury. It is an essential welding tool for electronic players.

Control terminal:

SQ-D60 adopts integrated TYPE-C power supply interface. The circuit design is stable and safe. The built-in STM32 processor, dual temperature sensor and motion sensor are the perfect combination to make SQ-D60 freely switch between various temperature ranges. Wake-up,  over-temperature and high-pressure alarm, etc., truly realize intelligent intelligent constant temperature electric iron.

Heating end:

* The heating end uses an internal heating core

* Temperature range: A version: 280 ℃, 350 ℃, 400 ℃(Choices)

                        B version: 100-400 ℃ (Adjustable)

* Temperature stability range: ± 5 ℃

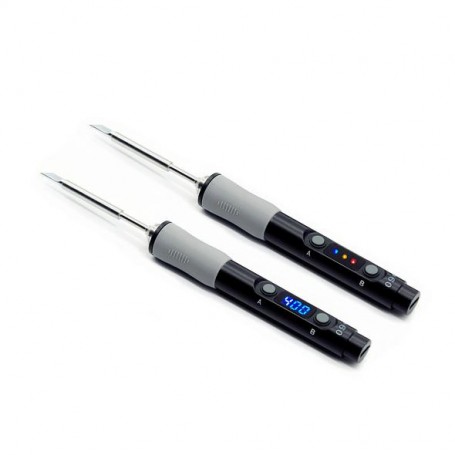

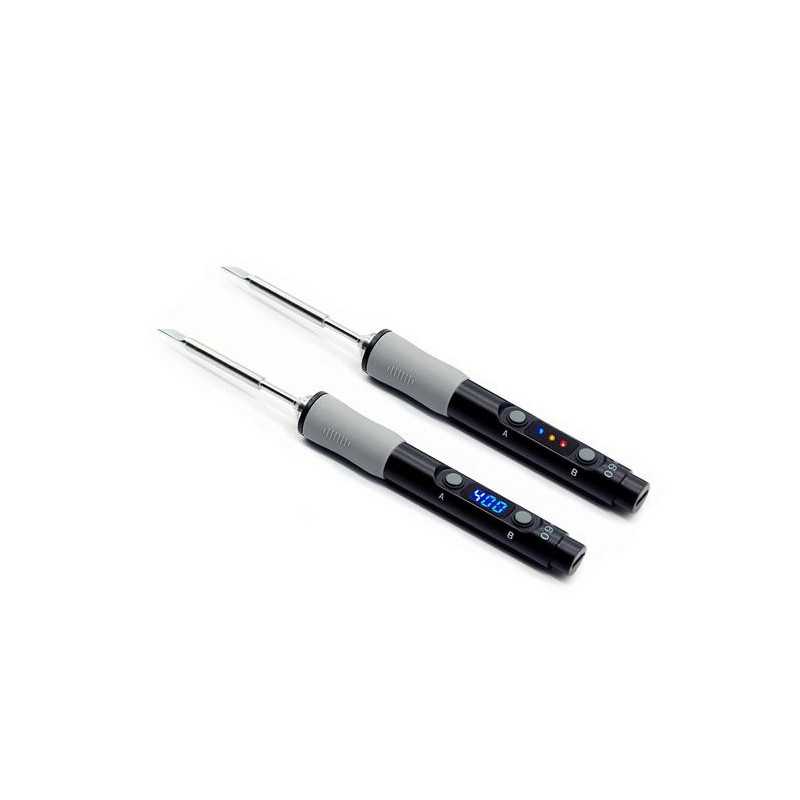

Comparison of A and B soldering irons:

Soldering iron kit

Soldering iron kit

favorite soldering iron tipSafety instructions:

  1. Please use proper power supply and accessories to ensure safe use.
  2. Before replacing the soldering iron head, you must cut off the power.
  3. Do not touch the tip of the soldering iron after the temperature has risen to avoid burns.
  4. The electric soldering iron is used for the first time. It may be slightly smoked due to the heating of the heating element. This is normal.

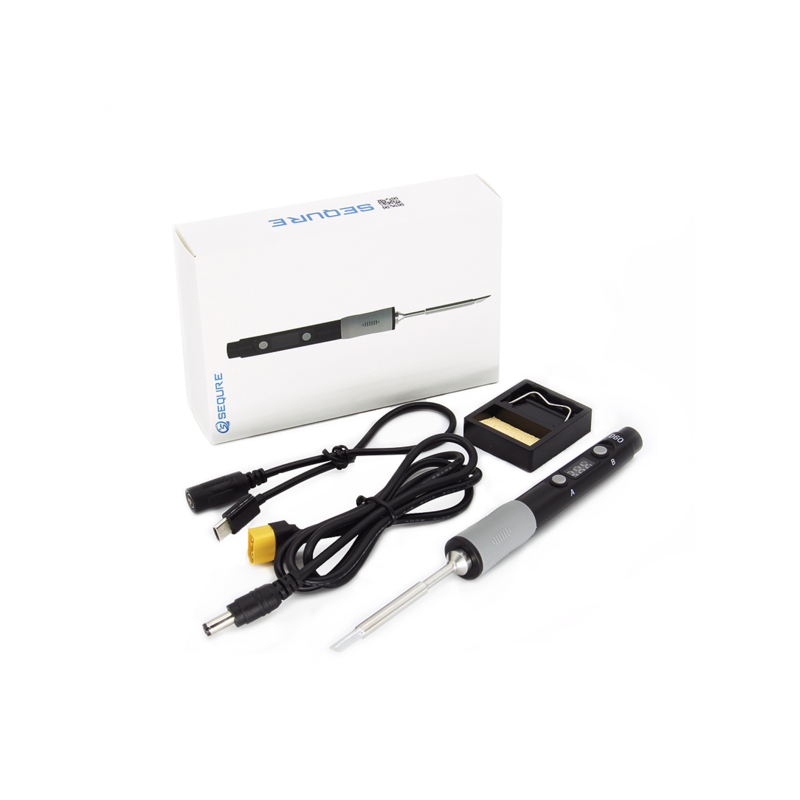

Soldering Iron Kit Packing list:

1 x Mainframe

1 x Soldering Iron Tip

1 x Conversion Line

1 x Instruction Manual

1 x Soldering Iron Stand

1 x Hex Key

1 x XT60 Power Cable

FAQ about the PD45W adapter
Q: In addition to the wires that come with the PD45W adapter, can other wires be used with SQ-001 or D60 soldering irons?
Answer: The operating voltage range of SQ-001 and D60 is 12-24V. Other lines need to bring a PD chip, because the built-in PD chip can seduce a voltage of 20V. So, the data line needs to bring PD protocol to lure out 12-24V to use. Cannot be used without PD chip.

Q: Can this PD45W adapter and its own cable charge my phone?
Answer: The output voltage of the PD45W adapter and the built-in line is 20V, which cannot charge the mobile phone. Because this data line has a PD chip, the induced voltage is 20V. The input voltage of the mobile phone is generally 5V , too high voltage may cause damage to the mobile phone!
