TBS Crossfire Sixty9

TBS Crossfire Sixty9

What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

45,37 €
Impuestos incluidos
 En stock


Compra seguro. Usamos Paypal y otras plataformas de pago seguras.



Envío rápido. 24/48 horas España. 3-7 días internacional.



Política de devoluciones. Lea nuestros términos y condiciones.

Calcular Coste de Envío

Descripción

What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

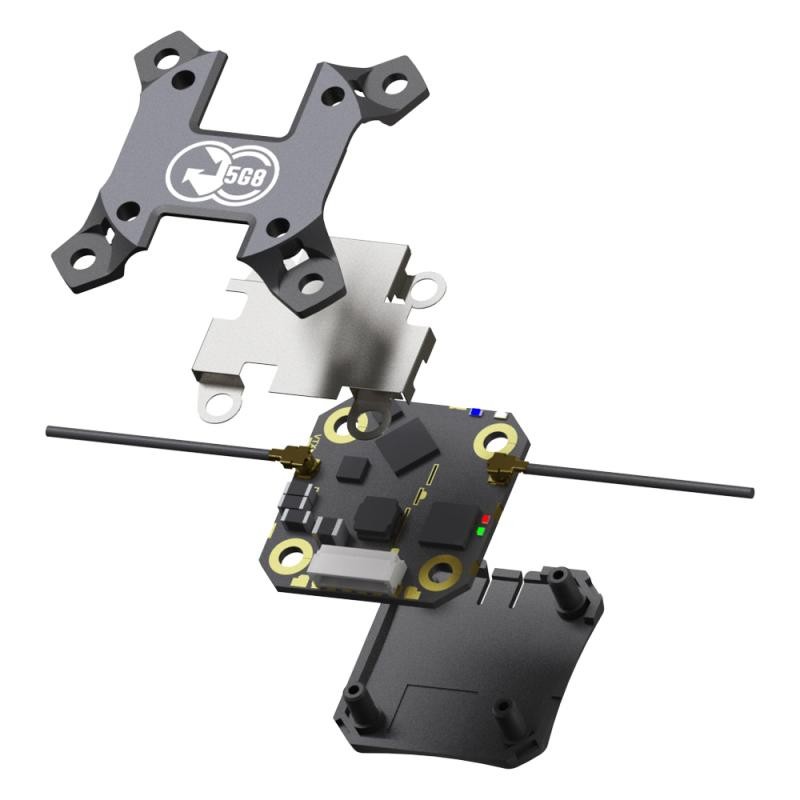

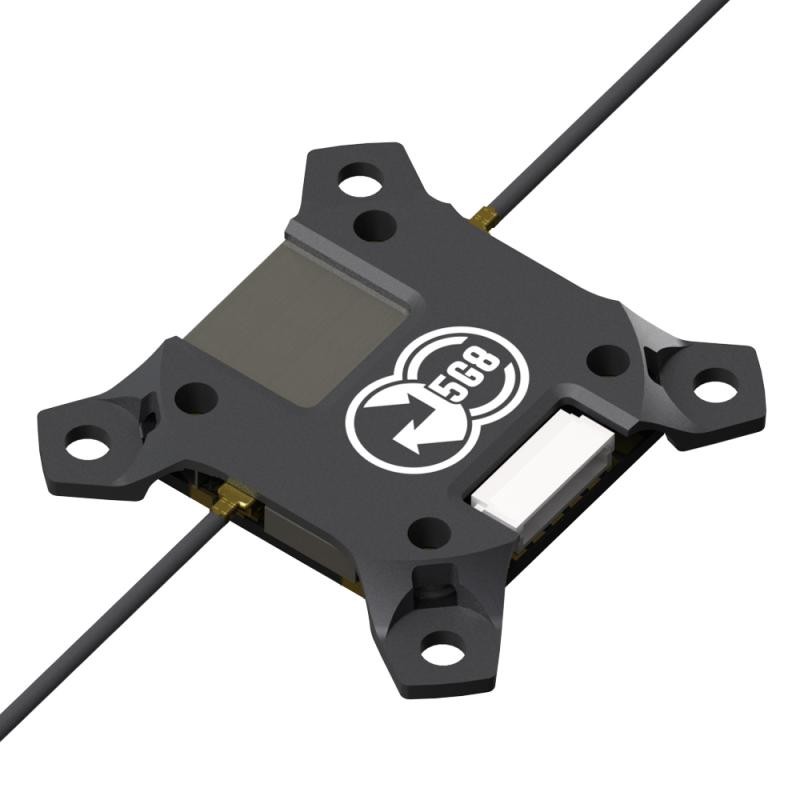

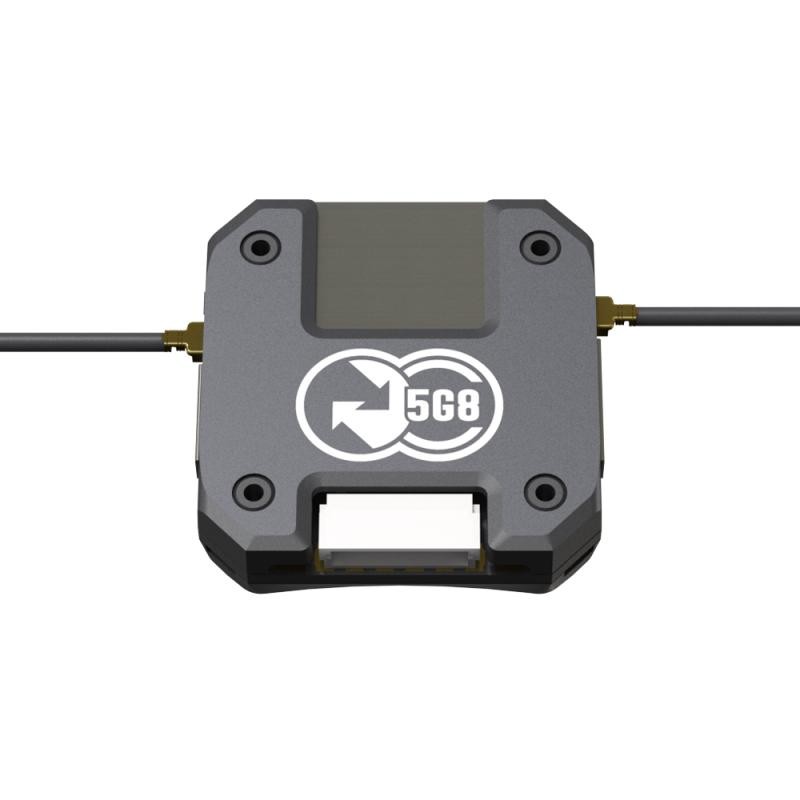

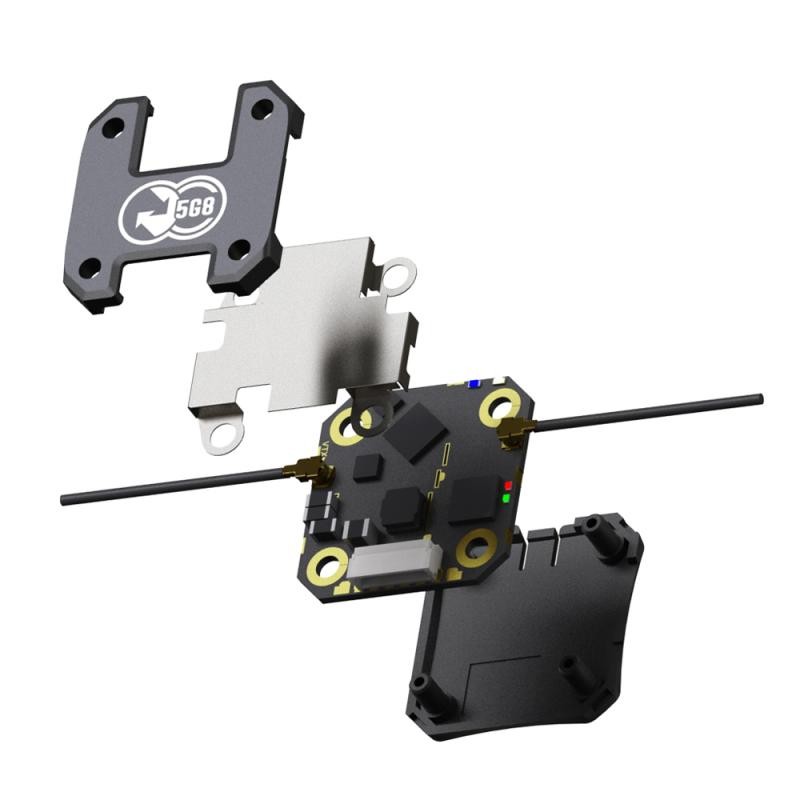

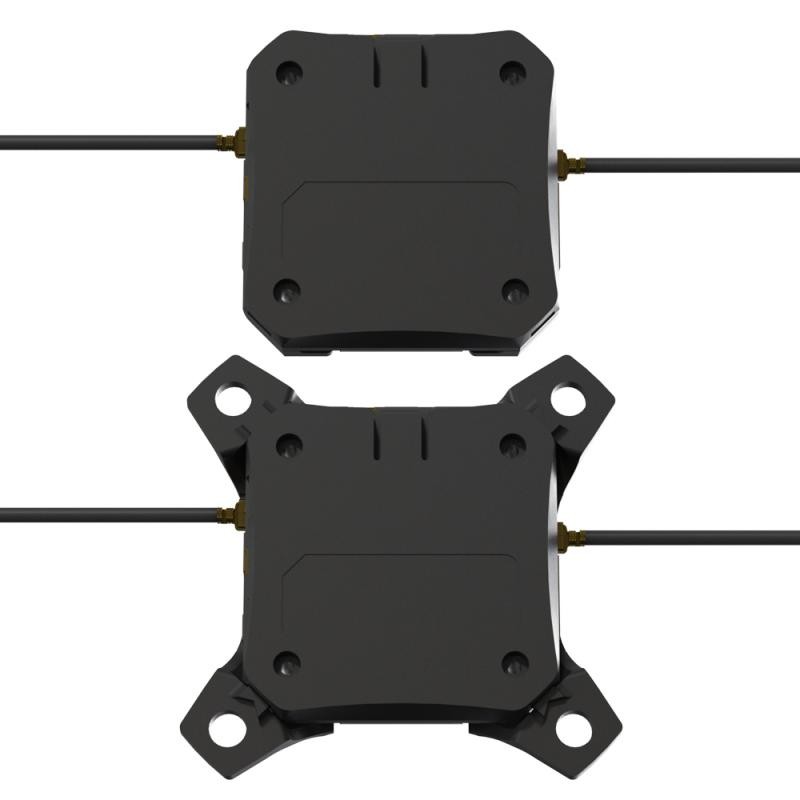

Introducing the TBS Crossfire Sixty9, a VTx and RC receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20x20, but we do incldue adapters for your 30x30 stacks, and a plastic case for mounting the unit to your frame, without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).

FEATURES:

  • Integrated video transmitter control with long range and (team-)race functions
  • Dedicated low-noise power supply for receiver and video transmitter
  • Sleek 20x20 mounting form factor
  • Plug&play connection and solder pads connectivity
  • 3 different mounting flavors, RF tin shields, and other accessories included
  • High power analog adjustable video transmitter (up to 1W with perfect cooling)
  • 5V regulator bulti-in, takes up to 6S

SPECIFICATIONS

  • Weight: 4.1g (board only)
  • Antenna ports: 1x video transmitter, 1x R/C receiver
  • Size: 24mm x 24mm
  • Requires: Firmware V4.62 and above
  • CRSF V3 ready
  • Input voltage: 6V - 25V (2-6S)

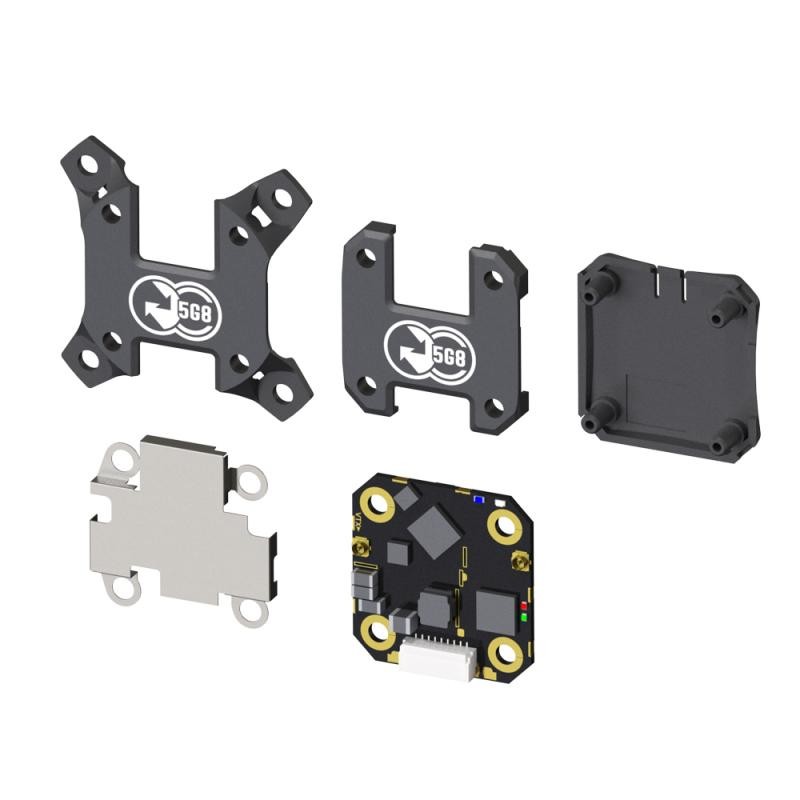

INCLUDES

  • 1x TBS Crossfire Sixty9
  • 1x TBS Crossfire Immortal-T antenna
  • 1x u.FL to SMA mount (for VTx)
  • 1x 30x30 heatsink / case
  • 1x 20x20 heatsink / case
  • 1x optional tin-shield (for added low-noise tolerance)
  • 1x JST-SH x 9 connector

DOWNLOADS
