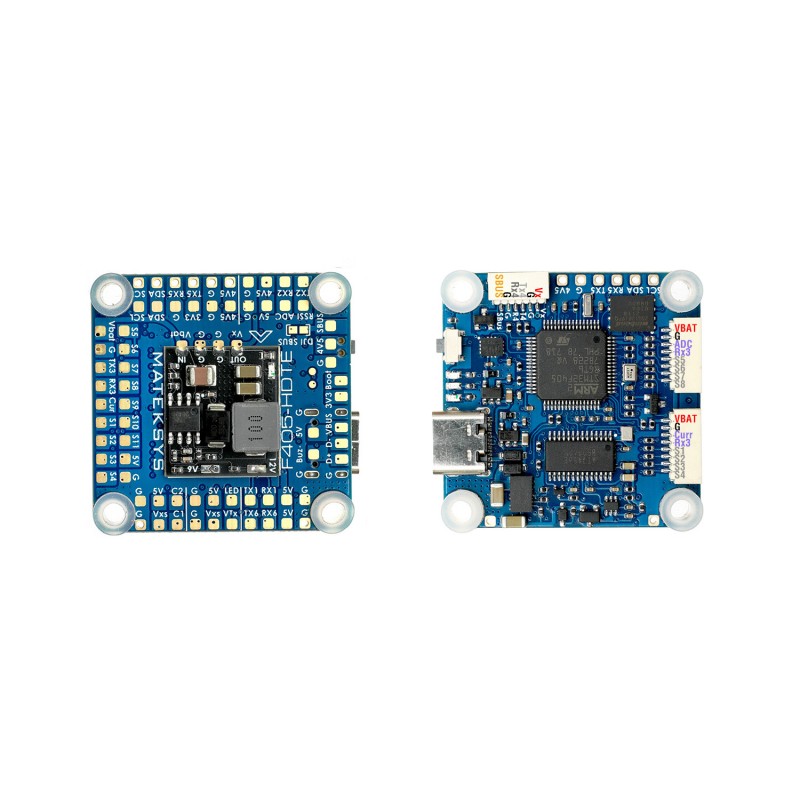

Mateksys Flight Controller F405-HDTE

Mateksys Flight Controller F405-HDTE

57,81 €
Impuestos incluidos
 En stock


Compra seguro. Usamos plataformas de pago seguras. Para garantías o reembolsos contáctanos.



Envío rápido. 24/48 horas España. 3-7 días internacional.



Política de devoluciones. Lea nuestros términos y condiciones.

Calcular Coste de Envío

Descripción

Features

STM32F405 has 1MB flash which can run ArduPilot/INAV/BetaFlight

InvenSense the 3rd generation IMU ICM42688-P

9-60V(3~12S LiPo) wide input voltage and voltage sense. and a 9~16V BEC for DJI OSD or analog VTX.

8motors+3servos in INAV/BF multirotor mixer.

2x SH1.0_8pin connector for PnP with 2x 4in1 ESC

1x SH1.0_6pin connector for PnP with HD System(Caddx Vista & Air Unit)

USB pin breakout for connecting to external USB adapter.

Specifications

MCU: STM32F405RGT6

IMU: ICM42688-P

OSD: AT7456E, DJI OSD

Baro: SPL06-001 (I2C)

Blackbox: 16M-byte Flash memory

6x UARTs, 1x Softserial_Tx option

12x PWM outputs (8x Dshot)

1x I2C

4x ADCs (VBAT, Current, RSSI, Airspeed)

2x PINIUM

2x SH1.0_8pin connector for 4in1 ESC

1x SH1.0_6pin connector for HD System(Caddx Vista & Air Unit)

3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red)

9~16V(Vxs) output ON/OFF switchable

Dual analog camera signal switchable

Power

Input: 9~60V (3~12S LiPo)

BEC: 5V 1.5A

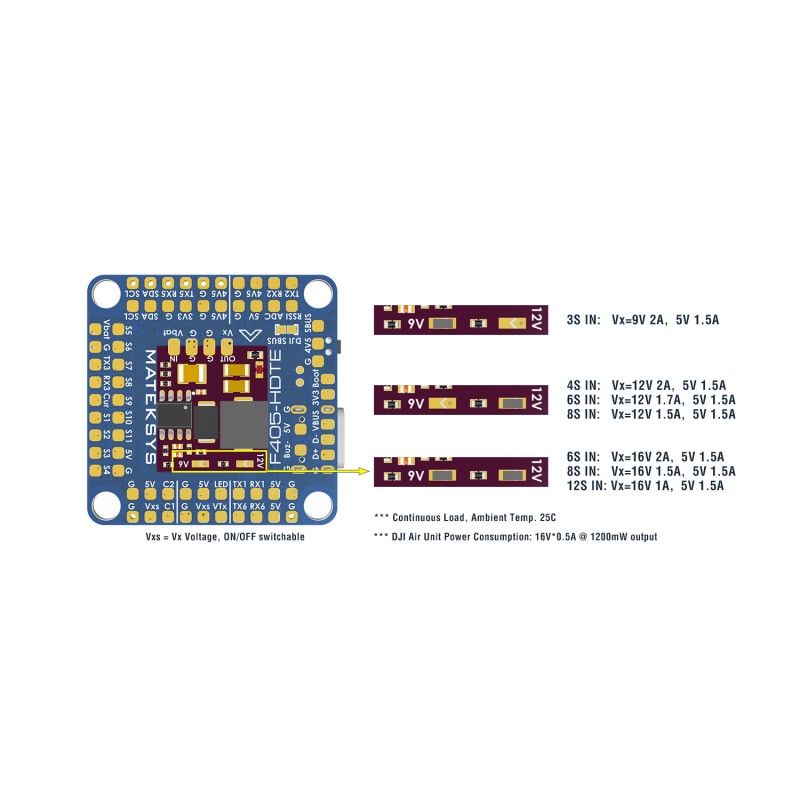

BEC: Vx, 9~16V/1~2A (3S IN/9V 2A, 4S IN/12V 2A, 6S IN/16V 2A, 8S IN/16V 1.5A, 12S IN/16V 1A)

Battery Voltage Sensor: 1K:20K (INAV scale 2100, BF scale 210)

No Current Sensor built-in, supports external current sensor of PDB/4in1
