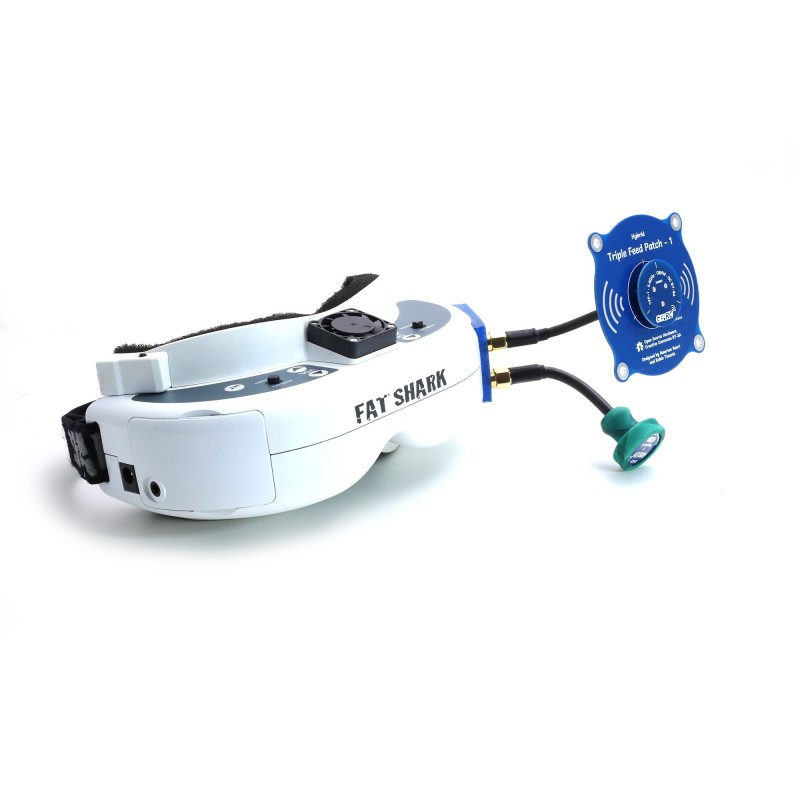

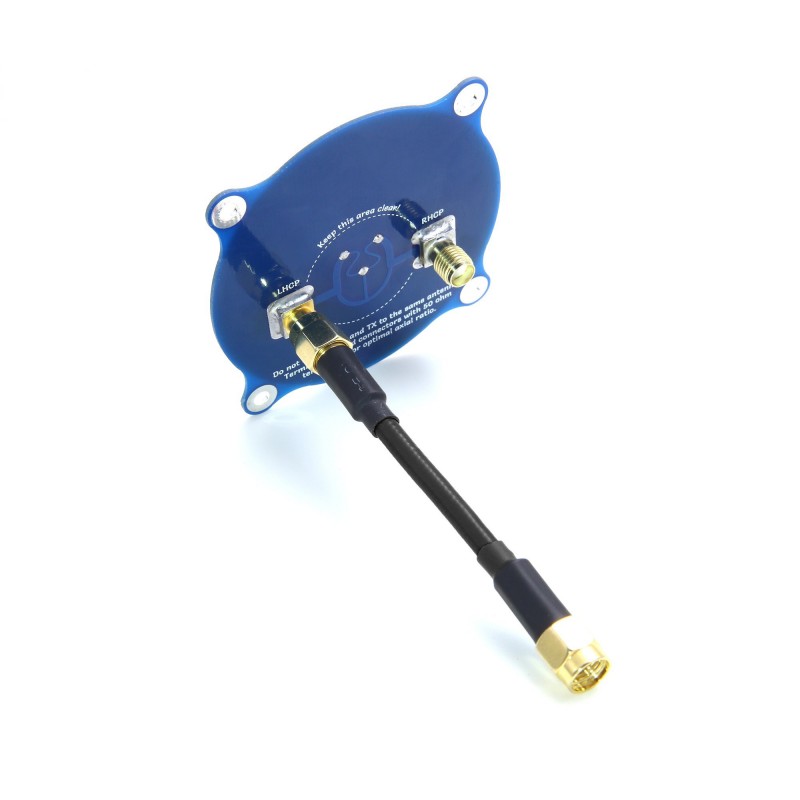

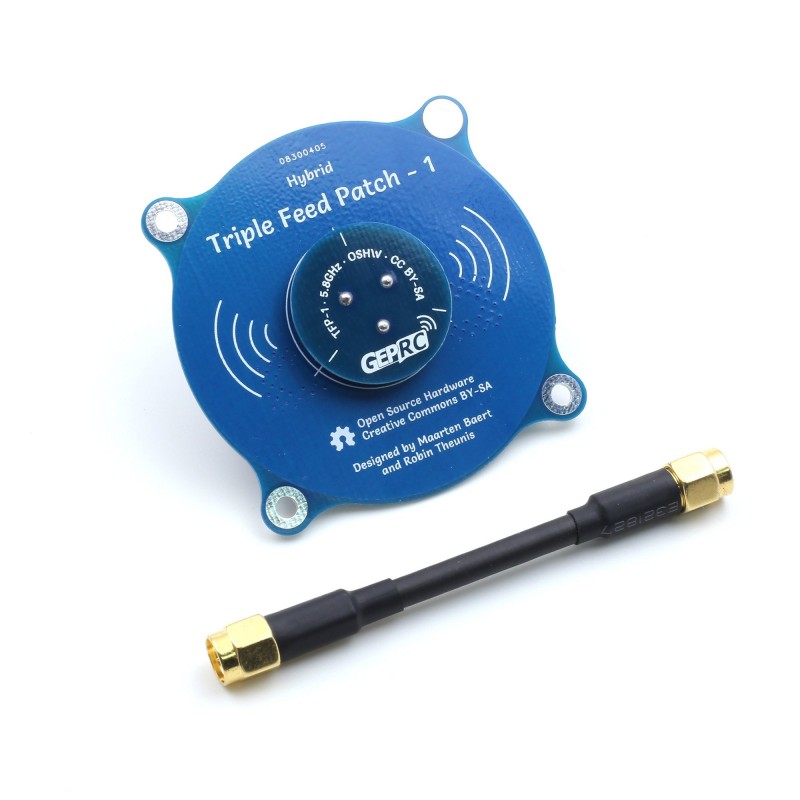

GEPRC Triple Feed Patch-1 5.8GHz CP FPV Antenna

GEPRC Triple Feed Patch-1 5.8GHz CP FPV Antenna

1 5.8GHz CP FPV Antenna.

€21.48
Tax included
 In stock


Buy secure. We use Paypal and other secure platforms.



Fast delivery. 24/48 hours Spain. 3-7 days international.



Return policy. Read our terms & conditions.

Calculate Shipping Cost

Description

Center frequency: 5.8 GHz
Bandwidth: 660 MHZ (5.47-6.13ghz)
Match: S11 < -20 dB, VSWR < 1.22 (at the center frequency)
Axial ratio: < 1.3
DBi antenna gain: 9.4
Half power beam width: 55 ° (horizontal and vertical)
Radiation efficiency: 83.5%
These values are based on simulation and the actual measurements are as follows (they are very similar).
Due to the change of the FR4 dielectric constant, the center frequency may be transferred between batches.
And not all FR4 brands have the same dielectric constant.
The frequency conversion to 100 MHz is normal.
