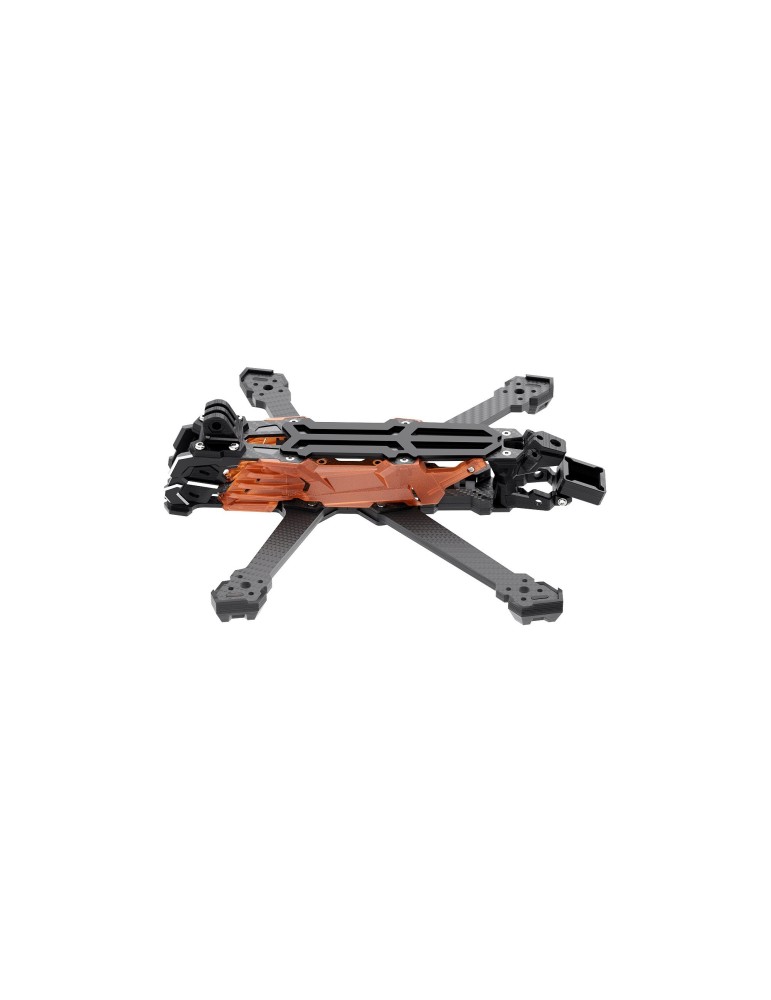

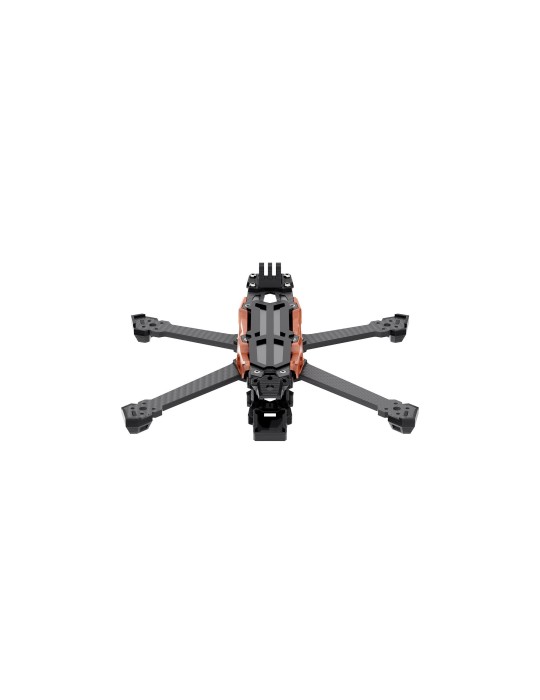

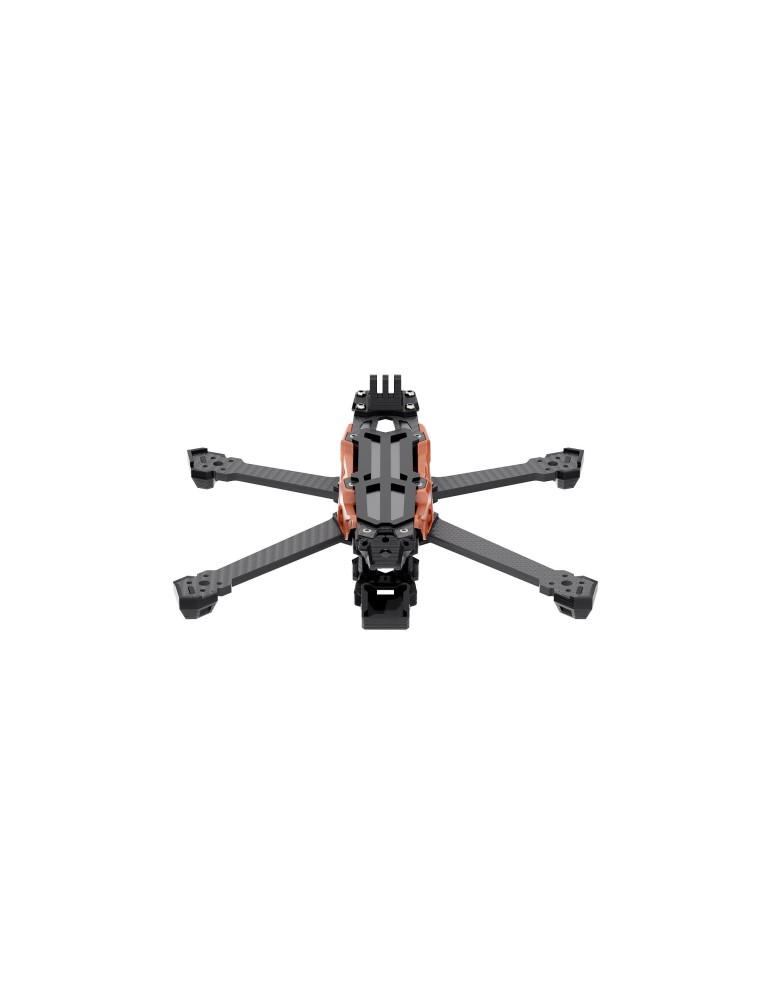

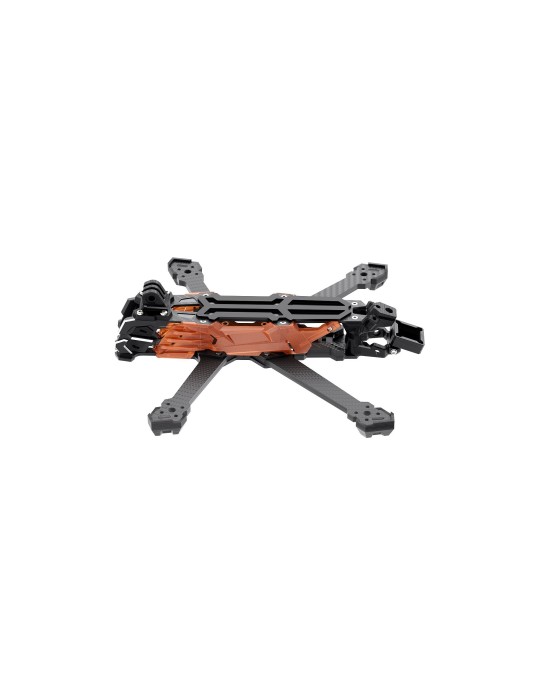

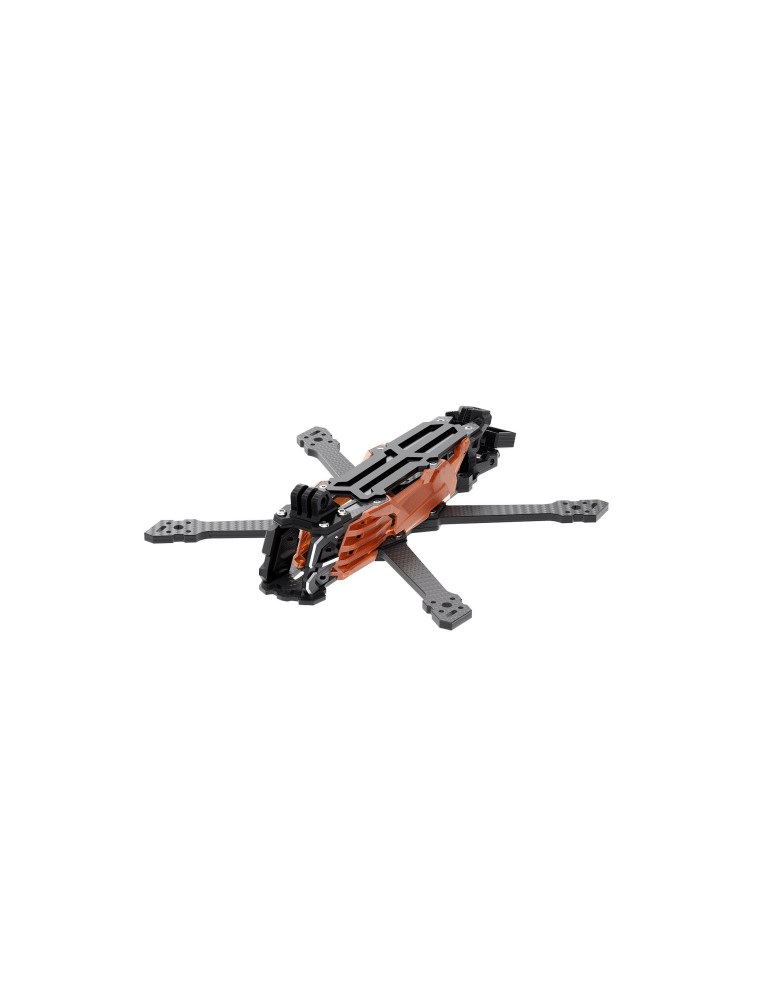

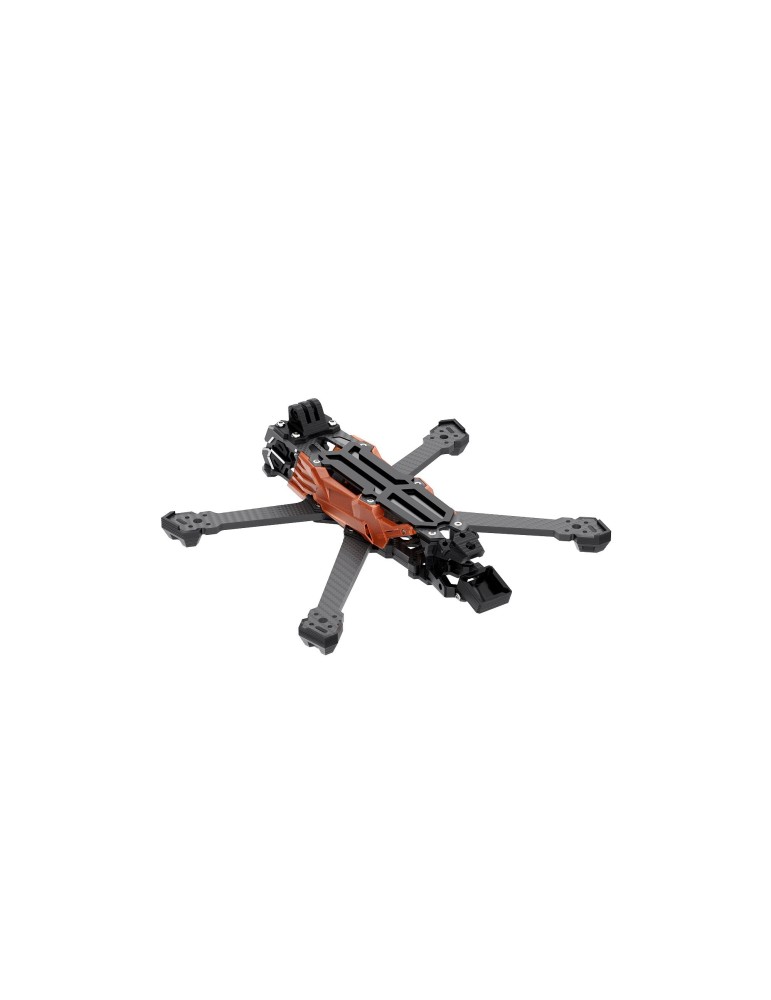

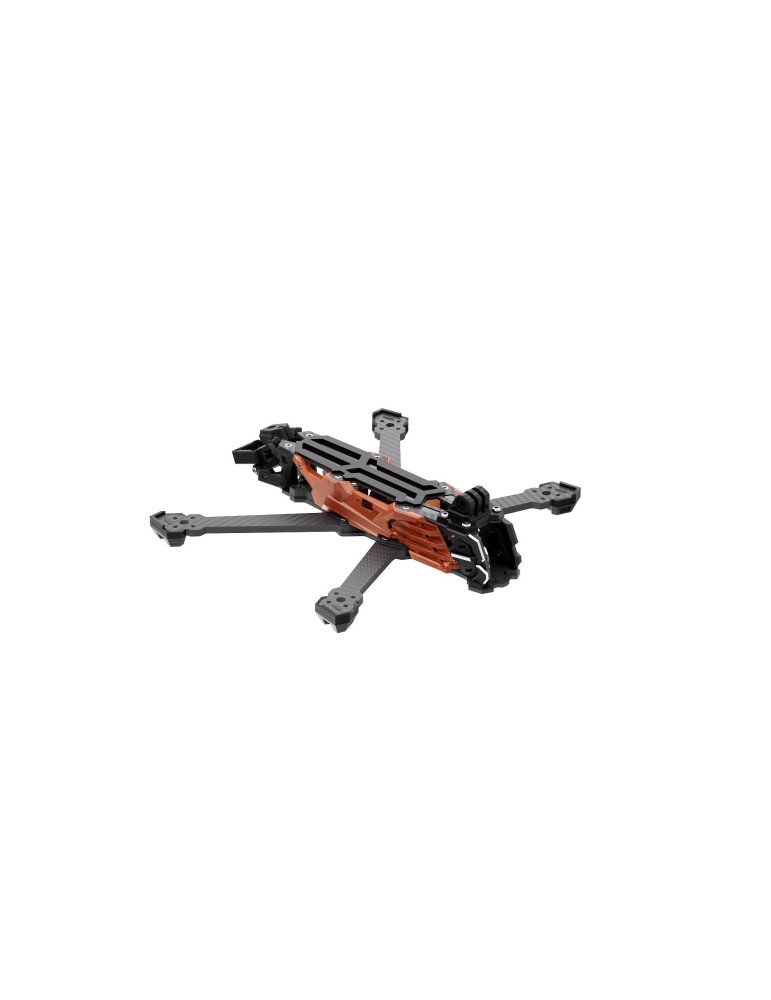

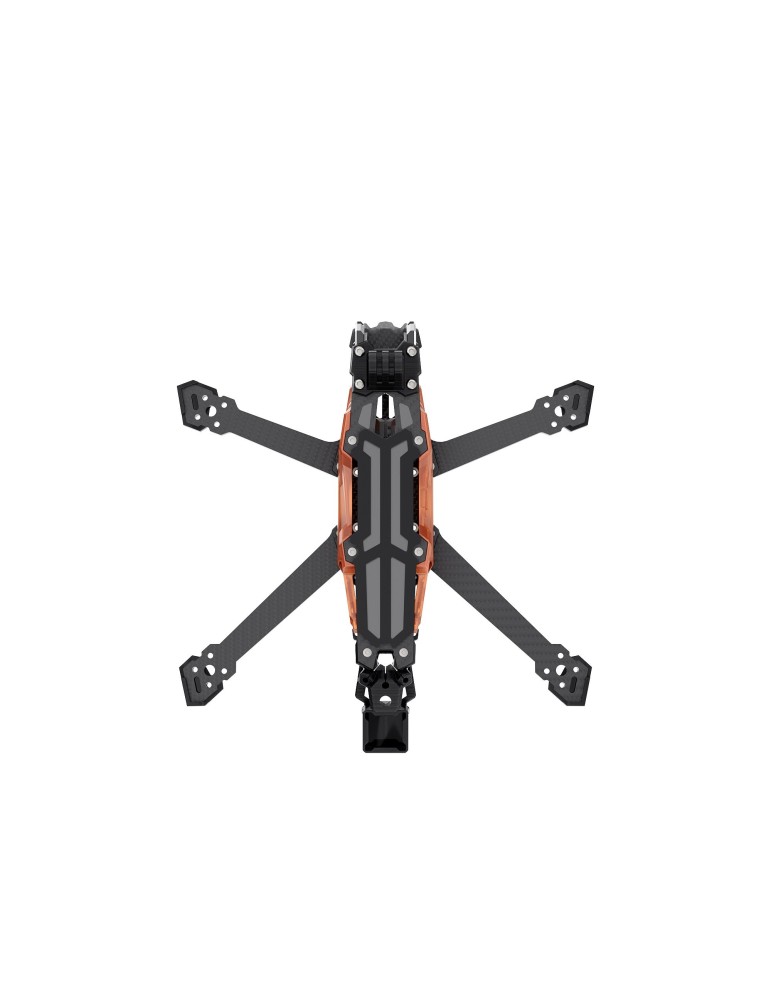

Geprc GEP-Vapor-D5 04 Pro Frame

The GEPRC Vapor-D O4 Pro frame is designed for the DJI O4 Air Unit Pro.

It features redesigned aluminum camera mounts and vibration-damping silicone for better compatibility and reduced resonance.

The sleek side panels highlight its mech-inspired design.

With a DC structure, it provides interference-free footage and smooth flight. Built from high-strength carbon fiber, it’s lightweight, durable, and performs reliably in all conditions.

The GEP-Vapor-D O4 Pro ensures clean footage and dependable flight for aerial filming.

Features

1. 5mm wide carbon fiber arms for better rigidity and durability.

2. Dual protection with camera guard side panels and a front lip design for better impact resistance.

3. Available in both 5-inch and 6-inch options to cater to every pilot’s flying preferences.

4. Quick-release design for easy repairs and maintenance.

5. Redesigned aluminum lens mount, perfectly matched to the O4 Pro VTX.

6. New mech-inspired side panels with a bold, sharp design.

7. Rear antenna mount supports both the original O4 Pro antenna and SMA adapters.

8. Clear footage with no prop in view and agile flight with DC frame.

D5 Specifications

Model: GEP-Vapor-D5 O4 Pro Frame

Wheelbase: 238.4mm

Top Plate Thickness: 2.0mm

Middle Plate Thickness: 2.0mm

Arm Thickness: 5.0mm

Bottom Plate Thickness: 2.5mm

FC Mounting Hole Size: 20x20mm / 30.5×30.5mm

VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm

Motor Mounting Hole Size: 16x16mm

Camera Mounting Hole Size: 19mm / 20mm

Recommended Propeller: 5-inch

Weight: 221±5g

D5 Includes

1 x GEP-Vapor-D5 O4 Pro Frame

2 x M20*250mm battery straps

2 x Battery Silicone Pads

1 x Set of screws

1 x Printouts pack

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm）

1 x L-shaped screwdriver (3mm)

1 x M8 wrench
