Radiomaster RP1 V2
The RP1 and RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.
Due to the low-latency and high-refresh-rate RF module, the RP1 and RP2 are ideal for FPV races or Long Range. Suitable for many models due to the ultra-light and Nano size, these receivers can fit just about anywhere!
Buy secure. We use Paypal and other secure platforms.
Fast delivery. 24/48 hours Spain. 3-7 days international.
Return policy. Read our terms & conditions.
Description
Features

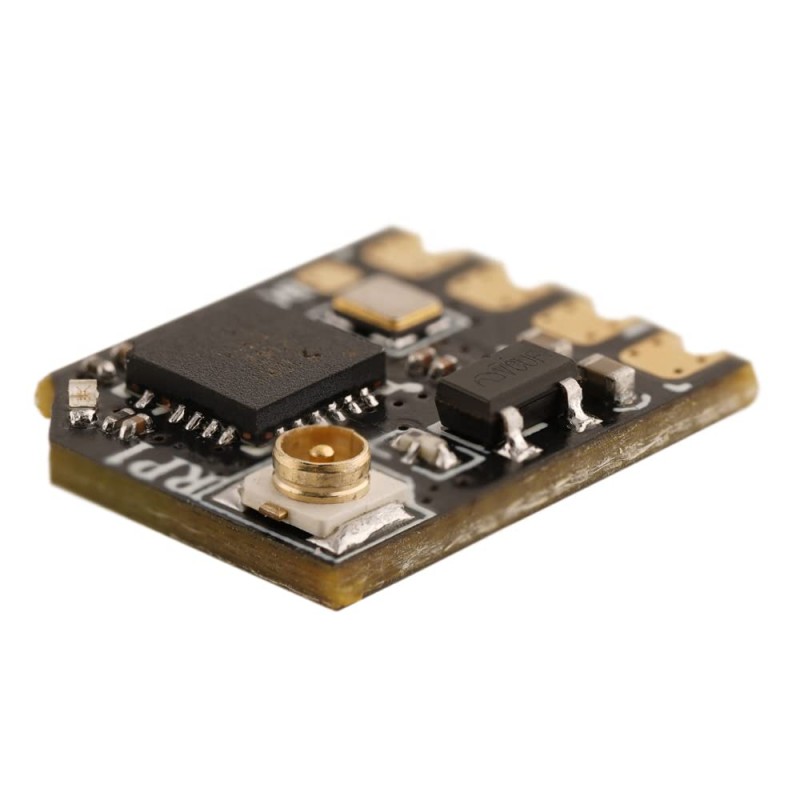

Improved PCB design is better for heat dissipation.
Upgraded rigid antenna with greater durability and performance.
LED on the top side of PCB.
Solder pads are improved and easier to solder to.
Built-in a TCXO (temperature compensated crystal oscillator)
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specification
Item: RP1 Nano ExpressLRS 2.4ghz Receiver
Type: ISM
MCU: EPS8285
RF Chip: SEMTECH SX1281
Telemetry RF power: 10mW

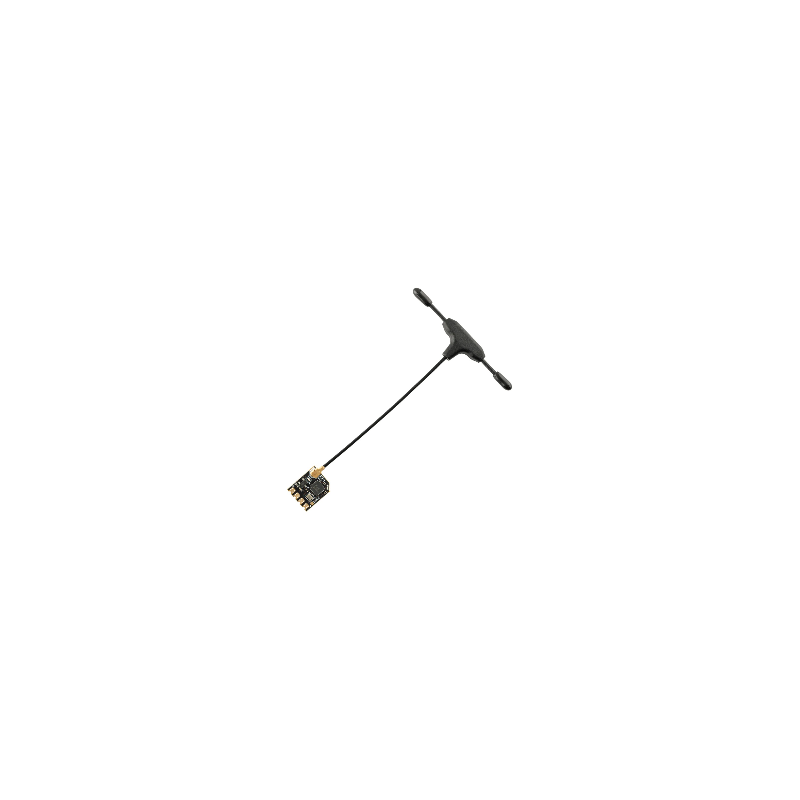

Antenna: 65mm 2.4ghz T Antenna
Frequency Range: 2.404 - 2.479 Ghz
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 2.2g (Including antenna)
Dimension: 13mm*11mm*3mm
Firmware Version: ExpressLRS v2.4 pre-installed
FW Target: RadioMaster RP1/2 2400 RX
Bus interface: CRSF
