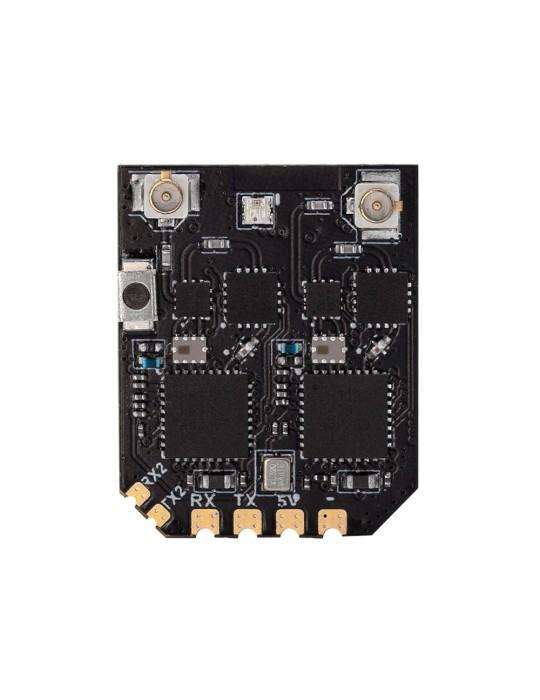

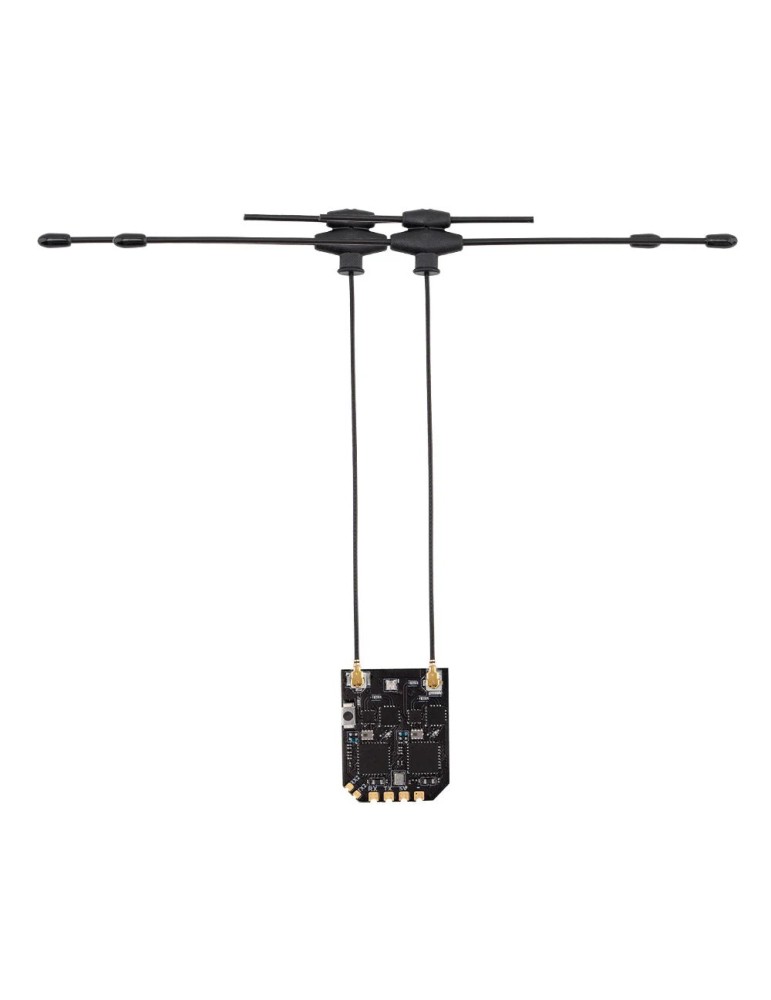

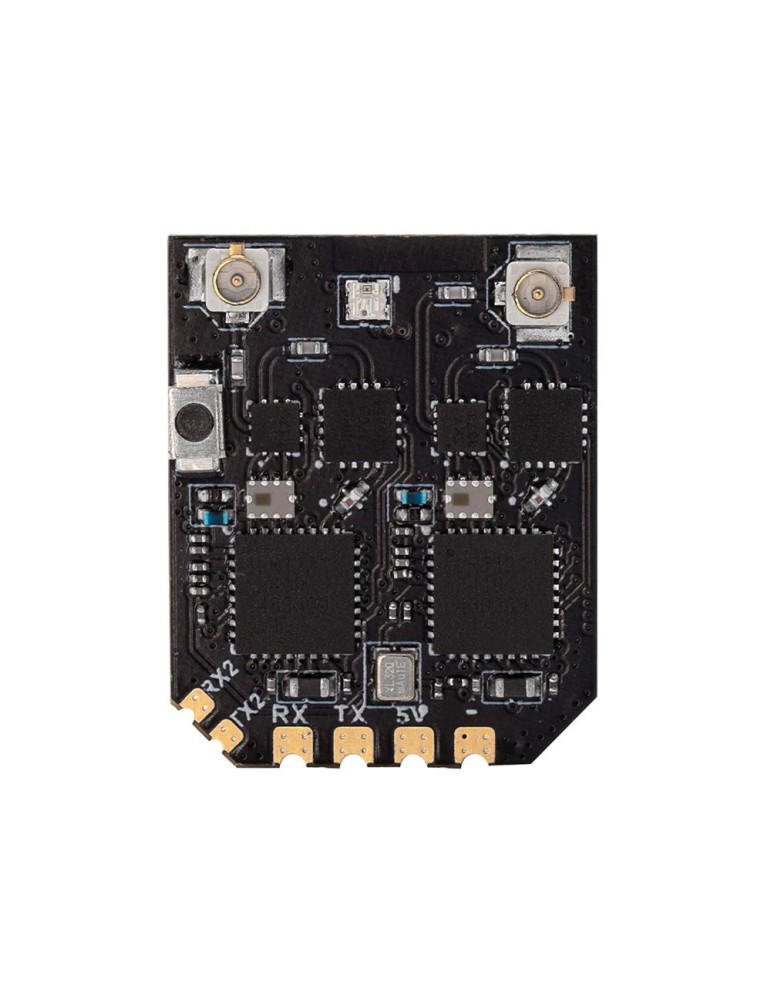

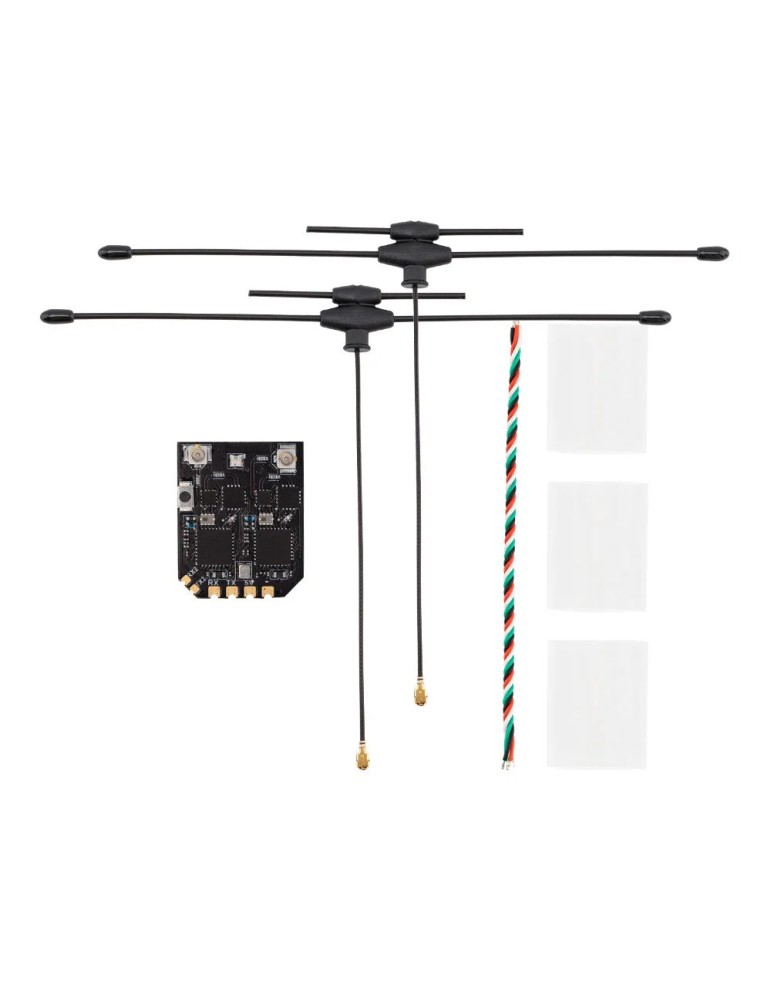

The XR4 Receiver is a cutting-edge true diversity dual-band receiver featuring dual LR1121 RF transceivers, designed to leverage the advanced ExpressLRS Gemini Xrossband protocol (Gem-X). It seamlessly supports both the 2.4GHz and Sub-G 900MHz bands, and its dual T-type antennas provide superior reception sensitivity and connection stability for optimal performance.

Radiomaster
KC1532
€34.67
Tax included
Quantity
Add to Wishlist
Add to Compare
In stock

Drone Parts,  Radio,  Receivers
  Buy secure. We use Paypal and other secure platforms.
  Fast delivery. 24/48 hours Spain. 3-7 days international.
  Return policy. Read our terms & conditions.
Description

XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver

Especificaciones

-Producto: Receptor de doble banda XR4 Gemini Xrossband

-MCU: ESP32D4

-Chip RF: LR1121 x 2

-Conector RF: IPEX-1 x 2

-Antena: Antena T de doble banda x 2 (incluida)

-Rango de frecuencia: 2,4 GHz / Sub-G 900 MHz

-Potencia de telemetría: 100 mW

-Frecuencia de refresco máxima de recepción: DK500 Hz / K1000 Hz

-Frecuencia de refresco mínima de recepción: 50 Hz

-Voltaje de funcionamiento: CC 4,5 - 8,4 V

-Peso: 1,7 g (sin antena)

-Dimensiones: 22 mm × 18 mm × 4 mm

-Versión de firmware: ExpressLRS v3.5.1 preinstalado

-Compatible con: RadioMaster XR4 2.4/900 Gemini RX

-Interfaz de bus 1: CRSF

-Interfaz de bus 2: UART
