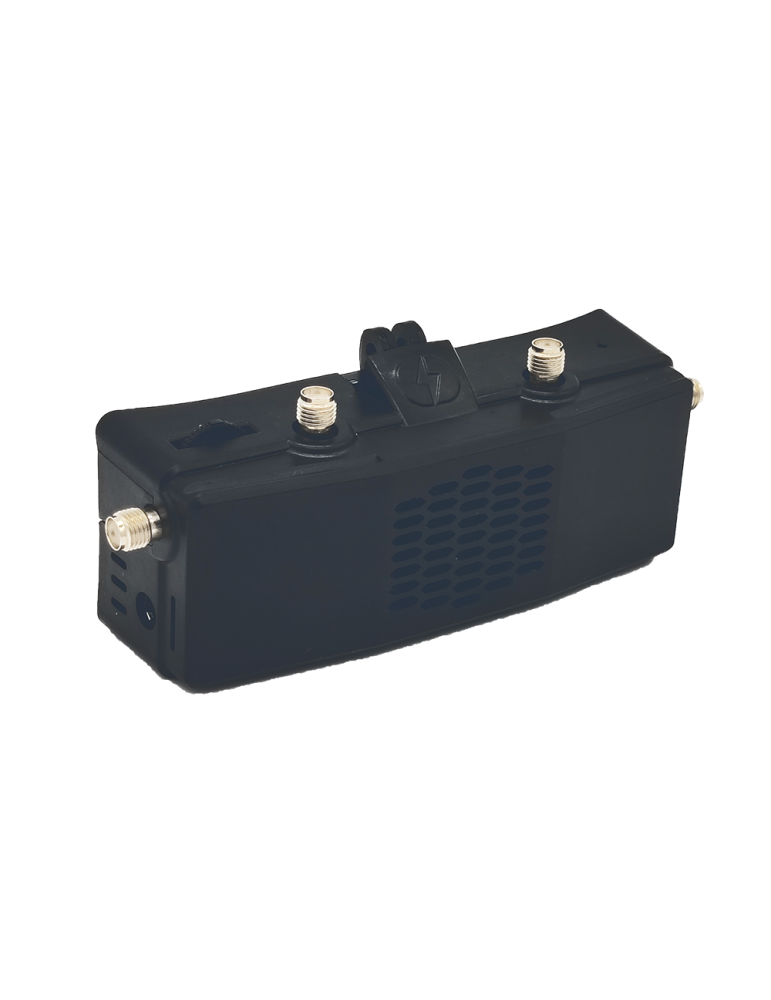

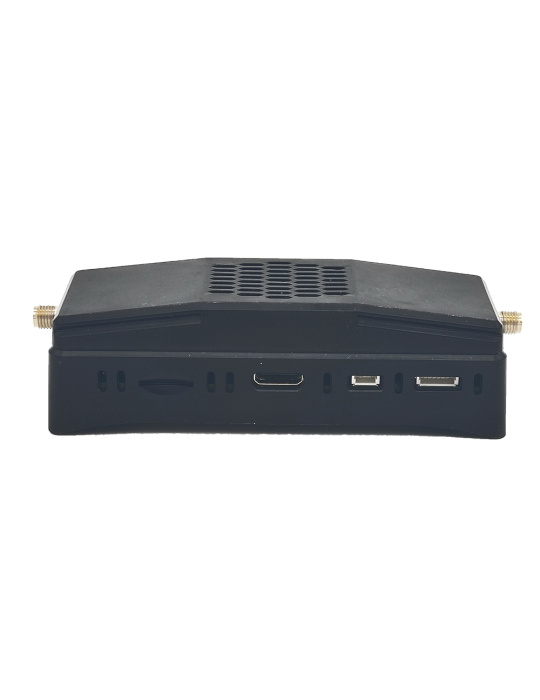

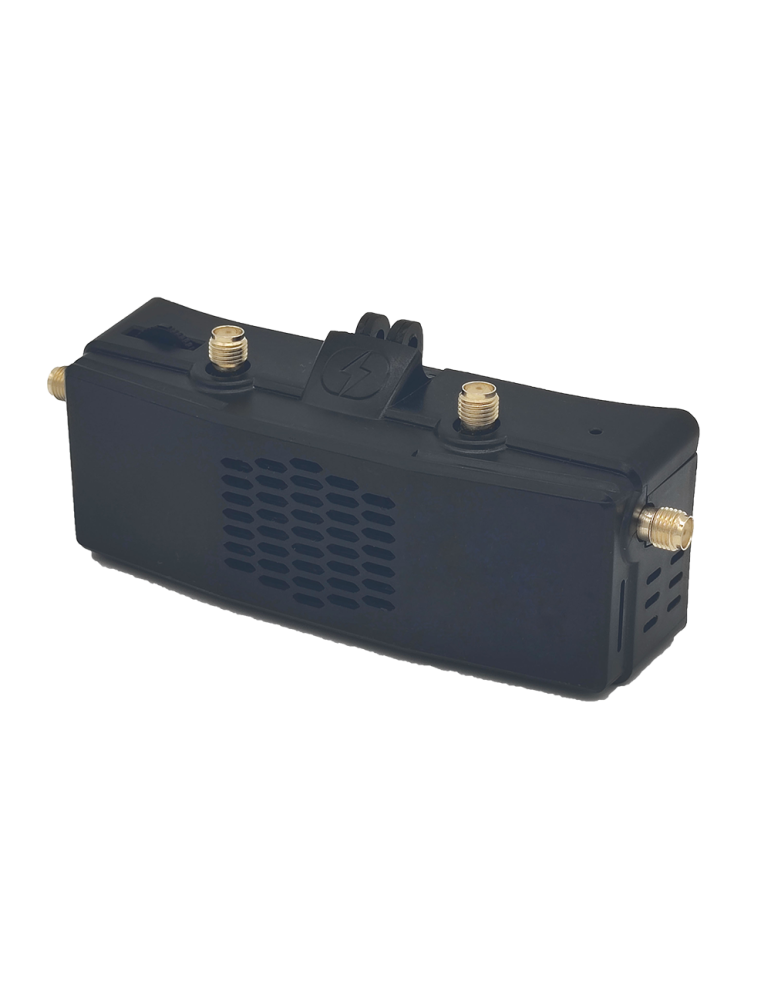

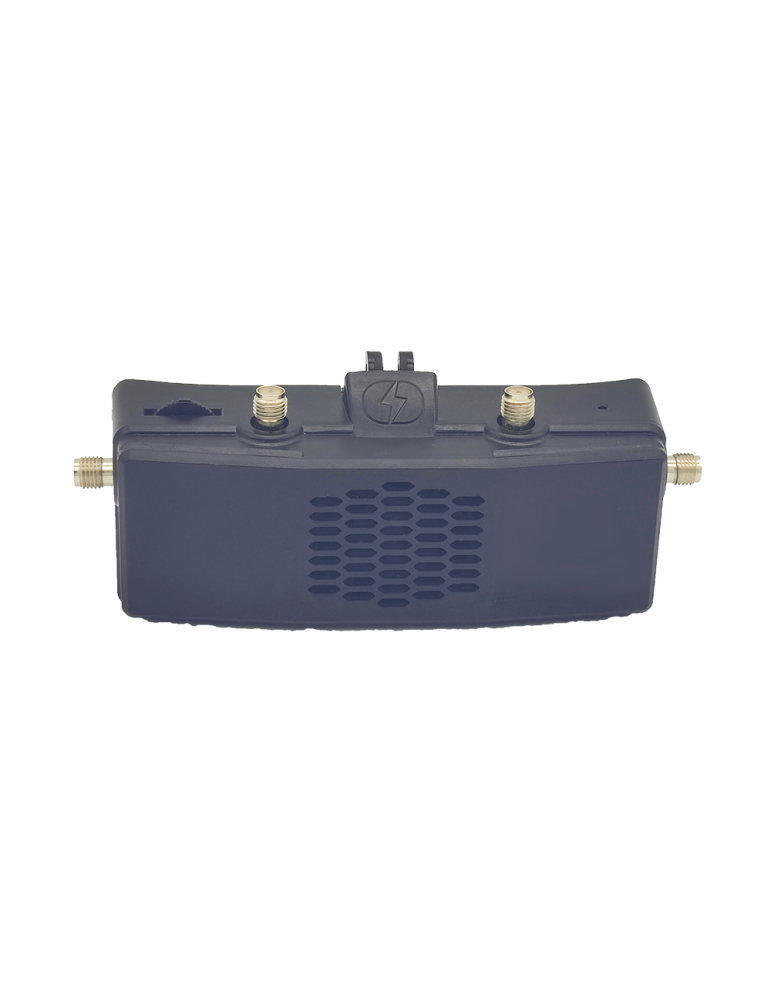

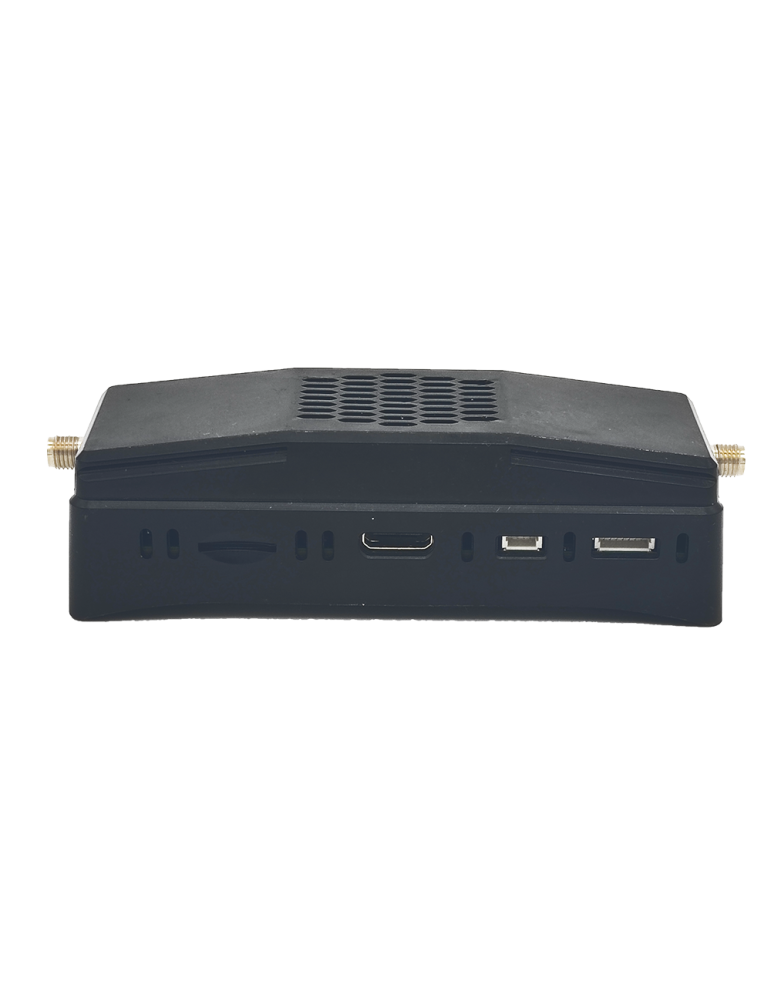

HDZero VRX4

4x external SMA antenna connections to allow you to pick your own antennas for best performance

Mounting rails to allow for custom patch and other antennas to be secured

Real Time Clock for DVR recording to show accurate time and date

ELRS Backpack expansion plug

Ambient Audio Recording

Description

The HDZero VRX is a digital HD 720p 60fps video receiver on 5.8GHz. It works with the HDZero/Shark Byte VTX module to transmit video.

Specifications

Model:  HDZero VRX

SKU：HDZ3500

Frequency:  5.725-5.850GHz

Resolution Default:  1280*720@60fps

RF Sensitivity： -105dBm

RF Connector:  4 x SMA

Video Connector:  HDMI

Additional functions:

    - Real time clock

    - ELRS Backpack expansion plug

    - Audio Recording

Size:  105mm x 47mm x 30mm

Weight:  85g

Power:  12W

Power input：7V-26V(2S-6S)

Mounting：Remove the Goggle’s fan cover

Includes

- HDZero VRX * 1;

- HDMI Cable * 1;

- DC Cable (Direct-Pass) * 1；

- 15cm Programming Cable * 1；

- ELRS Backpack expansion plug Cable * 1;

- Keyboard * 1

Important Notes:

Direct-Pass Cable, no regulator inside

Check Goggle input v oltage range first to av oid goggle damage:

HDZero VRX supports 2S-6S.
