SpeedyBee Adapter 3
35,45 €
Impuestos incluidos
Subscribe To When In Stock
You have successfully subscribed to this product
Compra seguro. Usamos plataformas de pago seguras. Para garantías o reembolsos contáctanos.
Envío rápido. 24/48 horas España. 3-7 días internacional.
Política de devoluciones. Lea nuestros términos y condiciones.
Calcular Coste de Envío
Descripción
Turn your smartphone into
your mobile FPV companion
your mobile FPV companion
Connect to the SpeedyBee mobile app, and configure
your flight controller anytime, anywhere. Or flash the
latest version of Betaflight/Emuflight/INAV in just
2 minutes before your flight session.
The choice is yours.
your flight controller anytime, anywhere. Or flash the
latest version of Betaflight/Emuflight/INAV in just
2 minutes before your flight session.
The choice is yours.
Analyzing Blackbox data has
never been easier
never been easier
No laptop, no separate app, no hassle. Connect your
quad to the SpeedyBee mobile app and analyze your
Blackbox data* in just 1.5 minutes after a flight.
Get the most out of your practice sessions now.
quad to the SpeedyBee mobile app and analyze your
Blackbox data* in just 1.5 minutes after a flight.
Get the most out of your practice sessions now.
*Currently supports Betaflight and Emuflight only
Configure your BLHeli_S ESCs
wherever you want
wherever you want
Why stop at flight controller? Change your BLHeli_S ESCs
setting or update the firmware anytime, anywhere. Broken
motor? Solder it up, take your smartphone out, and configure
your motor direction wirelessly with the latest SpeedyBee app
- now supporting BLHeli_32 and BLHeli_S ESCs.
setting or update the firmware anytime, anywhere. Broken
motor? Solder it up, take your smartphone out, and configure
your motor direction wirelessly with the latest SpeedyBee app
- now supporting BLHeli_32 and BLHeli_S ESCs.
Your LiPo batteries =
Powerful 30W power banks
Powerful 30W power banks

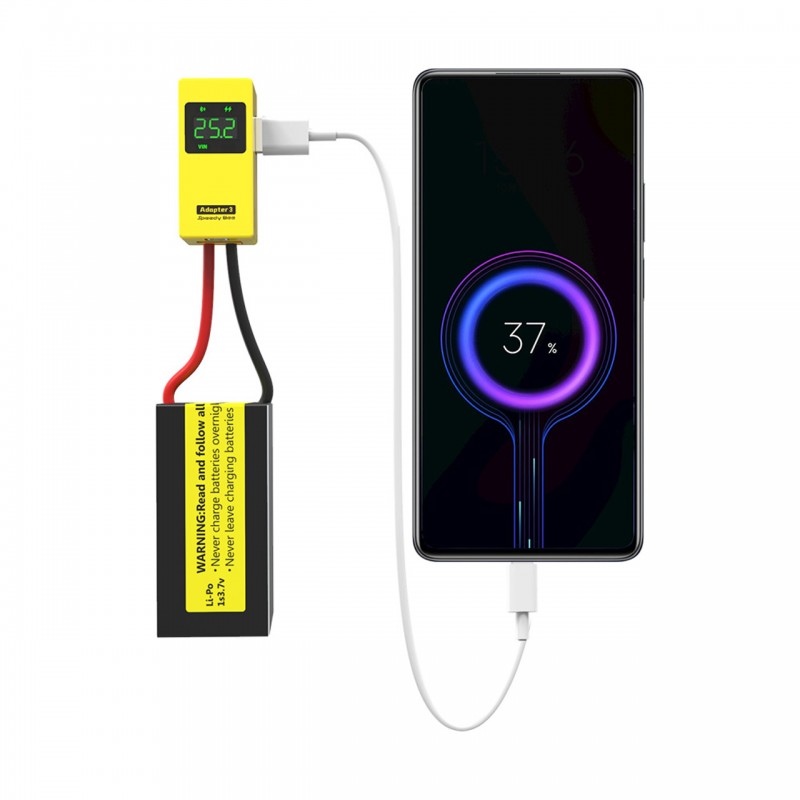

Connect SpeedyBee Adapter 3 to a LiPo battery and
charge your mobile phone* and tablets when you
need them the most. Supports mainstream
QC3.0/AFC/Apple 2.4A (iPhone 6s and above)
and other fast charging protocols with charging
power up to 30W. Complete with over-current
protection, short-circuit protection and
over-temperature protection to protect
your gadgets from unwanted accidents.
charge your mobile phone* and tablets when you
need them the most. Supports mainstream
QC3.0/AFC/Apple 2.4A (iPhone 6s and above)
and other fast charging protocols with charging
power up to 30W. Complete with over-current
protection, short-circuit protection and
over-temperature protection to protect
your gadgets from unwanted accidents.
| Phone Model | Battery Capacity | Battery level after half an hour of charging |
| Mi 11 Ultra | 5000mAh | 52% |
| Samsung S10 | 3400mAh | 49% |
| HUAWEI P40 Pro | 4400mAh | 45% |
| iPhone 11 | 3110mAh | 22% |
*Charging function requires 2S LiPo and above.
Forgot your LiPo checker?
Worry not
Worry not
Connect your 1S - 6S LiPo and the display will
immediately show your battery voltage and the
remaining power with a specific colour code*.
The built-in beeper will alert you if the remaining
power is less than 40% to help extend your
battery lifespan.
immediately show your battery voltage and the
remaining power with a specific colour code*.
The built-in beeper will alert you if the remaining
power is less than 40% to help extend your
battery lifespan.
*GREEN(>80%), WHITE(40-80%) and RED(<40%).
MicroUSB or Type C?
Why not both?
Why not both?
SpeedyBee Adapter 3 comes with a dual-head data cable,
with MicroUSB 2.0 and USB 3.0 Type C connector
on each end. No more worries about connector
compatibility regardless of what flight controller
you are using in your build.
with MicroUSB 2.0 and USB 3.0 Type C connector
on each end. No more worries about connector
compatibility regardless of what flight controller
you are using in your build.
WiFi + Bluetooth =
the best of both worlds
the best of both worlds
Use Bluetooth for quick access to
your firmware configurator,
or switch to Wi-Fi to flash
firmware or download
Blackbox data at a
higher speed.
your firmware configurator,
or switch to Wi-Fi to flash
firmware or download
Blackbox data at a
higher speed.
And all you need
is just one LiPo
is just one LiPo

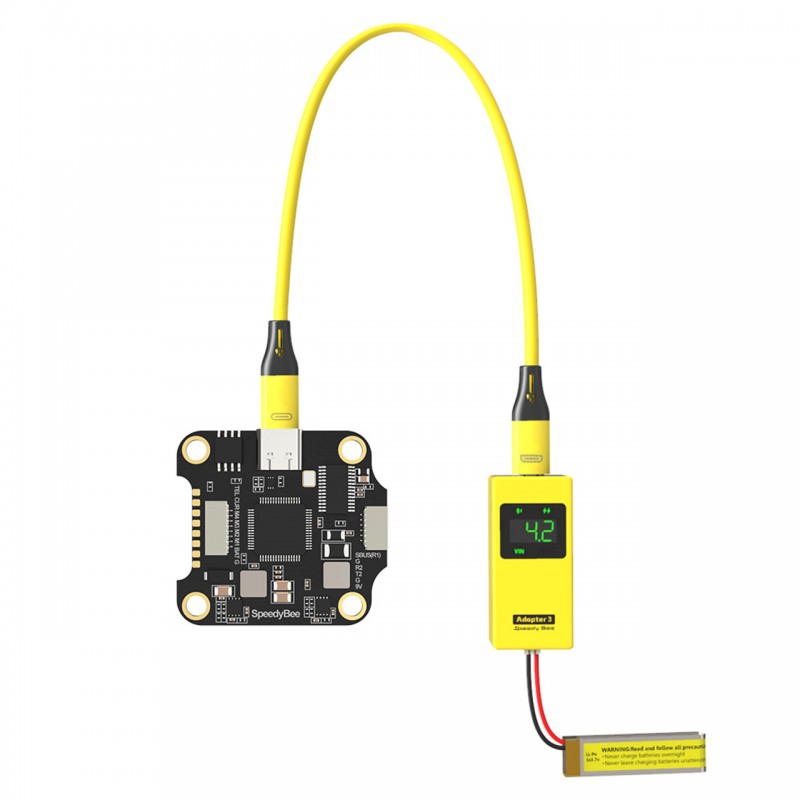

Access the configurator function using any LiPo
batteries available to you. Supports all 1S - 6S LiPo
with PH2.0 or XT60 connectors. Plug in that
beefy 6S 1500mah, or that tiny 1S Whoop battery
(minimum voltage 3.8V), to the
SpeedyBee Adapter 3
you are ready to
access the
configurator.
batteries available to you. Supports all 1S - 6S LiPo
with PH2.0 or XT60 connectors. Plug in that
beefy 6S 1500mah, or that tiny 1S Whoop battery
(minimum voltage 3.8V), to the
SpeedyBee Adapter 3
you are ready to
access the
configurator.
Specifications
| Product Name | SpeedyBee Adapter 3 |
| Power Input Voltage Range | 1-6S(3.8V+ for 1S) |
| Power Input Connector | XT60-Male, PH2.0 male |
| Required Mobile Device System Version | Android 7.0+ | iOS 12.0+ |
| Supported SpeedyBee App Version | V1.6.1 + for iOS | V1.5.6+ for Android |
| Maximum Output Current for flight controllers | 700mA @5V |
| Fast Charging Output interface | USB A Port |
| Minimum Input Voltage for Charging output | 7.4V(2S LiPo) |
| Supported Fast Charging Protocol | • QC3.0/QC2.0 • AFC • FCP • SCP/High SCP • PE2.0/PE1.1 • SFCP |
| Max Fast Charging Current | 3.5A |
| Max Fast Charging Power | 30W |
| Case Material | ABS + PC |
| Liquid Silicone Cable Length | 12.4cm |
| Dimension(Main Body) | 24.8*21.8*53.6mm |
| Net Weight | 35g |

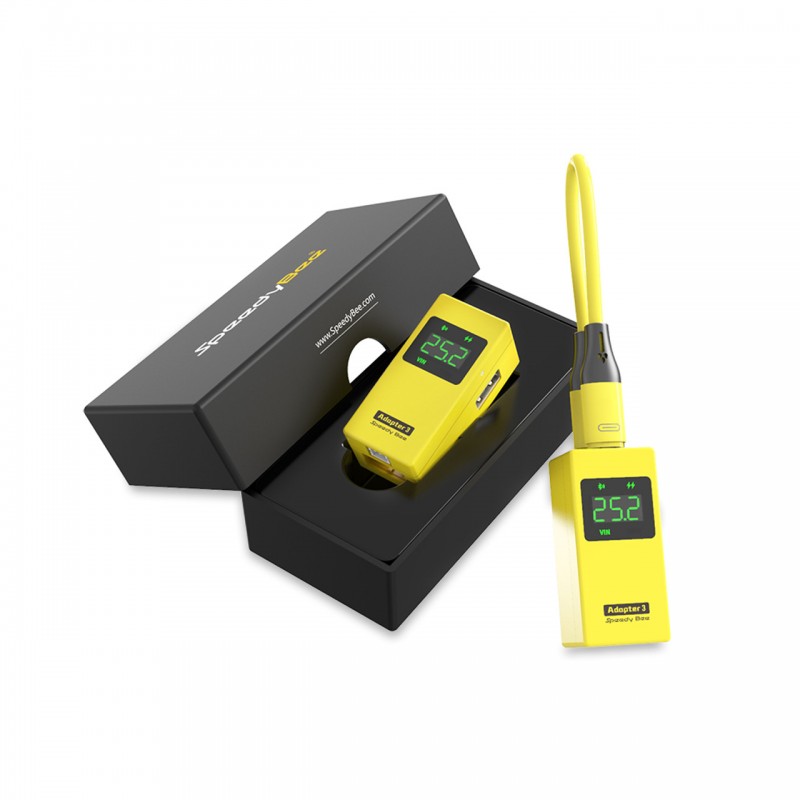

Package
1 x Adapter 3
1 x Manual Card
1 x Manual Card
SpeedyBee Adapter 3 VS SpeedyBee Adapter 2 VS OTG
| Item | SpeedyBee Adapter 3 | SpeedyBee Adapter 2 | OTG |
| Support 1-6S LiPo input | ✔ | ✔ | N/A |
| XT60 and PH2.0 connectors | ✔ | ✔ | N/A |
| BF/INAV/EMU configuration | ✔ | ✔ | ✔ |
| Flight control firmware upgrade | ✔ | ✔ | ✘ |
| Built-in WiFi | ✔ | ✔ | ✘ |
| Built-in Bluetooth | ✔ | ✘ | ✘ |
| Blackbox downloader and analyzer | ✔ | ✘ | ✘ |
| Built-in MicroUSB and Type C connector | ✔ | ✘ | ✘ |
| Fast charging output up to 30W | ✔ | ✘ | ✘ |
| Built-In LiPo Voltage Checker | ✔ | ✘ | ✘ |
