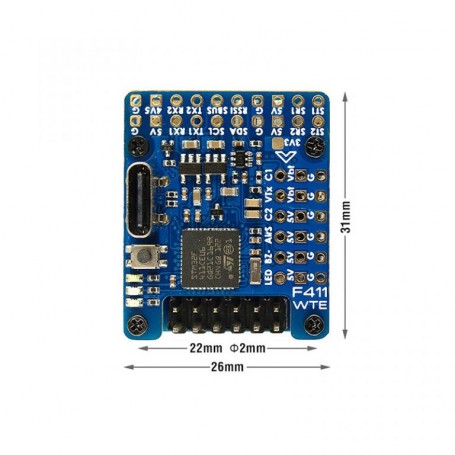

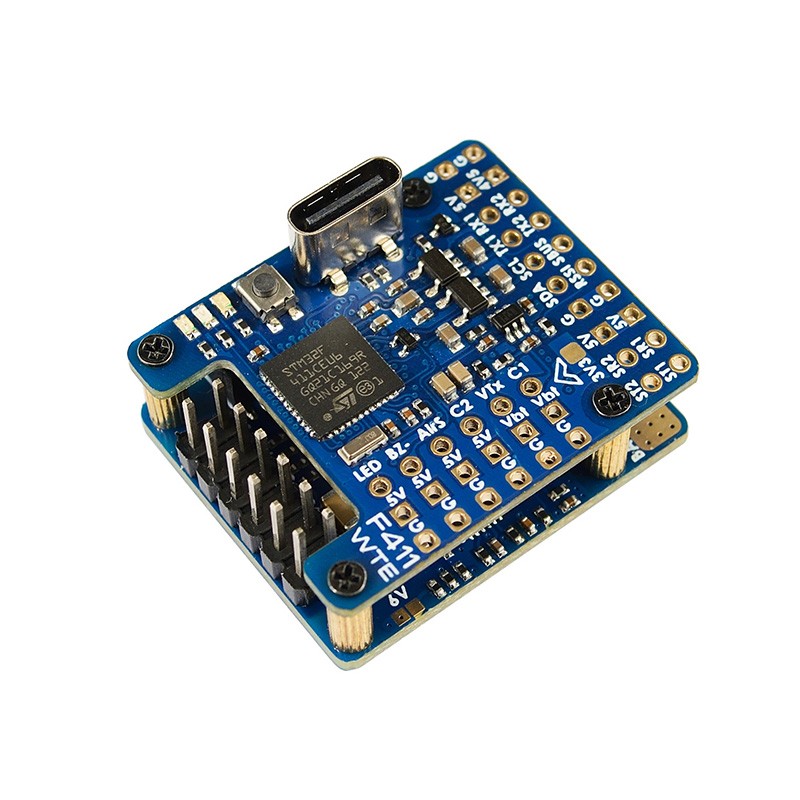

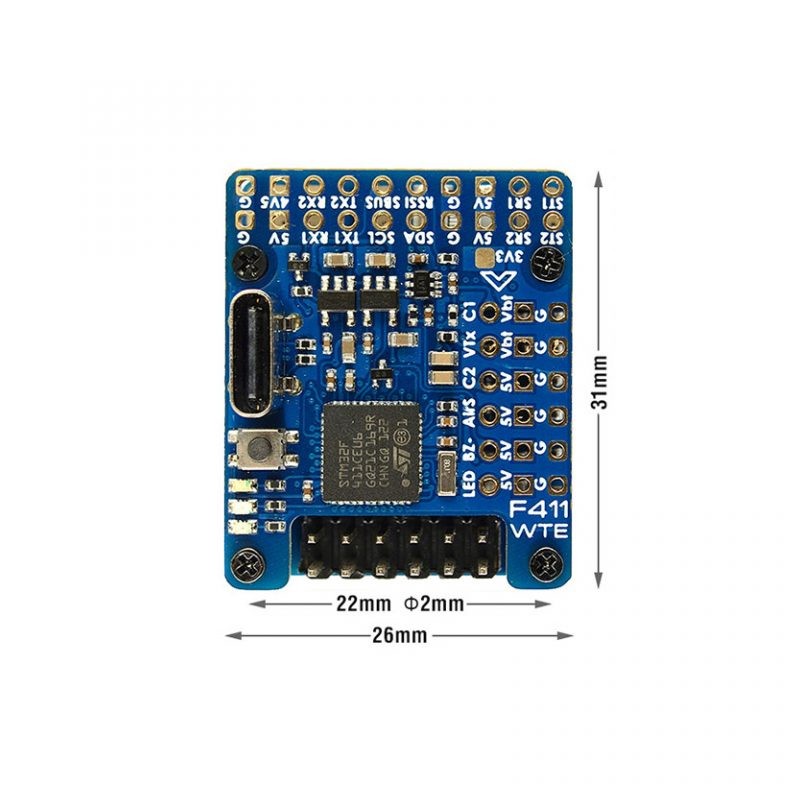

Matek F411-WTE
Compra seguro. Usamos plataformas de pago seguras. Para garantías o reembolsos contáctanos.
Envío rápido. 24/48 horas España. 3-7 días internacional.
Política de devoluciones. Lea nuestros términos y condiciones.
Descripción
FC Specifications:
MCU: 100MHz STM32F411CEU6
IMU: BMI270 (SPI) or ICM42688P
Baro: SPL06-001 (I2C)
OSD: AT7456E (SPI)
Blackbox: No
2x Uarts
2x Full Softserial
6x PWM outputs (2x Motors, 4x Servos)
1x I2C
4x ADC (VBAT, Current, RSSI, AirSpeed)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
Built in inverter on UART2-RX for SBUS input
Switchable Dual Camera Inputs
Vbat power ON/OFF switchable for VTX and camera
PPM receiver: not supported
Power:
6~30V DC IN (2~6S LiPo)
132A Current Sense (Scale 250)
PDB/Current sense resistor: 90A continuous, 132A burst.
BEC 5V 1.5A for FC & Peripherals
BEC Vx 5A for servos, 5V/ 6V option
Vbat for VTX and camera (ON/OFF switchable)
LDO 3.3V 200mA
Battery Voltage Sensor: 1k:10k
Including:
1x FC F411-WTE
Dupont 2.54 pins (Board is shipped unsoldered)
