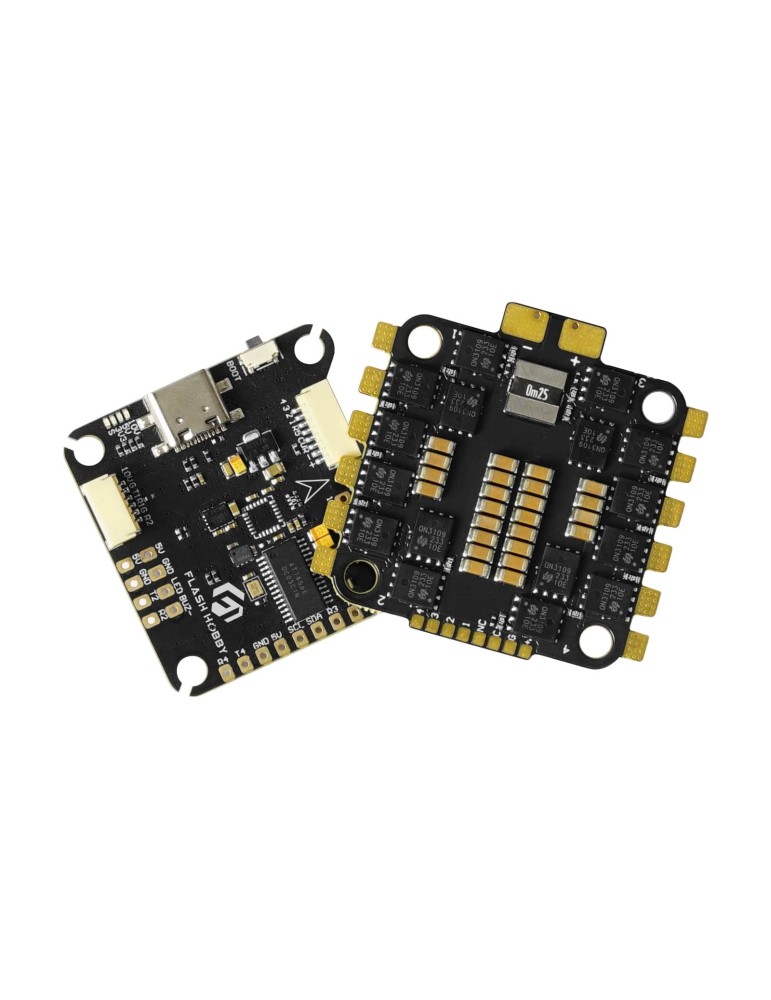

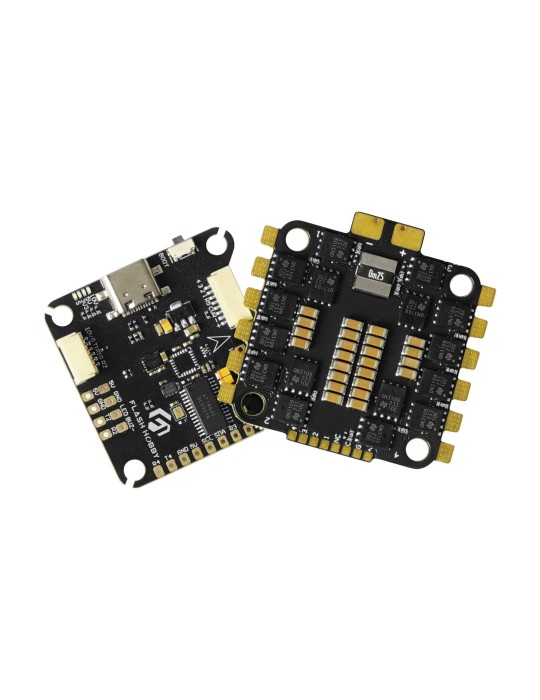

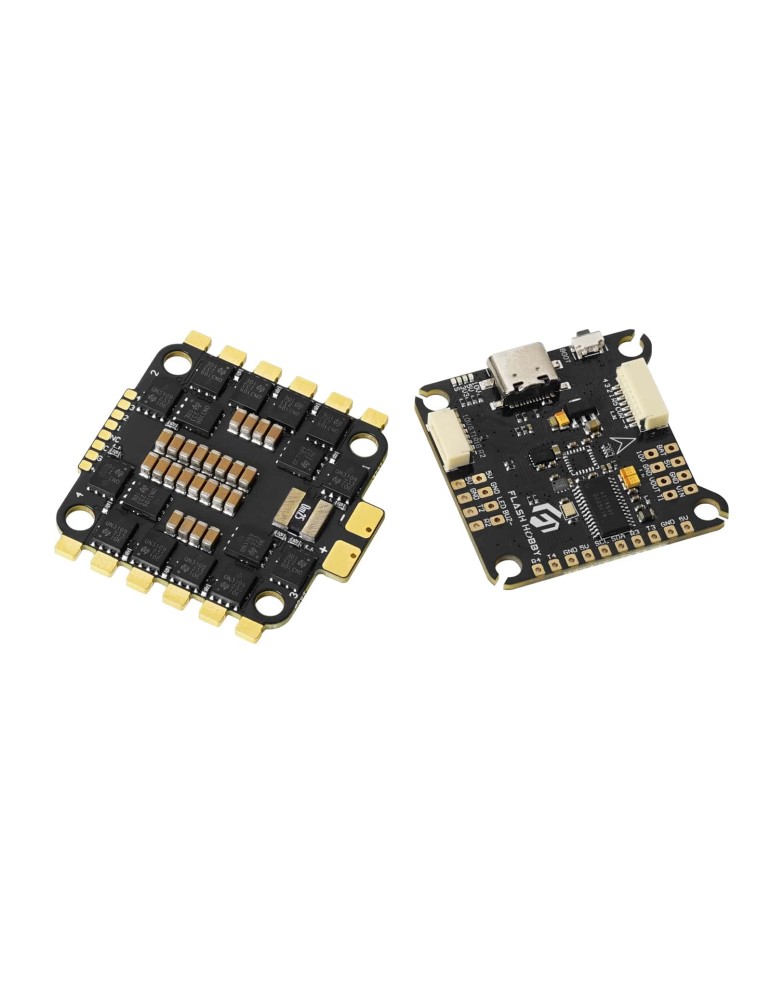

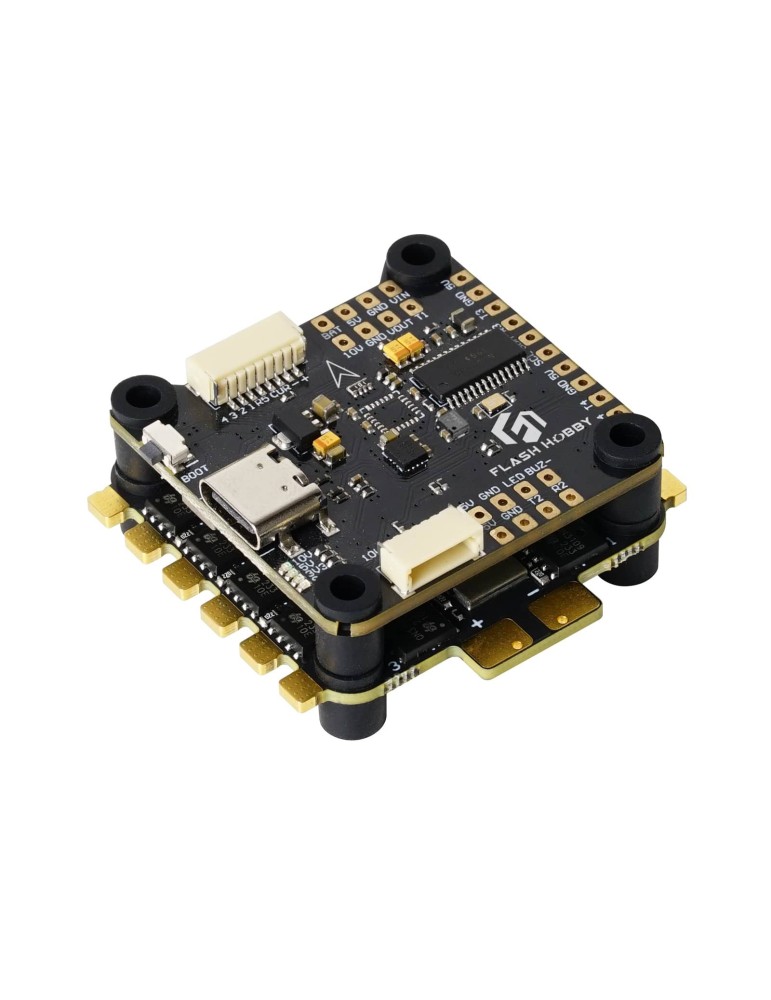

Flashobby F405 FC

Specifications

-Product Name: FLASH HOBBY F405 Flight Controller 30.5x30.5

-MCU: STM32F405

-IMU (Gyroscope): ICM42688

-Port Type: USB Type-C

-Barometer: BMP280

-OSD Chip: BetaFlight OSD with AT7456E chip

-DJI Air Unit Connection Method: Two ways supported: 6-pin connector or direct soldering.

-DJI 6-pin connector: Supported. Fully compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to change any cables.

-Black Box: 16M Black Box

-Current Sensor Input: Supported. For 50A ESCs, set the scale to 180 and the offset to 0.

-3S - 6S Lipo power input (via the 8-pin ESC connector)

-5V BEC output: 5 groups of 5V outputs, the total actual load is 3A

-9V output: 3 groups of 9V outputs, the total actual load is 2.5A

-3.3V output: 1 group of 3.3V outputs, the maximum current is 300mA

-ESC signals M1 - M4

-UART: 6 sets (UART2, UART5, UART3), UART6 (dedicated to SBUS), UART4 (dedicated to ESC telemetry), UART1 (dedicated to VTX data configuration)

-Sb: Debug channel UART6

-ESC telemetry UART R4 (UART4)
