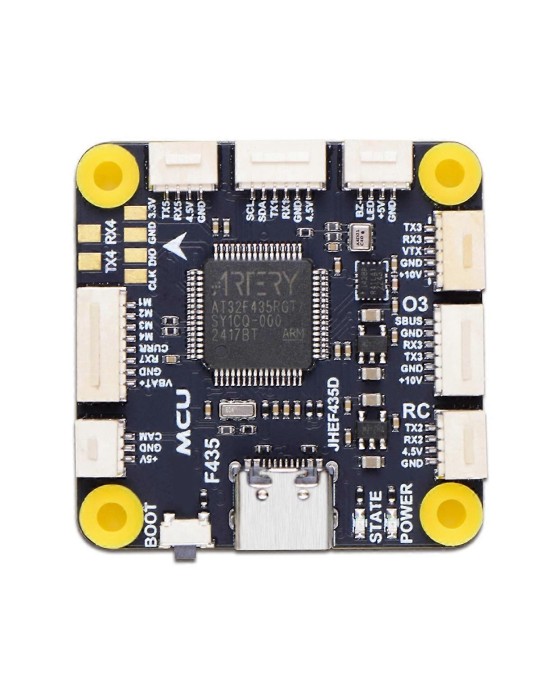

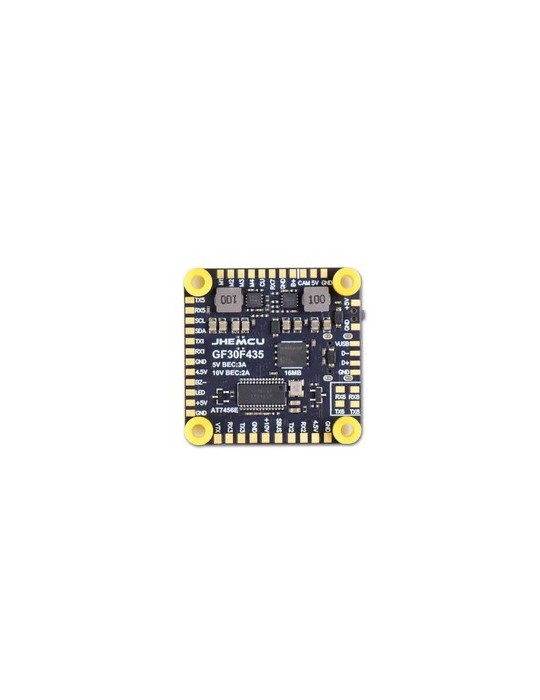

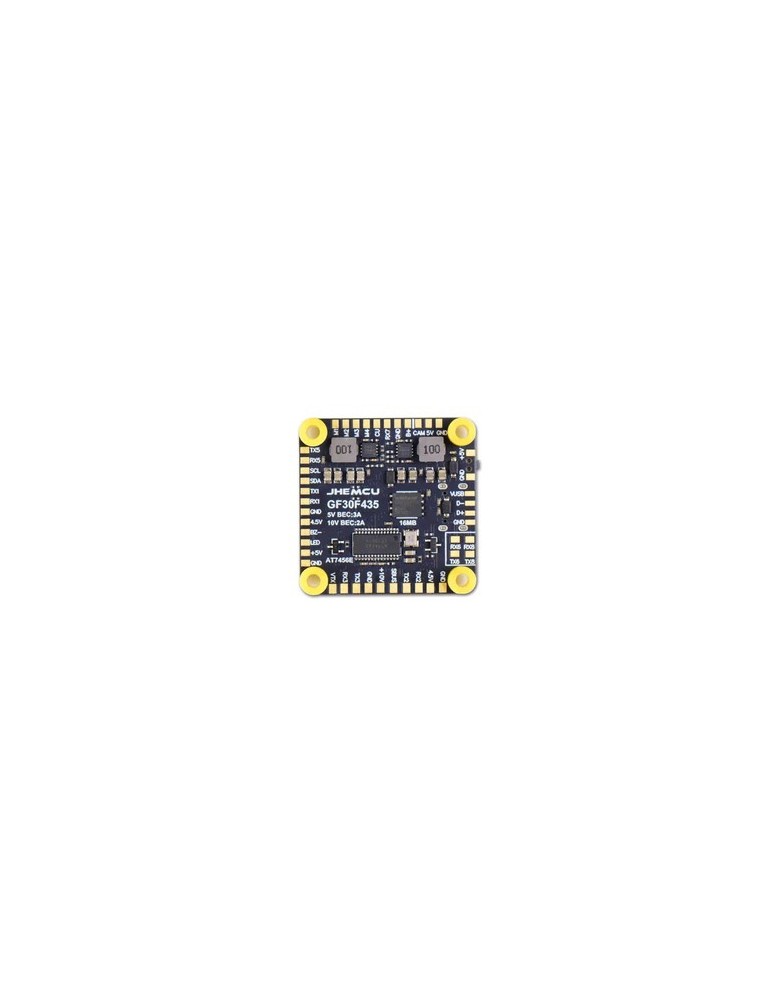

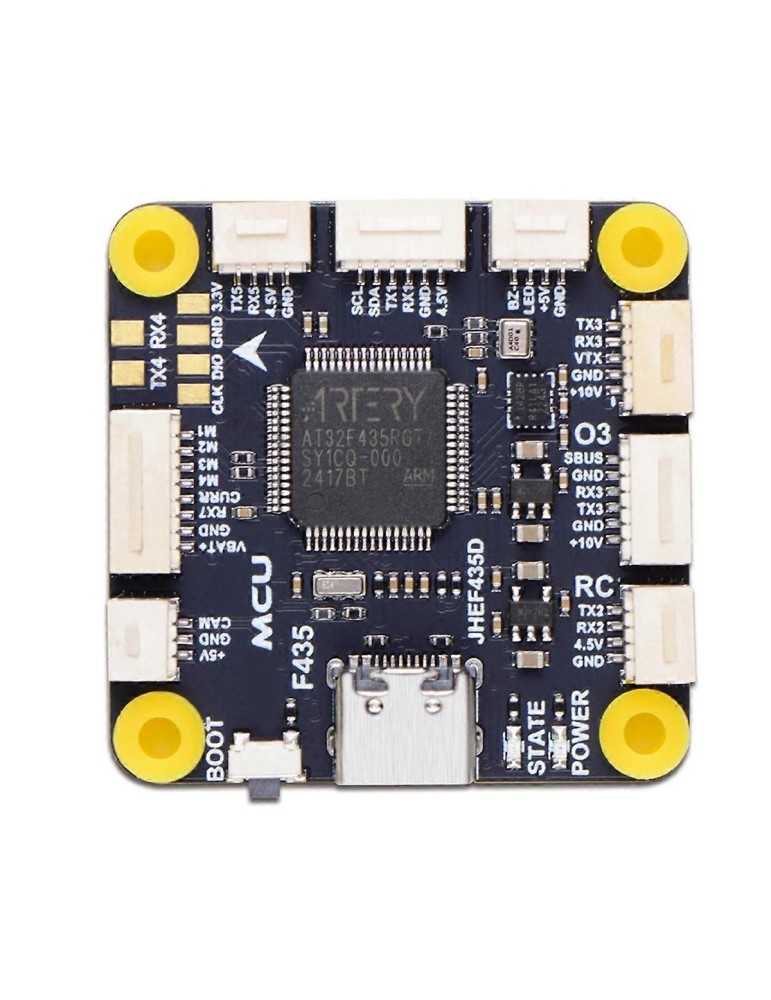

JHEMCU F435 flight controller, perfect for an affordable yet reliable FPV drone build!

JHEMCU
KC1534
€26.26
Tax included
Quantity
Add to Wishlist
Add to Compare
In stock

Drone Parts,  Flight controllers (FC),  FC + ESC Stack
  Buy secure. We use Paypal and other secure platforms.
  Fast delivery. 24/48 hours Spain. 3-7 days international.
  Return policy. Read our terms & conditions.
Description

MCU：AT32F435RGT7

Power supply: 3-6S (11V-26.1V)

Signal Protocol: PWM. (Oneshot125，Oneshot42，Multishot，Dshot150，Dshot300， Dshot600

Sensor: ICM-42688-P

Size: 36*36mm N (30.5mm mounting hole, diameter 4MM)

Firmware version: Betaflight JHEF435

Black box: 16MB

Barometer: SPL06

OSD: Yes

for DJI VTX: Reserved interface, supported

USB: TYPE-C PORT

IIC: Yes

GPS: Yes

Electronic Compass: Yes

UART: 4 channels, UART1, 2, 3, 5. (Note: UART4, 6, and 8 on the flight controller are reserved ports, and are not defined in the firmware for the time being)
