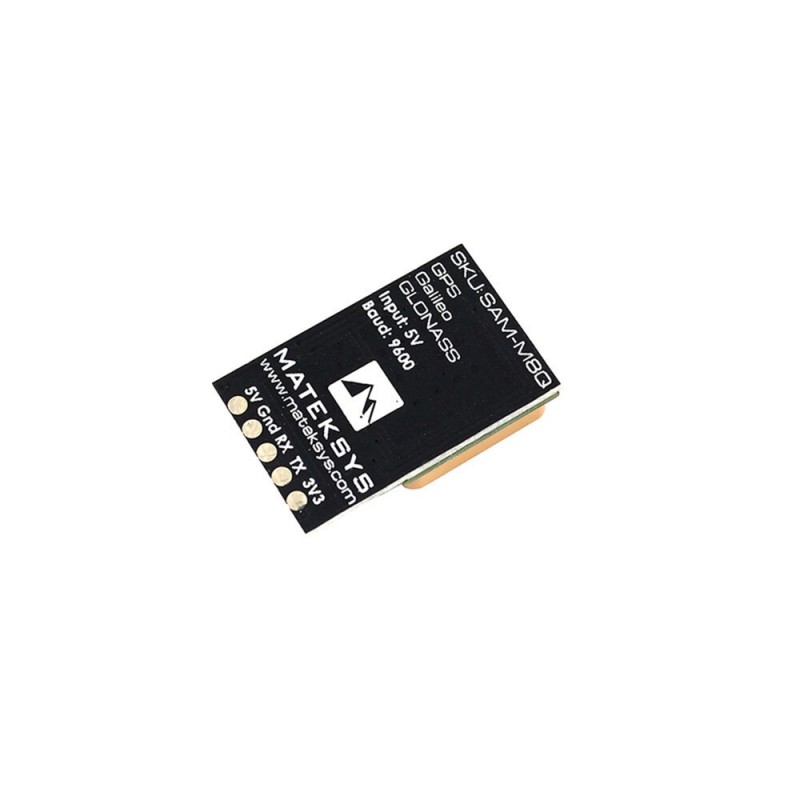

Matek GPS ublox SAM-M8Q

Matek GPS ublox SAM-M8Q

Ublox SAM-M8Q GPS, GLONASS, Galileo, QZSS and SBAS receiver with antenna. For your UAV systems, Robots, RC, FPV or other projects.

€25.58
Tax included
 In stock


Buy secure. We use Paypal and other secure platforms.



Fast delivery. 24/48 hours Spain. 3-7 days international.



Return policy. Read our terms & conditions.

Calculate Shipping Cost

Description

Ublox SAM-M8Q GPS, GLONASS, Galileo, QZSS and SBAS receiver with antenna. For your UAV systems, Robots, RC, FPV or other projects.

Features

  • 72-channel M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/C
  • On-board Ultra low noise 3.3V voltage regulator and RF filter for noise blocking
  • Features an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunity
  • Build-in embedded GNSS patch antenna, low power consumption
  • The 15 x 15 mm patch antenna provides the best compromise between the performance of a Right Hand Circular Polarized (RHCP) antenna and a small size to be integrated in any design.
  • Max navigation update rate
    Single GNSS up to 18 Hz
    2 Concurrent GNSS(GPS & GLONASS) up to 10 Hz
  • Horizontal position accuracy(GPS & GLONASS) 2.5 m CEP
  • Velocity accuracy 0.05m/s
  • Cold start 26 s
    Aided cold starts: 2 s
    Hot start 1 s
  • Sensitivity
    Tracking & Navigation: –165 dBm
    Reacquisition: –158 dBm
    Cold start: –146 dBm
    Hot start: –155 dBm
  • Input voltage range: 4~5.5V
  • Power consumption: 40mA
  • Uart (Tx,Rx) interface
  • Battery for HOT module start

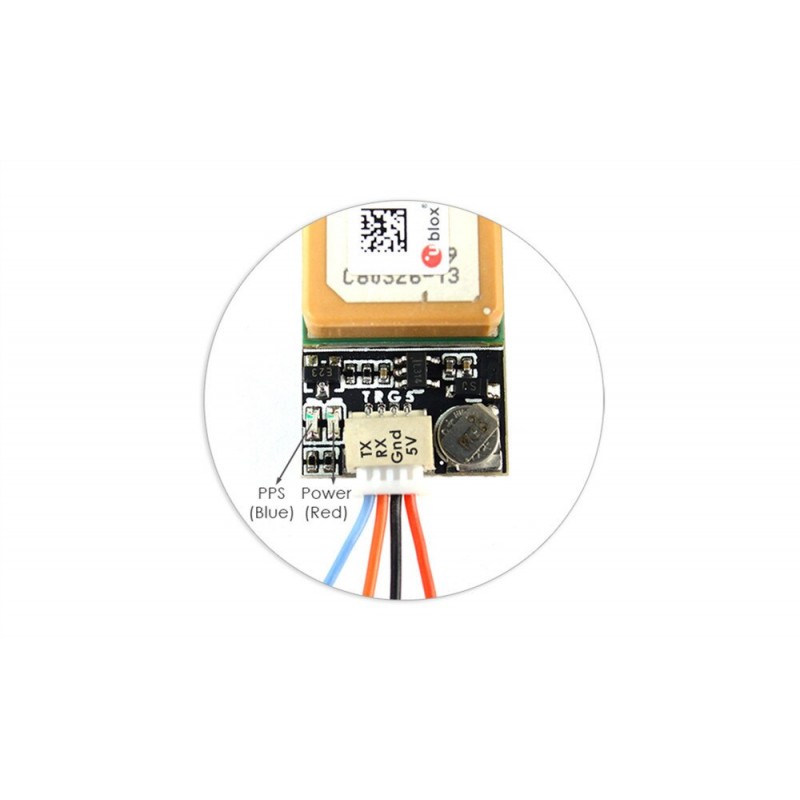

  • Power LED(Red) & Time pulse LED(Blue)
  • Baudrate 9600 default

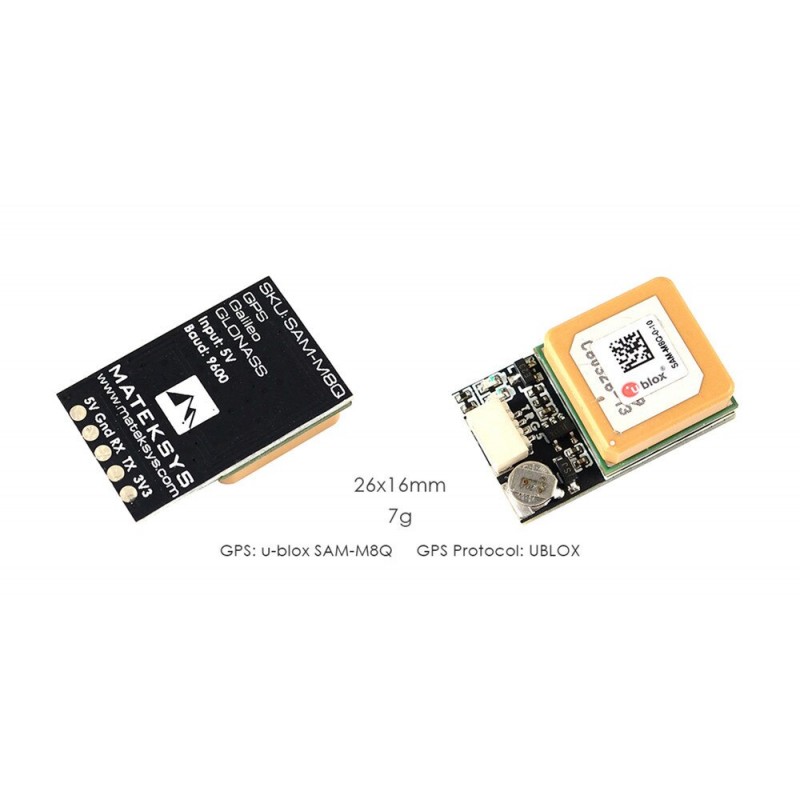

  • Dimensions: L26 x W16 x H7.5 mm
  • Weight: 7 gram
  • Can be easy mounted in your case by double sided tape
  • Supported by INAV/Betaflight/Ardupilot, ect.

Including

  • SAM-M8Q module, 1 pc
  • SH1.0-4P 15cm silicon wire, 1 pc
  • Transparent PVC Heat-shrink tube

Tips

  • GPS, GLONASS, SBAS, QZSS are enabled by default
  • u-blox M8Q series has no external flash memory
  • Blue PPS LED blinking(1Hz) means 3D fixed
  • update rate 1Hz & baudrate 9600 default
  • Baud 9600~115200 supported by INAV
  • update rate 5Hz with INAV UBLOX Protocol
  • update rate 10Hz with INAV UBLOX7 Protocol
  • BF doesn’t support GPS position hold and RTH,  GPS Rescue mode is supported by BF3.5 or last.
  • The scratches on ceramic antenna are the result of tuning the antenna by ublox. Placing small nicks in the centre of the long edges, or corners, brings them into spec.
