Matek GNSS & Compass, M10Q-5883

The MATEKSYS M10-5883 supports GNSS (GPS, GLONASS, Galileo, and BeiDou), offers great RF sensitivity, will help you pick up the best signals, and can improve the dynamic position accuracy with small antennas or in non-line-of-sight scenarios.

€37.15

Tax included

Quantity

Subscribe To When In Stock

You have successfully subscribed to this product

Buy secure. We use Paypal and other secure platforms.

Fast delivery. 24/48 hours Spain. 3-7 days international.

Return policy. Read our terms & conditions.

Calculate Shipping Cost

Description

M10-5883 uses multi-constellation GNSS powered by u-blox MAX-M10S.
MAX-M10S supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. u-blox Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy with small antennas or in non-line-of-sight scenarios. For maximum sensitivity in passive antenna designs, the MAX-M10S module integrates an LNA followed by an SAW filter in the RF path.
More details about the MAX-M10S, pls check out u-blox MAX-M10S page

Specifications

GNSS u-blox MAX-M10S (GPS, GLONASS, Galileo and BeiDou)
Magnetic Compass QMC5883L
Patch antenna 18*18*4mm

Input voltage range: 4~9V (5V pad/pin)
Power consumption: 13mA
UART baudrate: 9600 default
Operating Temperatures: -20~80 °C
UART(TX, RX) interface for GNSS MAX-M10S
I2C(DA, CL) interface for Compass QMC5883L

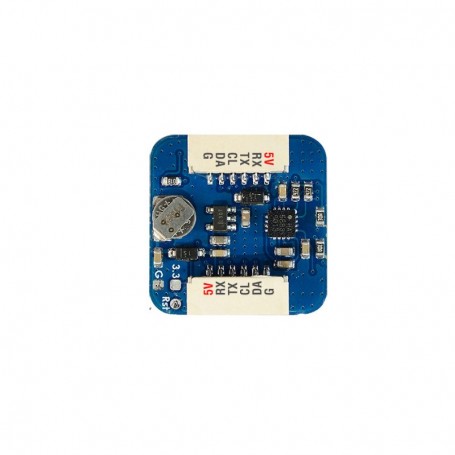

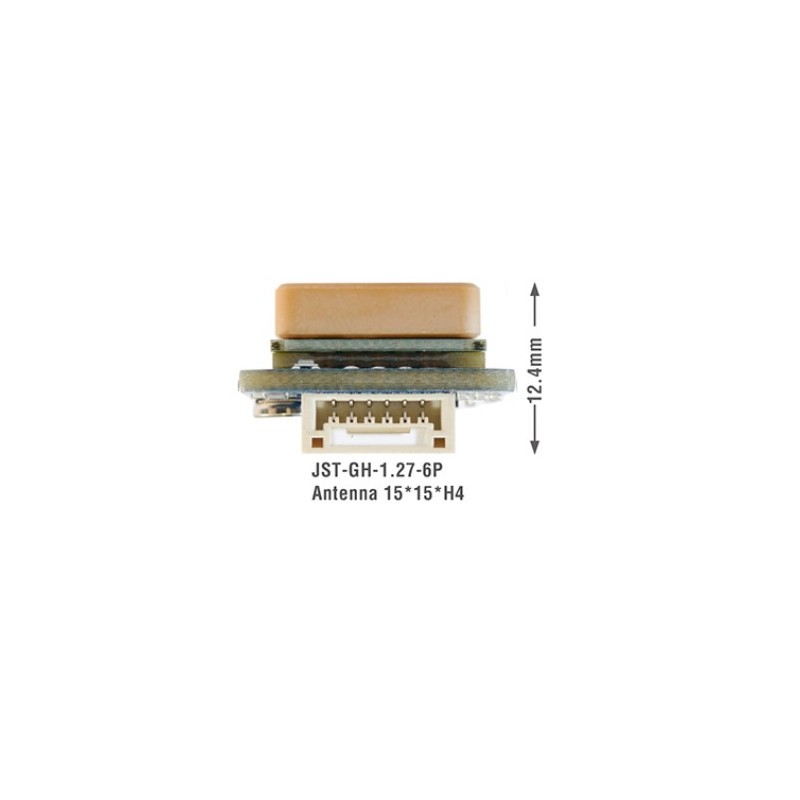

JST-GH-6P connector (SM06B-GHS-TB)

GNSS PPS LED, Green. (Solid ON after powering on M10-5883, blinking(1Hz) when GNSS get 3D fix)

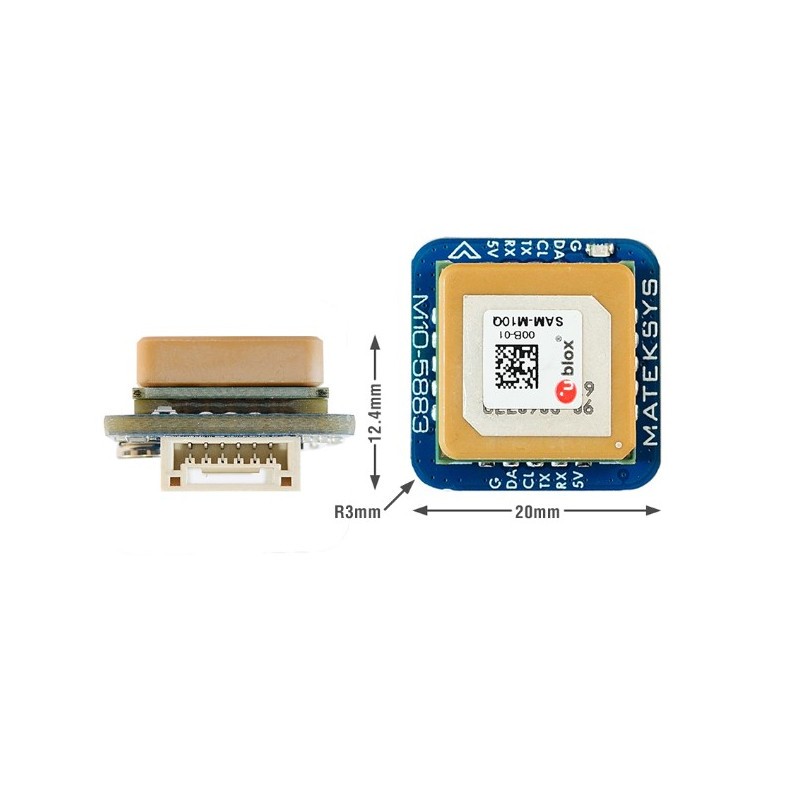

23mm*23mm*10mm
9g
M10-5883_step.zip

Includes

1x M10-5883

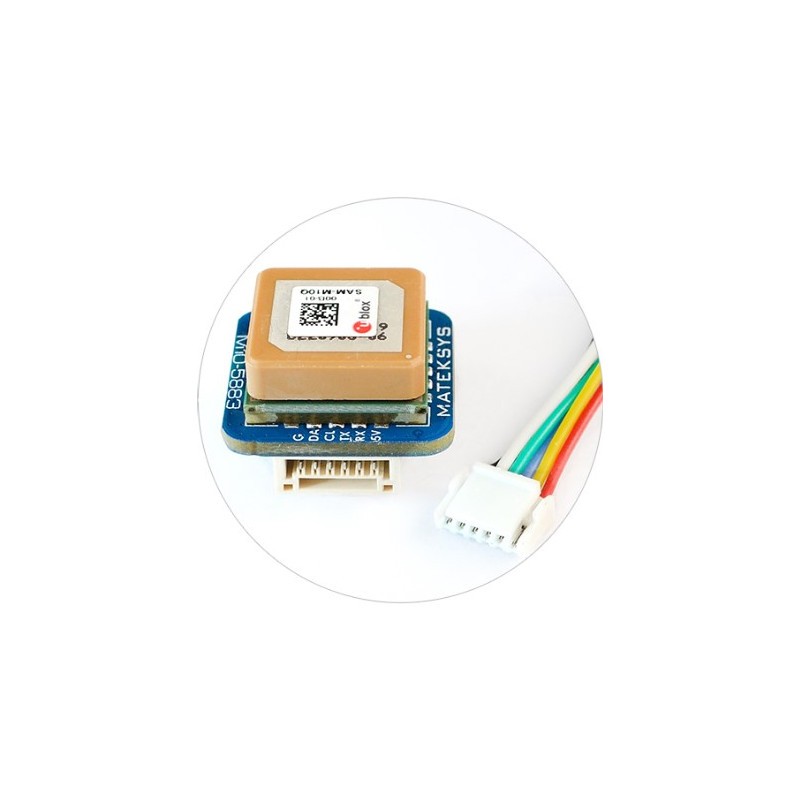

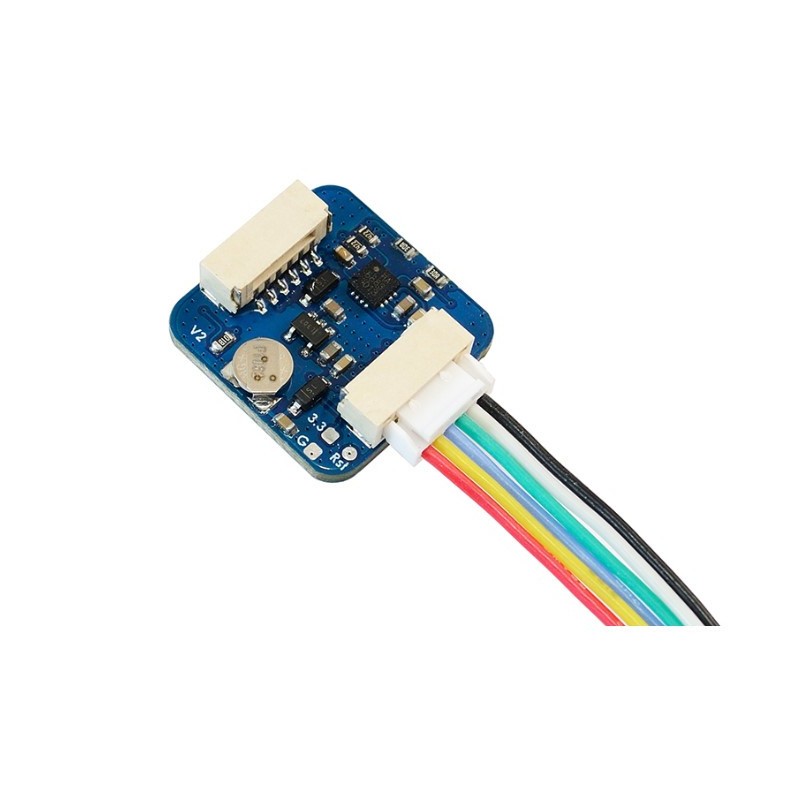

1x JST-GH-6P to JST-GH-6P 20cm silicon wire

Wiring and settings

M10-5883 5V to Flight controller 4~9V
M10-5883 RX to Flight controller UART_TX
M10-5883TX to Flight controller UART_RX
M10-5883 CL to Flight controller I2C_SCL
M10-5883 DA to Flight controller I2C_SDA
M10-5883 G to Flight controller GND

Tips and Notes

Compass Alignment(Arrow forward and flat mounting): Tilting the magnetometer is strongly discouraged !
INAV/BetaFLight: CW 270° Flip when flight controller arrow is facing forward also.
Ardupilot/Mission Planner: Rotation None.
Protocol: Ublox 5Hz or NMEA 1Hz

——————–

INAV 5.0.0, Betaflight 4.3.0, ArduPilot 4.1 or newer is required.
The default configuration on MAX-M10S with ublox FW 5.1 is concurrent reception of GPS, Galileo, and BeiDou B1I with QZSS and SBAS enabled. GLONASS is disabled by default.
Beidou B1I (1561.098 MHz) and GLONASS can’t be enabled at the same time. Beidou B1C (1575.42 MHz) and GLONASS can be enabled at the same time. Flight controller firmware(INAV, Betaflight, ArduPilot) don’t support enable Beidou B1C for now. so MAX-M10S can’t receive GLONASS when it works with flight controller(fw INAV, Betaflight, ArduPilot) .
with GPS, Galileo, and BeiDou B1I with QZSS and SBAS enabled, MAX-M10s can receive more than 30 Sats with HDOP down to 0.55.
Start with u-blox GNSS FW3.01, timepulse is aligned with UTC time and that time is set valid only after leap second is downloaded. That could take up to 12.5 min. Probably PPS LED will not blink immediately after GPS has 3D fixed.

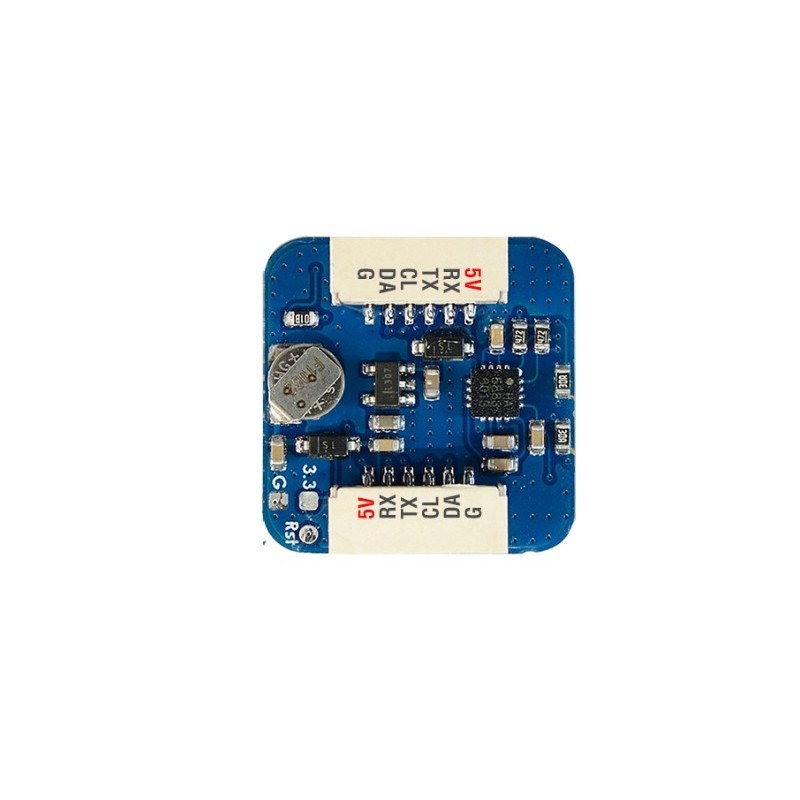

The M10-5883 provides the ability to reset the receiver. Bridging “RST” pad to Ground for at least 100 ms will trigger a cold start. RESET will delete all information and trigger a cold start. It should only be used as a recovery option.
