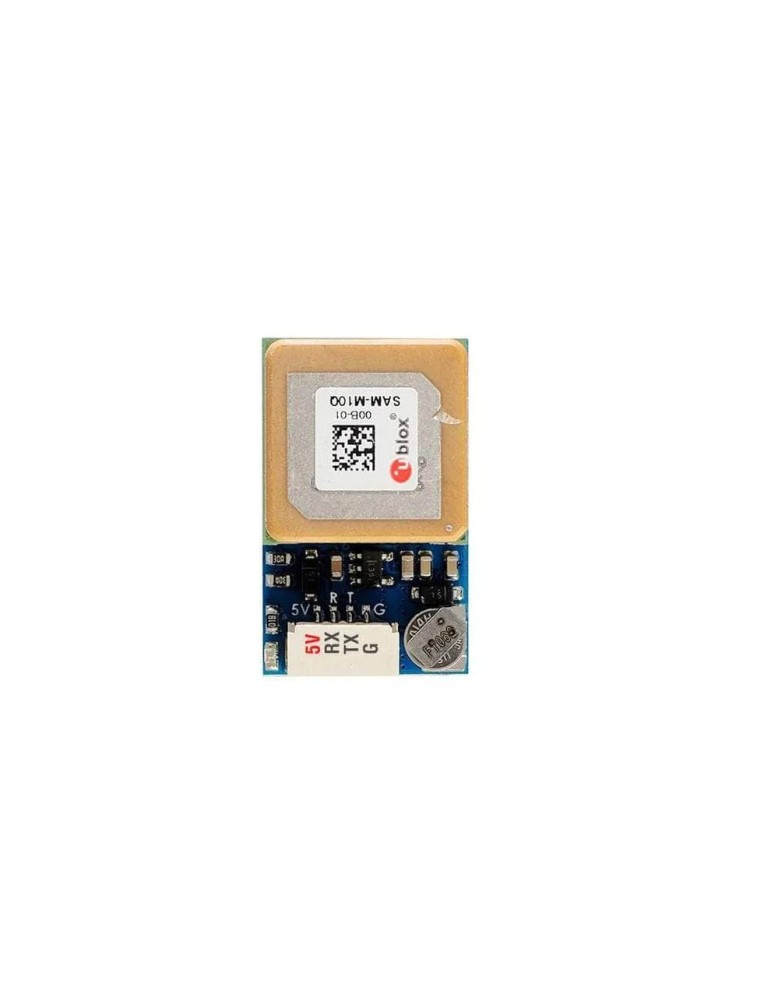

Matek GNSS-M10Q
Features
Simple design-in with no RF expertise required
Less than 38 mW power consumption without compromising GNSS performance
Maximum position availability with 4 concurrent GNSS reception
Advanced spoofing and jamming detection
Pin-compatible with previous SAM-M8Q

GNSS u-blox SAM-M10Q-00B (GPS, GLONASS, Galileo and BeiDou)
-No Magnetic Compass built-in
-Patch antenna 15 x 15 x 4mm
-Input voltage range: 4~9V (5V pad/pin)
-Power consumption: 10mA
-UART baudrate: 9600 default
-Operating Temperatures: -20~80 °C

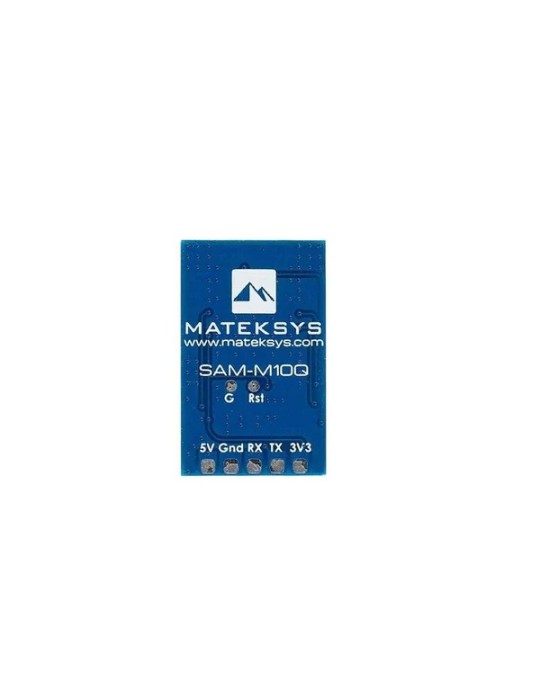

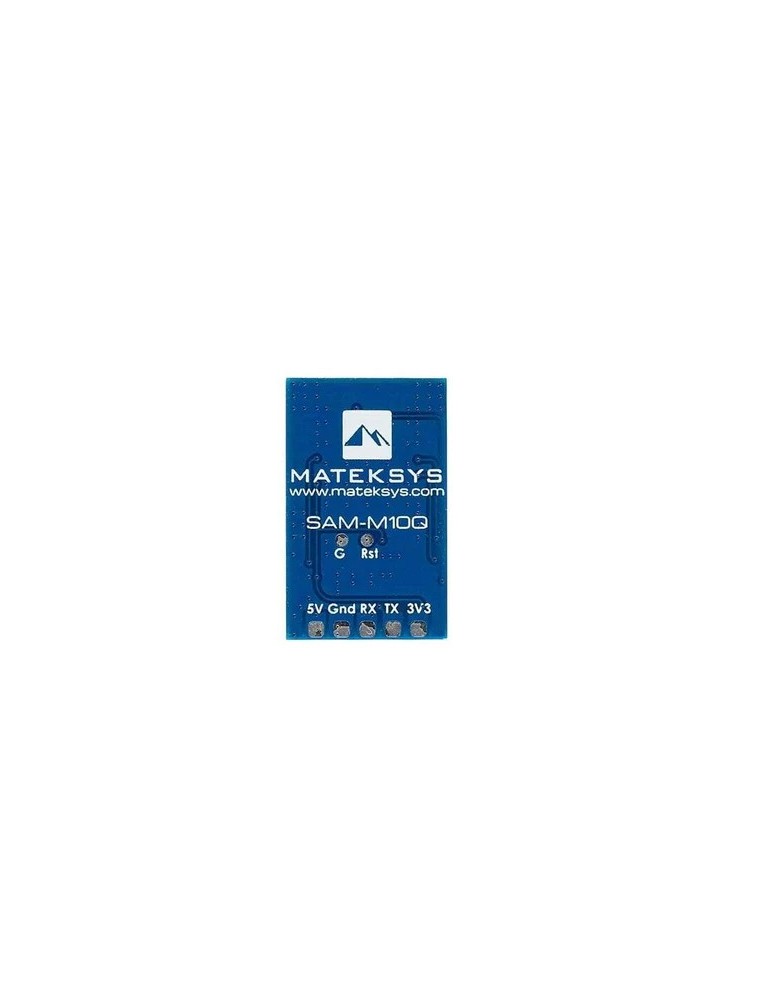

-UART(TX, RX) interface for GNSS SAM-M10Q-00B
-JST-GH-4P connector (SM04B-GHS-TB). 1.27mm pitch
-GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
-Protocol: UBX(u-blox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz

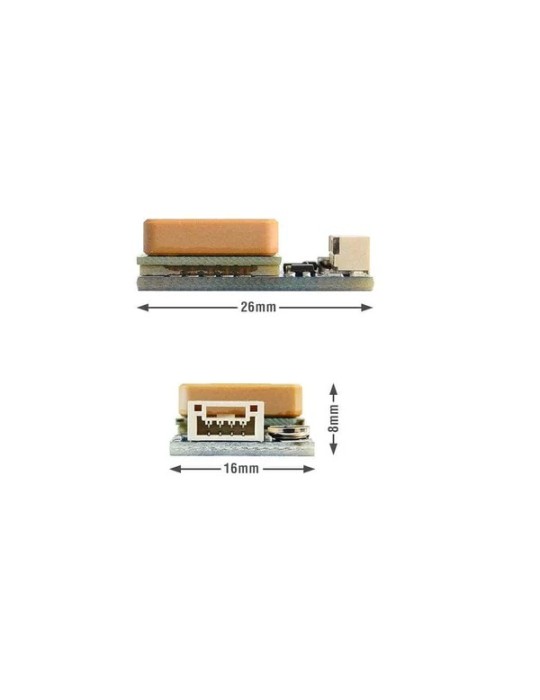

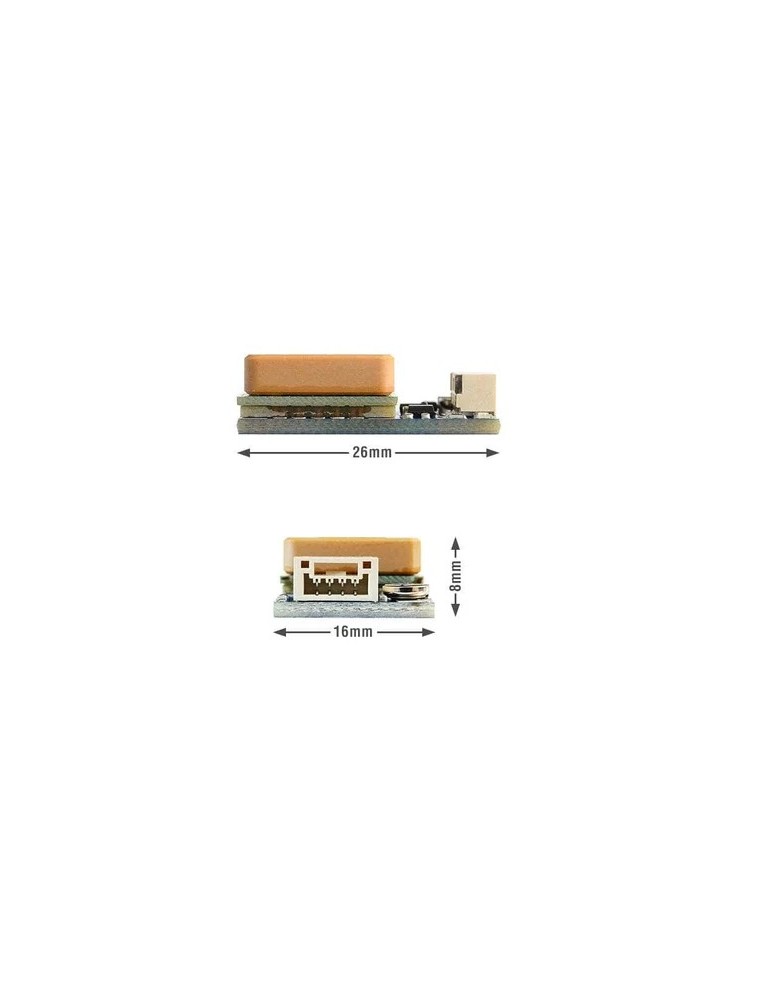

-26mm x 16mm x 8mm
